13. STEERING/FRONT WHEEL/SUSPENSION
13-8

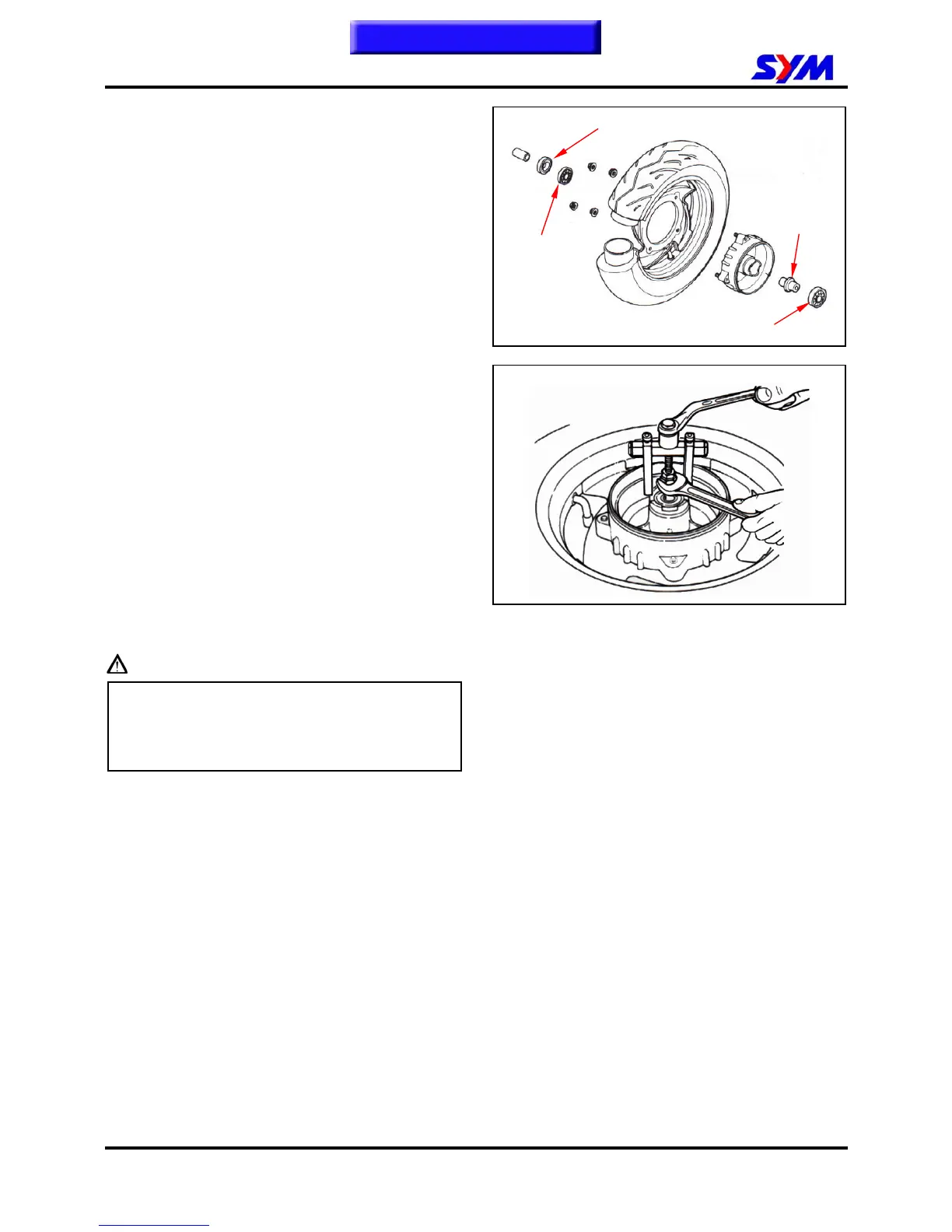

Remove wheel hub from wheel rim after 4 nut
removed.
Remove dust seal, bearing and side collar.
Special tools
Inner bearing puller (SYM-6204020)
Installation
Fill out the block of bearing by grease.
Drive the left bearing and install the dist. collar.
Install the right bearing.
Caution
y Carefully install the bearing in correct and
evenly.
y Bearing outer face should be faced up as
bearing installation.
Dust seal
Bearing
Dist. collar
DRUM TYPE
Bearing
This chapter Contents

Sym Fiddle 50 Specifications

General

Displacement	49.5 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Fuel Capacity	6.5 liters
Dry Weight	95 kg
Engine Type	4-Stroke
Transmission	CVT
