13. STEERING/FRONT WHEEL/SUSPENSION
13-9

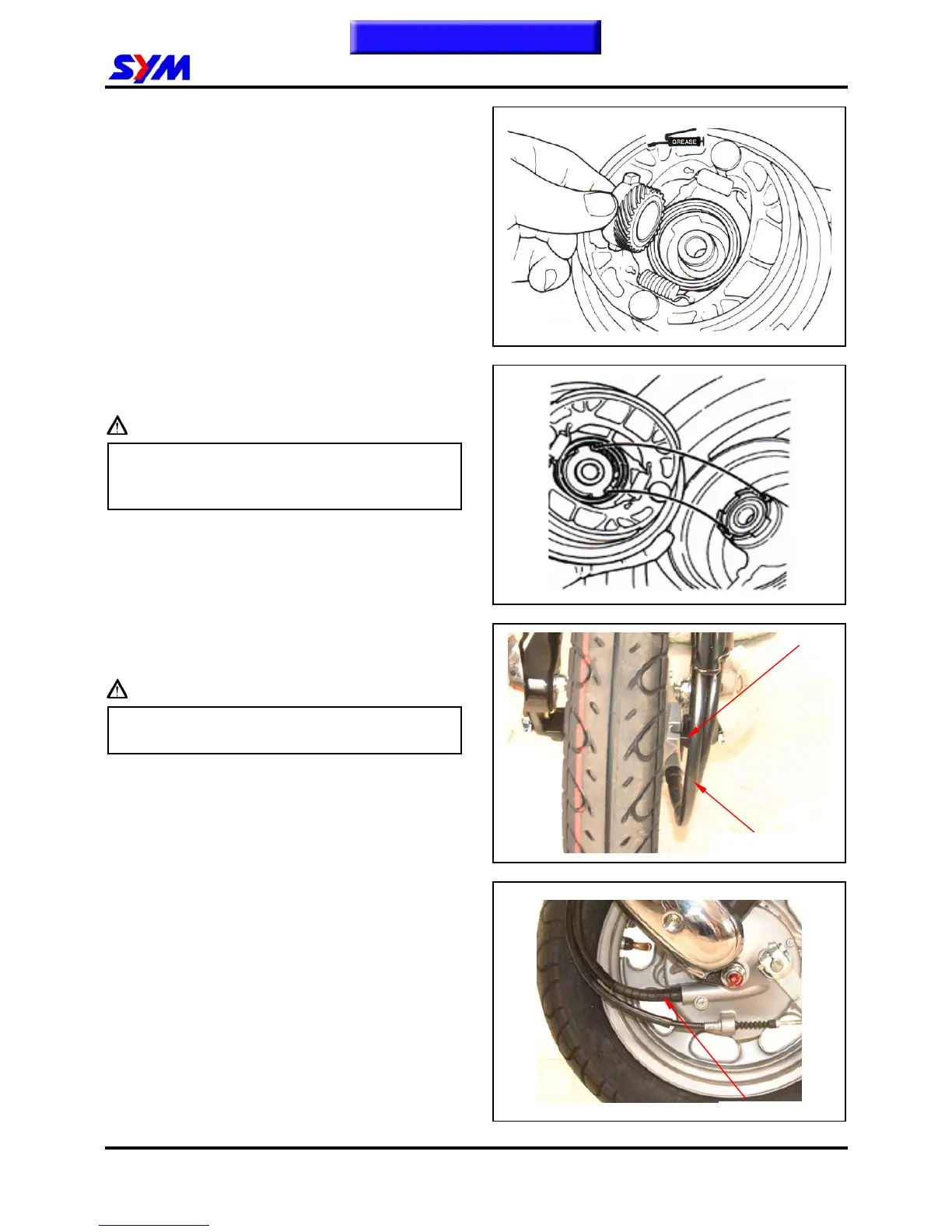

Lubricate the speedometer gear with grease and
install the gear into the wheel hub.
Align the flange part on the speedometer gear
with the slot of wheel hub.
Caution
Contaminated brake lining will reduce brake
performance so the brake lining, brake drum
and disc must be free of grease.
Apply with grease onto the dust seal.
Install the dust seal and side collar.
Place the front wheel between the front shock
absorbers.
Caution
Align the brake panel groove with the stopper
flange.
Insert the wheel axle into the wheel and the
install the wheel axle nut.
Tighten the nut to specified torque.
Torque value: 5.0~7.0kgf-m
Connect the speedometer cable to the
speedometer gear.
Stopper
Speedometer cable
Speedometer cable
