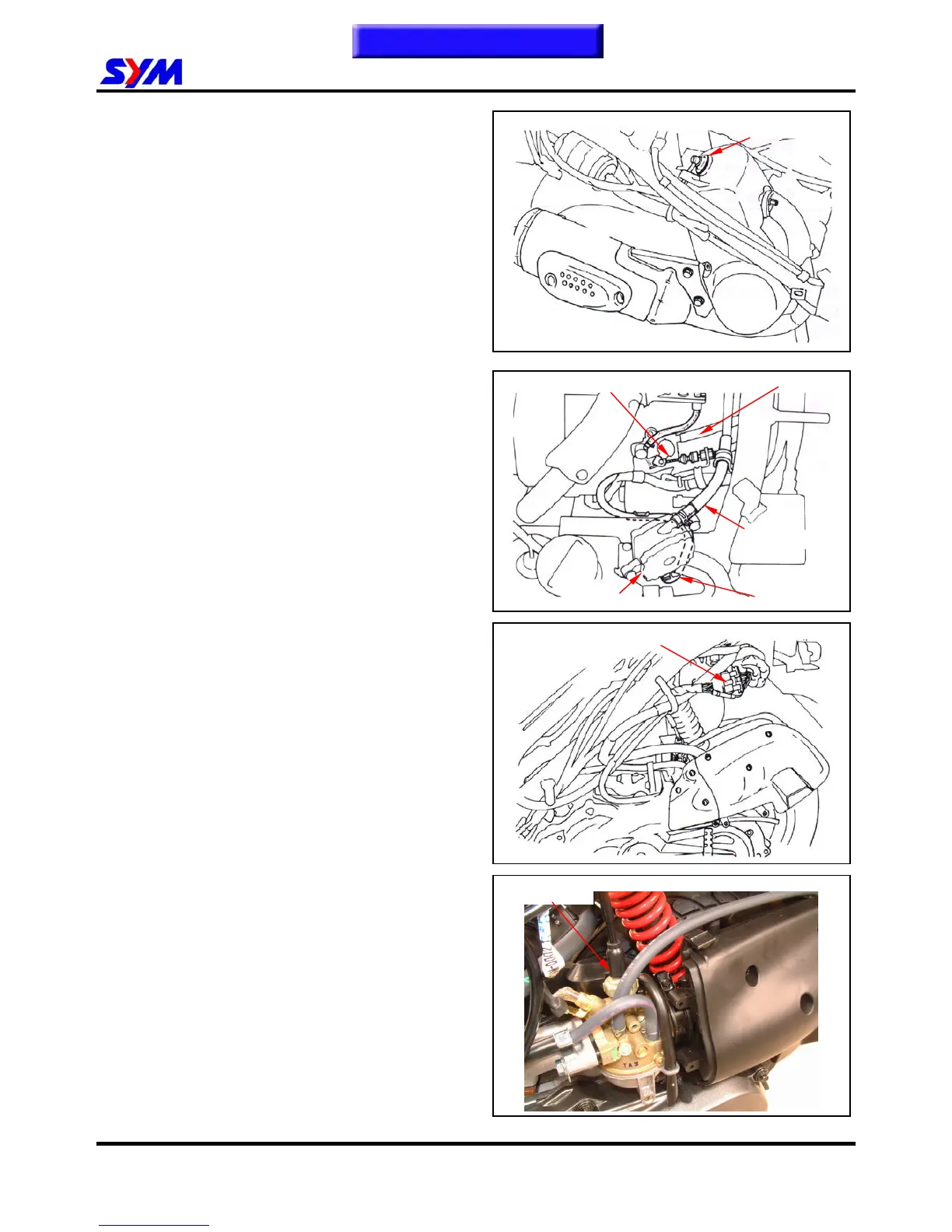

Sym Fiddle 50 User Manual

4. ENGINE REMOVAL
4-3
Engine removal
Remove body cover.
Remove the spark plug cap from the spark plug
section.
Remove the fuel output and the vacuum tubes
from fuel pump.
Remove the oil control cable from oil pump.
Remove the oil tube from oil pump and then clip
the tube.
Remove the wire connectors of auto by starter
and AC.G.
Remove the upper parts and cable of the
carburetor from its upper side.
Remove the vapor emission vacuum tube from
carburetor intake manifold.
Oil control cable Oil tube
Fuel pump
Vacuum tube
Fuel output tube
Wire connector
Spark plug cap
This chapter Contents
Upper parts
