4. ENGINE REMOVAL
4-4

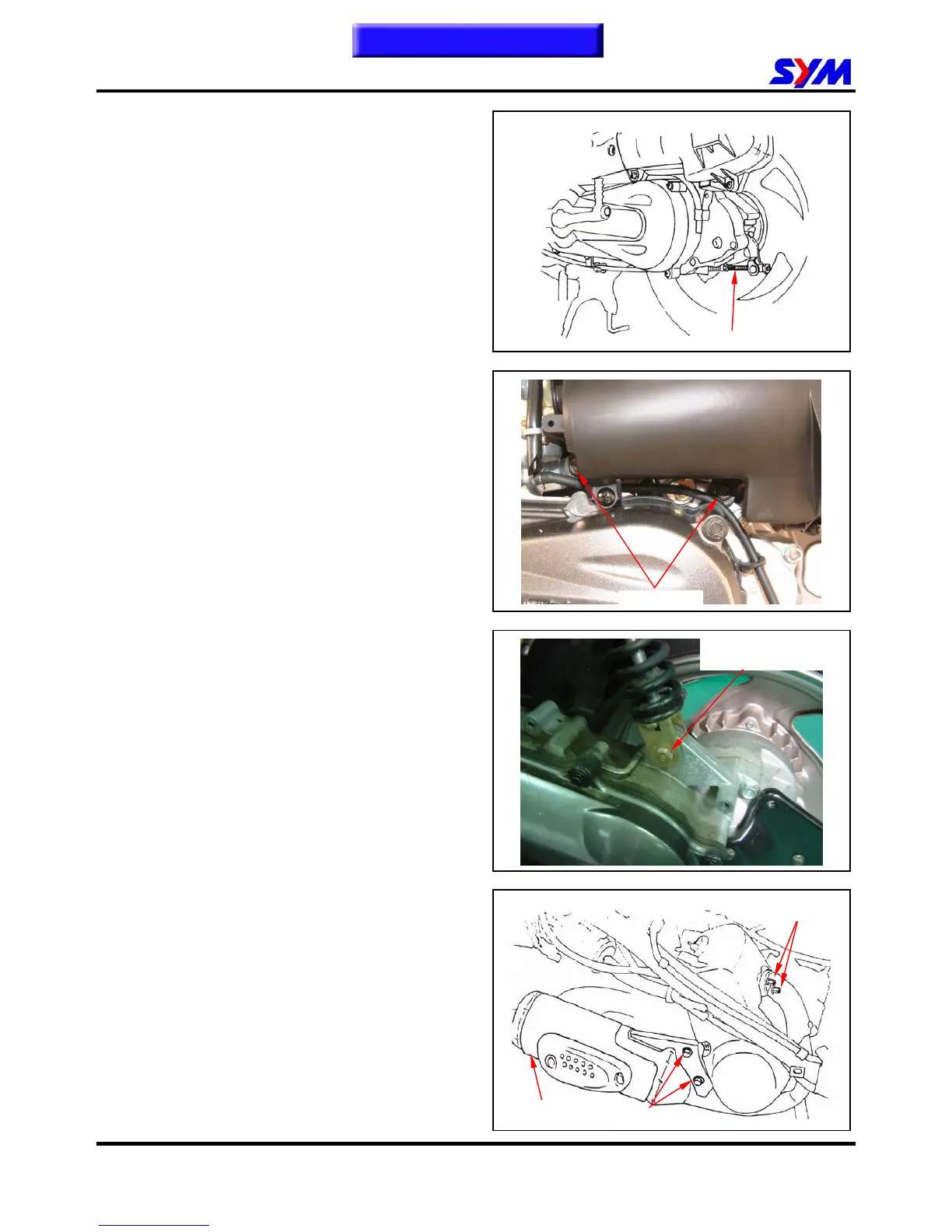

Remove rear brake cable from engine rear-lower
side.
Remove air cleaner mounting bolts. (2 bolts)
Support the engine and then remove shock
absorber lower mounting bolt.
Remove two exhaust pipe connection nuts.
Remove two bolts beside fan cover and exhaust
pipe.
Mounting bolt
Shock absorber lower
mounting bolt
Brake cable
Exhaust pipe
Bolt
Connection nut
