Design Integration Considerations
Mechanical Considerations
30 X72 Desigers Reference and Users Guide 097-10603-01 Rev. A – November 2004
Standard Edge Board
The Standard Edge Board version (PN 106569-003) is intended for implementations
where the Edge Board is connected directly into the system board by soldering
directly to the PCB or plugging into a socket provided by the user (see example
below). The Edge Board achieves its mechanical stability from the direct
connection.

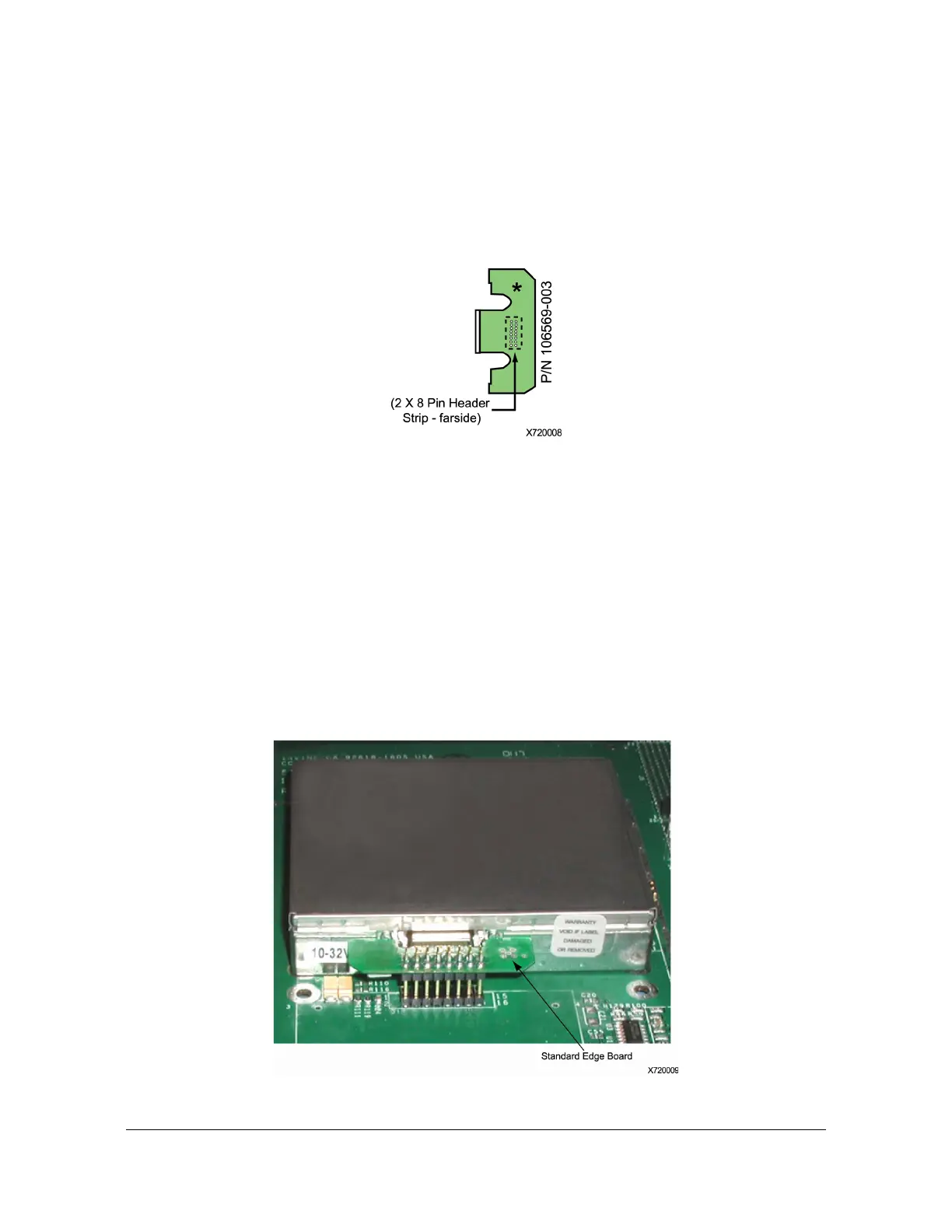

Figure 2-3 Standard Edge Board
The Standard Edge Board includes the following:
390 pf capacitor
10 resistor
15 µF capacitor
Pad for coaxial connector for sine output
Soldered 2 x 8 pin connector
Adapter for connection to PCB
Figure 2-4 Standard Edge Board Mounting Example
