097-10603-01 Rev. A – November 2004 X72 Desiger’s Reference and User’s Guide 31
Design Integration Considerations
Mechanical Considerations
The Anchored Edge Board
The Anchored Edge Board (PN 106569-002) can be used in applications where the
Edge Board is not plugged into a PCB and does not have a solid electrical
connection such as a soldered header that can keep the Edge Board in place in
harsh vibration environments. Two anchor points are provided to accommodate
these applications.

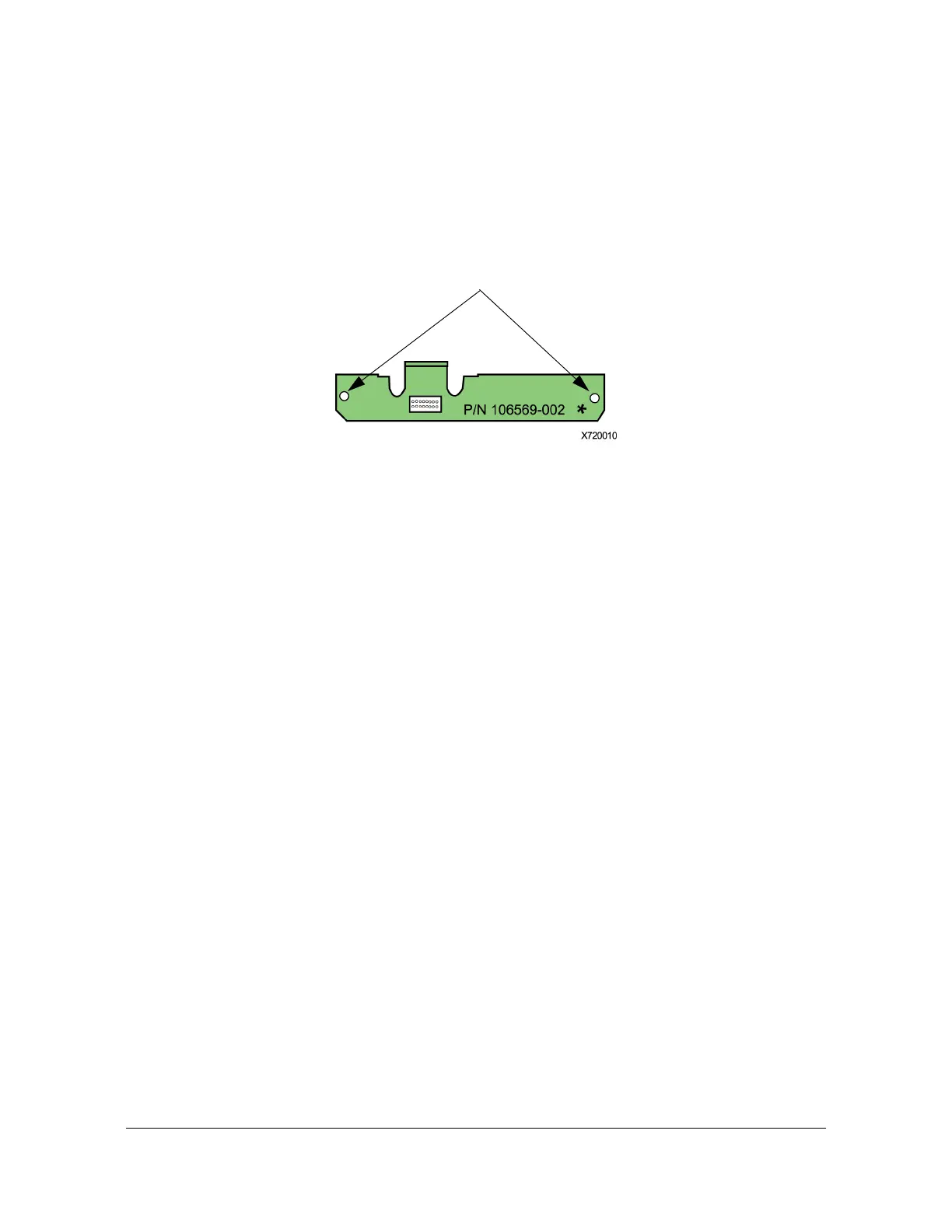

Figure 2-5 Anchored Edge Board
The Anchored Edge Board includes the following:
390 pf capacitor
10 Ω resistor
15 µF capacitor
Pad for coaxial connector for sine output
Unpopulated 16 pin header strip for customer integration.
Anchor Points
