Design Integration Considerations
Mechanical Considerations
32 X72 Desigers Reference and Users Guide 097-10603-01 Rev. A – November 2004

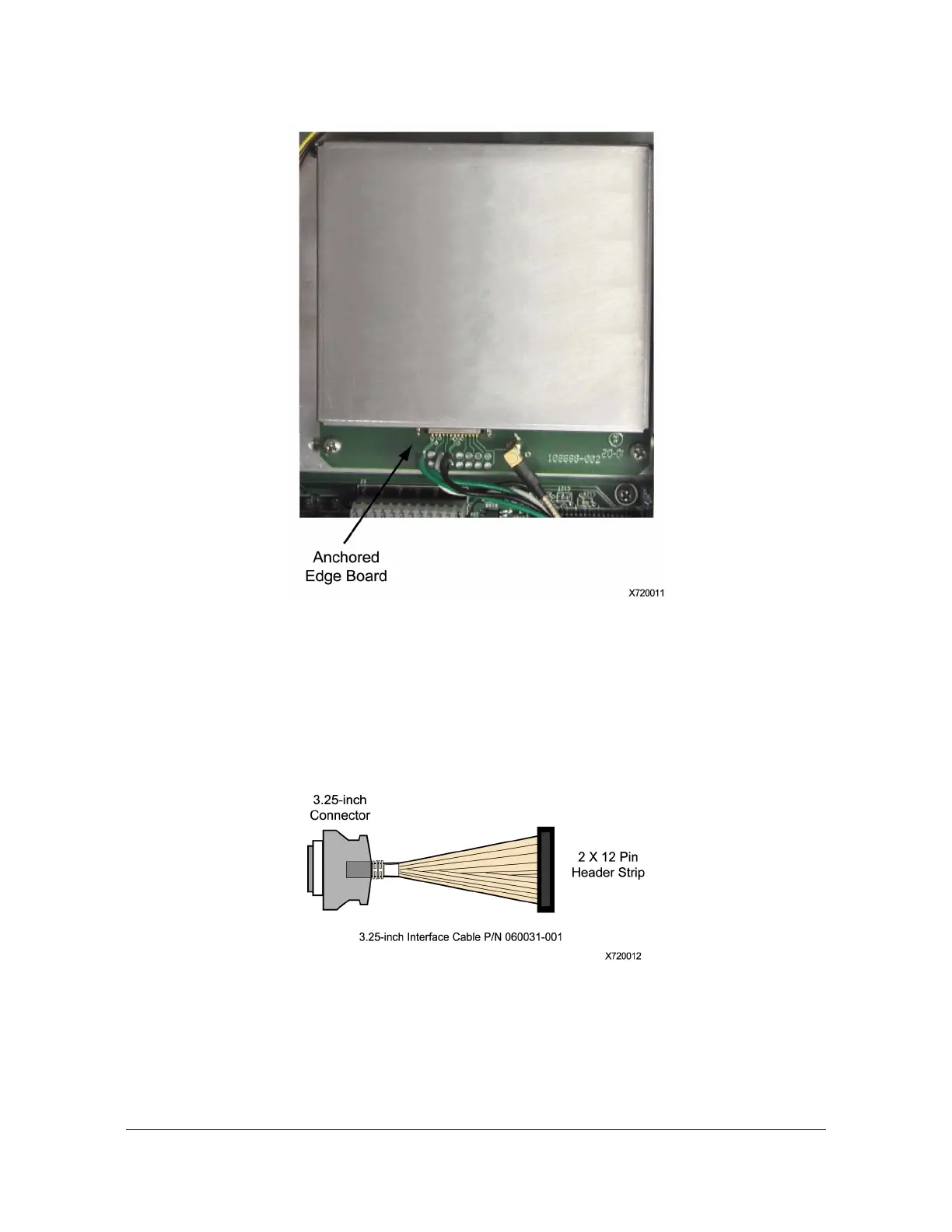

Figure 2-6 Anchored Edge Board Mounting Example
3.25 Connector
The 3.25 inch connector (PN 060031-001) is an all-in-one connection option that
includes the mating connector to the X72 and a 24-pin header that can be mounted
directly on a system board. The flexible cabling allows the header to be installed in
various orientations to the unit.
Figure 2-7 3.25-Inch Connector and Header
