3 Installation Procedure
AC Power
20 The PDRP-1001 PN 50734:C 03/11/99
AC Power
Primary power required for the PDRP-1001/PDRP-1001A/PDRP-1001E panel is 120
VAC, 50/60 Hz, 1.2 amps and primary power for the PDRP-1002E is 220/240 VAC, 50
Hz, 0.6 amps. Overcurrent protection for this circuit must comply with Article 760 of the
National Electrical Code (NEC) and/or local codes. Use #14 AWG (2.00 mm
2
) or larger
wire with 600 volt rating.
Battery Power
Observe polarity when connecting battery. Connect battery cable to J9 on the main
board using the plug-in connector provided. See Appendix A for calculation of correct
battery rating.
CAUTION: Batteries contain sulfuric acid which can cause severe burns to the skin and
eyes, and can destroy fabrics. If contact is made with sulfuric acid, immediately flush
skin or eyes with water for 15 minutes and seek immediate medical attention.
Voltmeter/Ammeter
To monitor battery voltage and battery charging current, a 4XMM (NOTIFIER) is
required. To install the power meter module, remove the jumper labeled “AMP” and
connect cable assembly P2 to pin connector J2 and cable assembly P3 to pin connector
J3 on the main board. Secure the 4XMM to the backbox with the two screws provided.
On some models, it will be necessary to install the meter bracket with the nuts and bolts
provided.

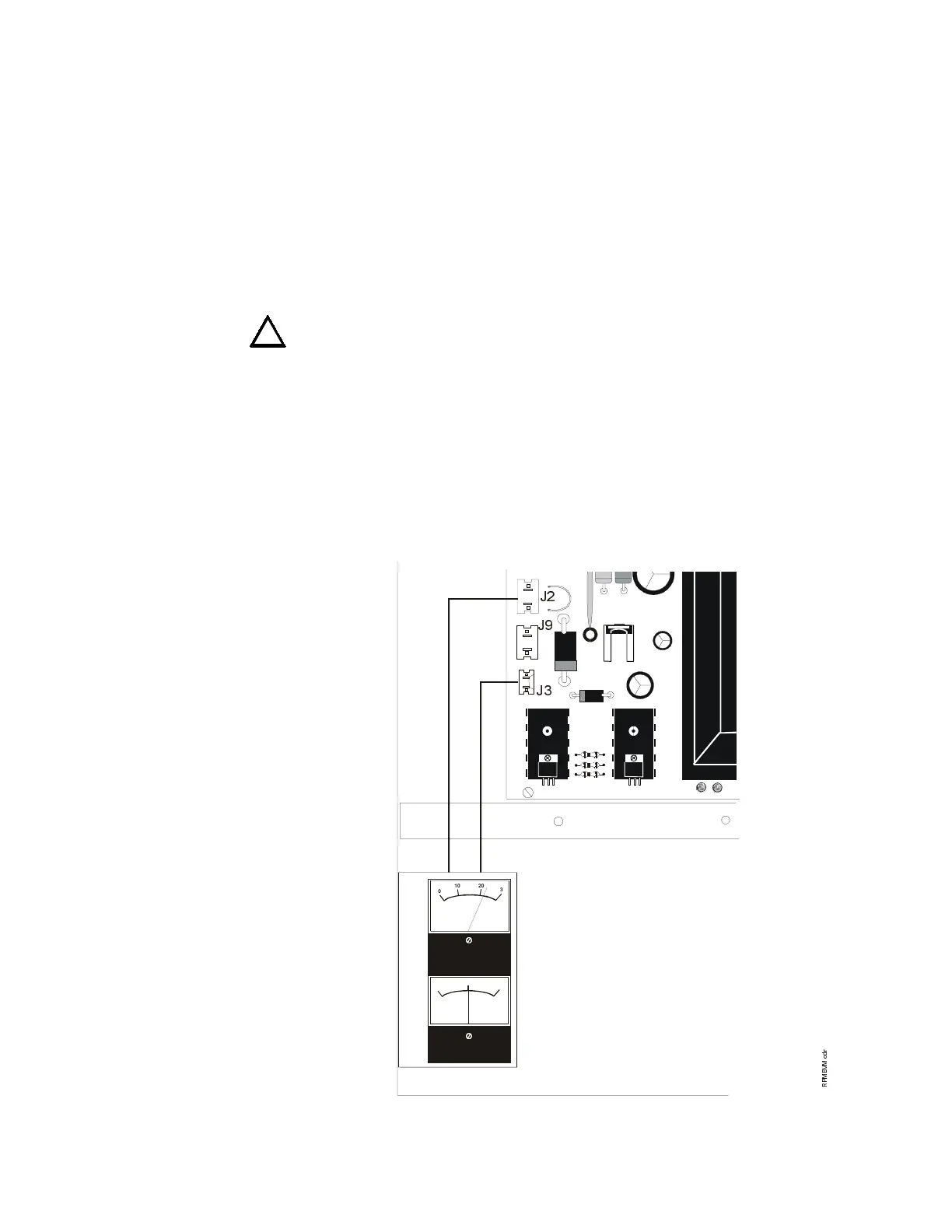

Figure 9 Diagram of the 4XMM Voltmeter Connected to the Main Board
0
10
20
30
DC VOLTS
0
5
5
DC AMPERES
"
P2
P3
To Next Page
