System Sensor PDRP-1001 User Manual

NFPA 72 Auxiliary Fire Alarm System
Appendix C: NFPA Standard-Specific Requirements
The PDRP-1001 PN 50734:C 03/11/99 39
NFPA 72 Auxiliary Fire Alarm System
All connections are power limited and supervised. This application is not suitable for
separate transmission of sprinkler supervisory or trouble conditions.
Note: Maximum loop resistance allowed for wiring from control panel to Municipal Box is 3 ohms.

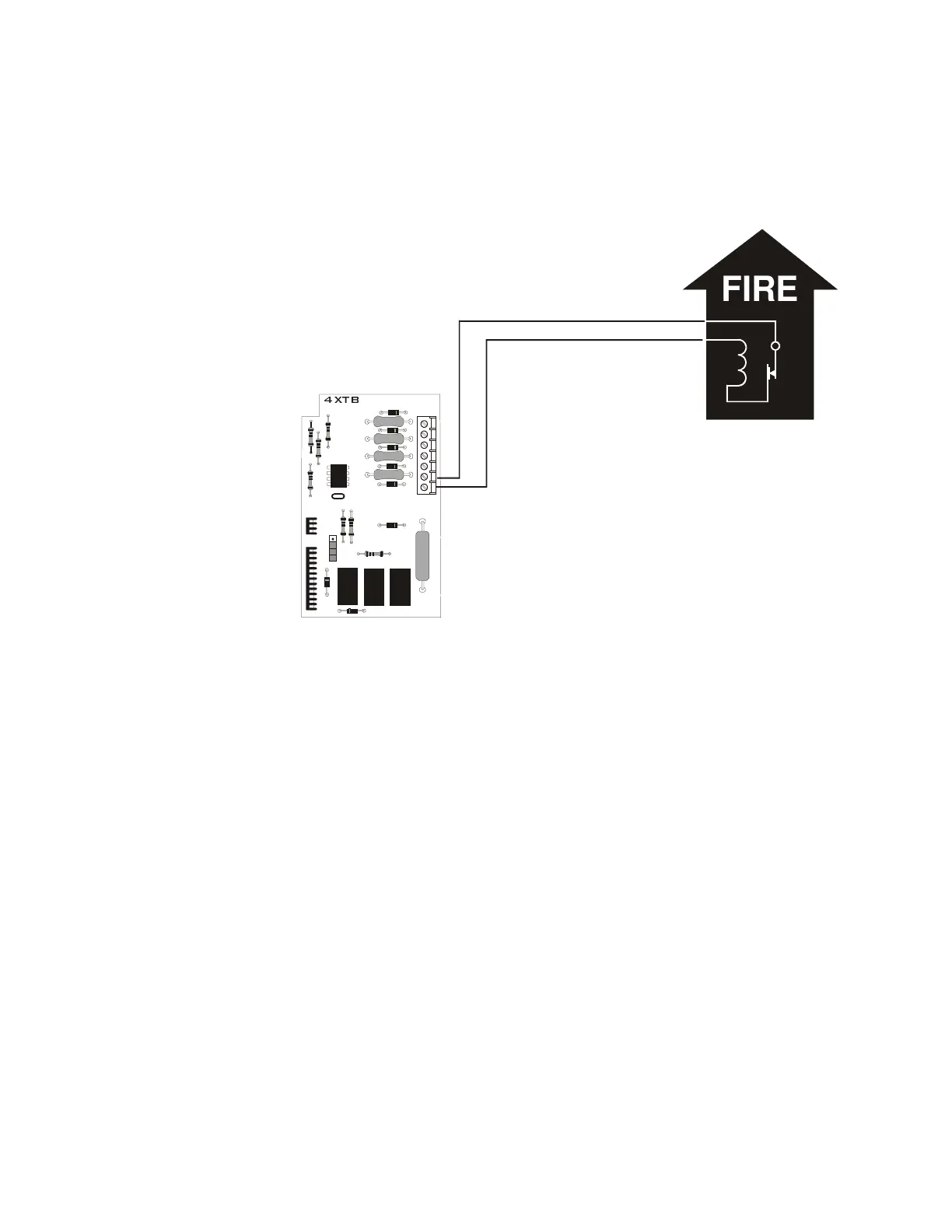

Figure 15 NFPA 72 Auxiliary Fire Alarm System

FIRE
Gamewell
Model M34-56
Local Energy
Municipal Box
+
Municipal Box Circuit
-
4XTM (NOTIFIER)
Transmitter Module
(activated polarities
shown)
+
-
6
7
AUXPROSS.CDR

System Sensor PDRP-1001 Specifications

General

Brand	System Sensor
Model	PDRP-1001
Category	Control Panel
Language	English
