Appendix C: NFPA Standard-Specific Requirements
NFPA 72 Signaling Systems for Central Station Service
38 The PDRP-1001 PN 50734:C 03/11/99
Using the MS-5012 as a DACT
1) Reference the MS-5012 manual for additional information.
2) Program the MS-5012 for slave applications.
3) The PDRP-1001/PDRP-1001A/PDRP-1001E is not suitable for transmission of a
supervisory signal to the DACT.

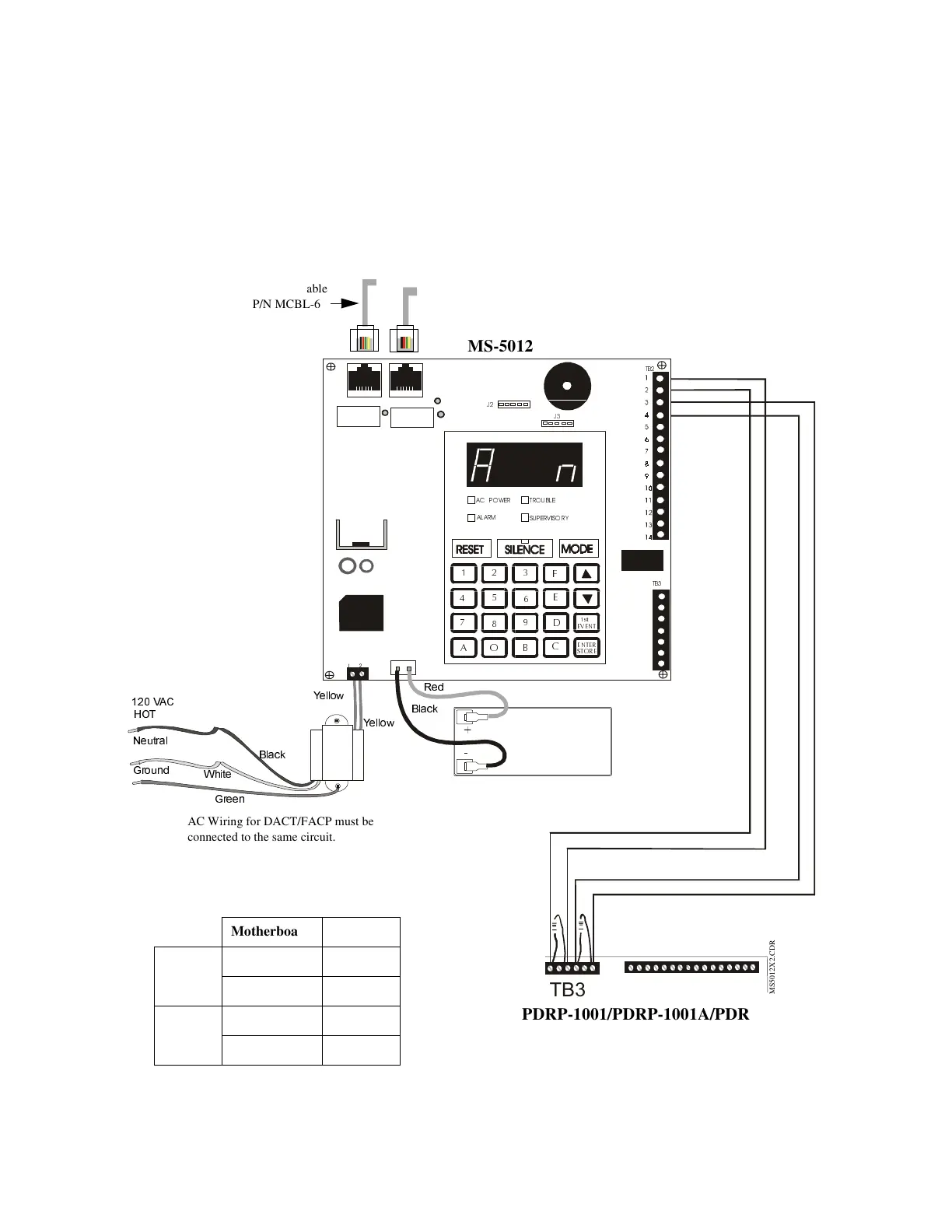

Figure 14 Using the MS-5012 as a DACT
AC Wiring for DACT/FACP must be
connected to the same circuit.
Motherboard MS-5012
Alarm
TB3-1 TB2-2
TB3-3 TB2-1
Trouble
TB3-4 TB2-4
TB3-6 TB2-3
12VDC
Battery
2-7AH
Trouble
Alarm
Primary
Phone Line
Secondary
Phone Line
Modular Cable
P/N MCBL-6
MS5012X2.CDR
MS-5012
PDRP-1001/PDRP-1001A/PDRP-1001E
1 2 3 4 5 6
To Next Page
