1 The PDRP-1001/PDRP-1001A/PDRP-1001E
Transmitter Module (4XTM - NOTIFIER)
8 The PDRP-1001 PN 50734:C 03/11/99

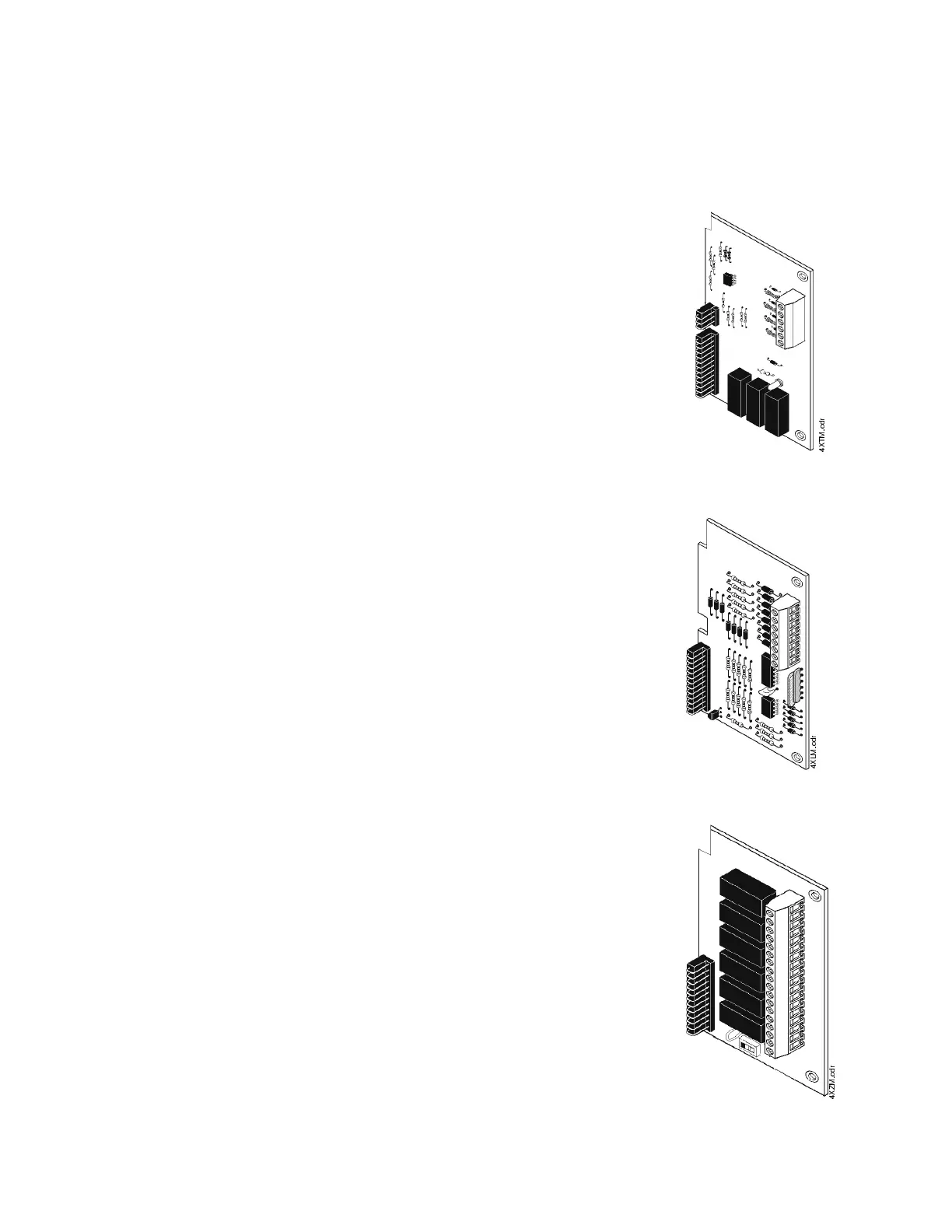

Optional Boards
The PDRP-1001/PDRP-1001A/PDRP-1001E has mounting slots for two option boards.
Any two of the three option modules may be installed.
Transmitter Module (4XTM - NOTIFIER)
The Transmitter Module provides a supervised output for
local energy municipal box transmitter (for NFPA 72
Auxiliary Fire Alarm System) and alarm and trouble
reverse polarity circuits (for NFPA 72 Remote Station Fire
Alarm System). Also included is a DISABLE switch and
disable trouble LED.
As a jumper option, the alarm reverse polarity circuit will
open on trouble if no alarm exists.
LED Interface Module (4XLM - NOTIFIER)
The LED Interface Module supports the RZA-4X Remote
Annunciator module. Annunciator wiring is supervised for
open conditions by this module. The Annunciator Driver
Module mounts to the main board, occupying one of the
two option connectors.
Zone Relay Module (4XZM - NOTIFIER)
The Zone Relay module provides Form-C contacts for the
following:
• Alarm/Waterflow Bell
• Waterflow/Supervisory Bell
•Releasing Circuit 1
• Supervisory Bell/Release Circuit 2
•System Alarm
• System Trouble
As a jumper option, the first four relays described below can
be made silenceable.
Transmitter Module (4XTM - NOTIFIER)
For Local Energy Municipal Box service (NFPA 72 Auxiliary
Fire Alarm System)
Supervisory current: 5.0 mA






System Sensor PDRP-1001 Specifications

General

Brand	System Sensor
Model	PDRP-1001
Category	Control Panel
Language	English
