1. The clamp-on ferrite must be located on the 2-wire or 4-wire line as close as possi-
ble to the T803. If the ferrite is not located within 10cm of the line socket, there is
no guarantee that the T803 complies with the EMC standards.
2. Only one turn of the 2-wire or 4-wire line is required through the ferrite. However,
two turns are recommended (see Figure 1.3) as this provides extra immunity
while also securing the ferrite in position.
3. Ensure that the 2-wire or 4-wire line does not impede the closing of the ferrite
clamp.

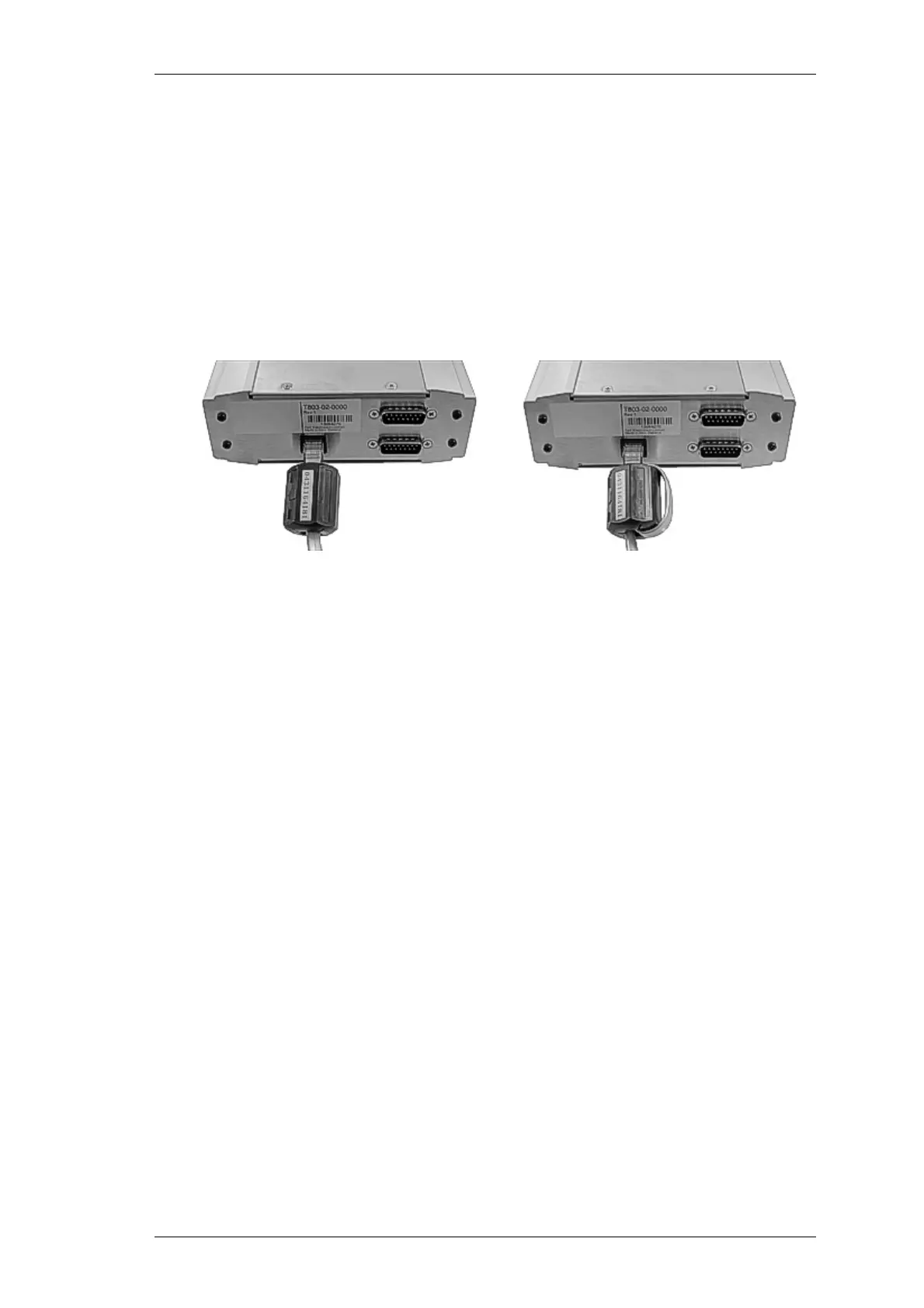

Figure 1.3 Single and double turn of line through filter
Technical Support
Contact your local Tait Electronics agent or Customer Service Organisation or visit Tait
Electronics Technical Support at support.taitworld.com.
1.4.4 New Zealand
This product complies with the following standards:
• PTC200 Requirements for analogue telecommunications equipment.
• AS/NZS 3548 Class A Radiated and conducted emissions specifications
Warning:
T803-02-0000 for use in New Zealand
“The grant of a Telepermit for any item of terminal equipment indicates only that Tele-
com New Zealand has accepted that the item complies with minimum conditions for
connection to its network. It indicates no endorsement of the product by Telecom New
Zealand, nor does it provide any sort of warranty. Above all, it provides no assurance
that any item will work correctly in all respects with another item of Telepermitted
equipment of a different make or model, nor does it imply that any product is compati-
ble with all Telecom New Zealand's Network services.”
“This equipment does not fully met Telecom New Zealand's impedance requirements.
Performance limitations may occur when used in conjunction with some parts of the
Single turn Double turn
