Takeuchi TB014 User Manual

119
MAINTENANCE
Every 100 Hours

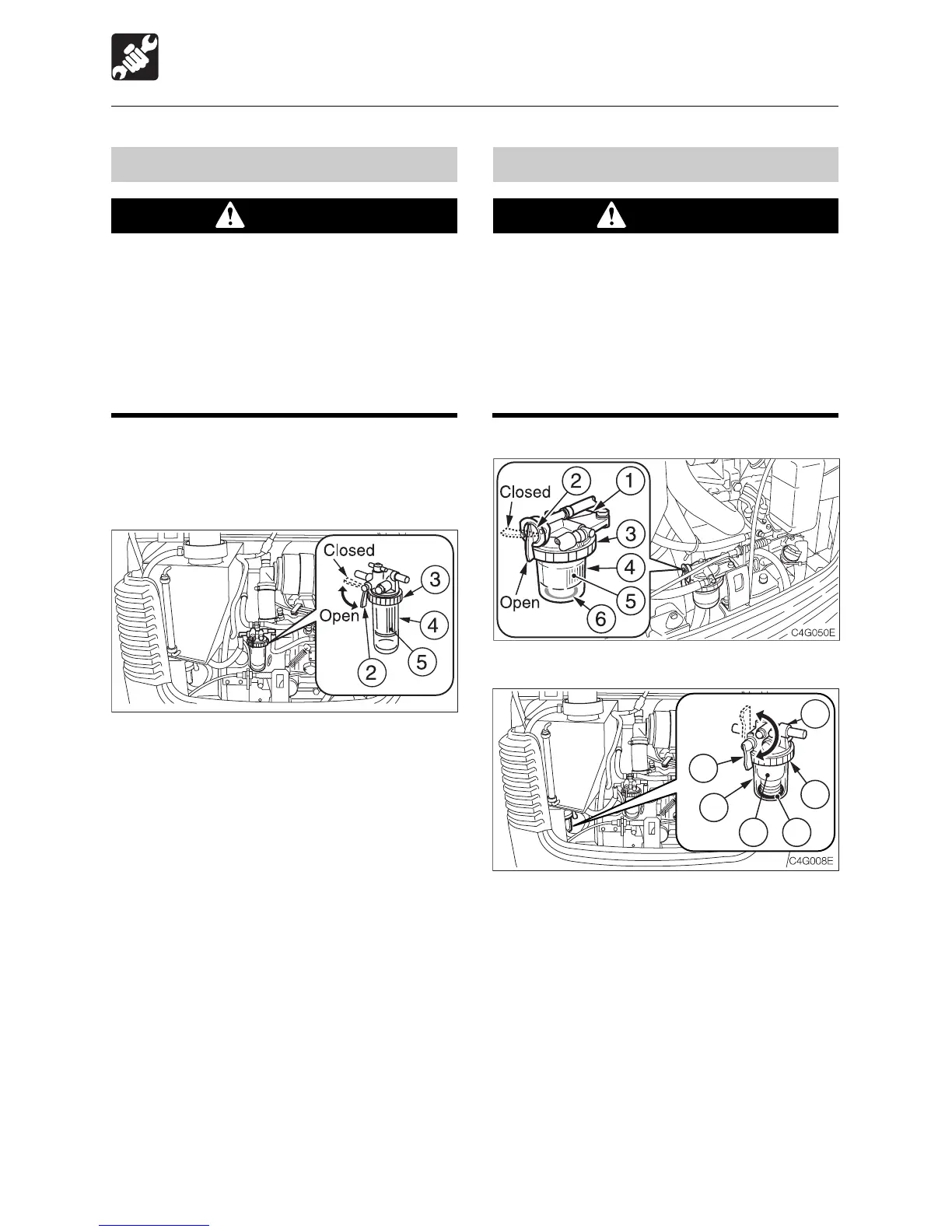

Cleaning the Water Separator
WARNING
¡¡
¡¡
¡ Do not smoke or permit open flames
while handling fuel or working on the
fuel system.
¡¡
¡¡
¡ Stop the engine in a well-ventilated
place and allow it to cool down before
performing maintenance.
¡¡
¡¡
¡ Clean up spilled fuel immediately.
< TB014 >
< TB016 >
1. Open the engine hood.
2. Close the cock (2).
3. Loosen the ring (3), then remove the case
(4), element (5) and indicator ring (6) and
clean them.
4. Inspect the O-ring, and if there are any
scratches or other irregularities, replace it.
5. Assemble the indicator ring (6), case (4)
and element (5) and tighten the ring (3).
6. Open the cock (2) and bleed the air.
Refer to page 141 “Bleeding the air from
the fuel system”.
Cleaning the Fuel Filter
WARNING
¡¡
¡¡
¡ Do not smoke or permit open flames
while handling fuel or working on the
fuel system.
¡¡
¡¡
¡ Stop the engine in a well-ventilated
place and allow it to cool down before
performing maintenance.
¡¡
¡¡
¡ Clean up spilled fuel immediately.
< TB014 >
Refer to “Cleaning the Water Separator”.
< TB016 >
1. Open the engine hood.
2. Close the cock (2).
3. Loosen the ring (3), then remove the case
(4) and element (5) and clean them.
4. Inspect the O-ring, and if there are any
scratches or other irregularities, replace it.
5. Assemble the case (4) and element (5)
and tighten the ring (3).
6. Open the cock (2) and bleed the air.
Refer to page 141 “Bleeding the air from
the fuel system”.
7. Start the engine and inspect for fuel
leakage.
C4G023E
6
3
5
4
2
Closed
1

Takeuchi TB014 Specifications

General

Engine	Yanmar 3TNV70
Overall Width	980 mm
Transport Width	980 mm
Bucket Capacity	0.04 m3
Max Digging Depth	2260 mm
