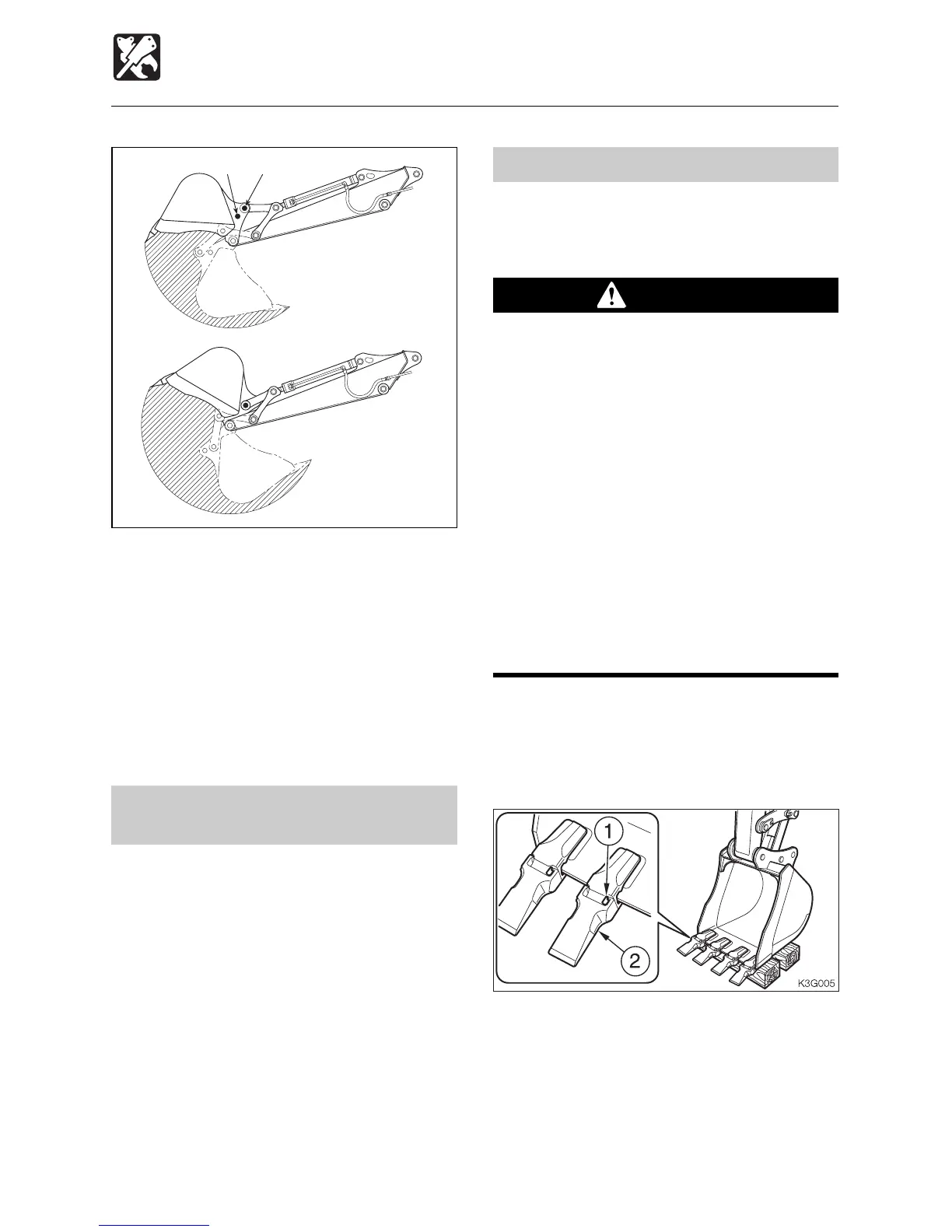

OPTIONS
Three-Hole Bucket
The digging capacity increases when the
bucket’s link arm installation position is
switched from (A) to (B). However, this
shortens the bucket stroke.
• Struck capacity (SAE):
0.038 m
3
(0.049 cu. yd.)
• Rated capacity (SAE):
0.049 m
3
(0.064 cu. yd.)
Changing the Link Arm
Installation Position
Refer to “Replacing the Bucket” in the
manual.
Replacing the Bucket Teeth
Replace the bucket teeth when the tooth
points are worn, before the adapter is
damaged.
WARNING
¡¡
¡¡
¡ Before performing maintenance or
repairs under the machine, set all
working equipment against the ground
or in the lowermost position.
¡¡
¡¡
¡ To prevent unexpected movement,
securely block the working elements
when repairing or replacing the bucket
teeth.
¡¡
¡¡
¡ Wear required appropriate equipment
such as safety glasses when using
hammers, as metal fragments or other
objects can fly and cause serious
personal injury.
¡¡
¡¡
¡ Do not allow unauthorized personnel
in the work area.
Removal
1. Clean the bucket and park the machine in
a flat, safe place where the ground is hard.
2. Set the bottom surface of the bucket flat
and lower it on a block so that the locking
pin (1) can be knocked out.
OL1L170
A
B
OL1L180
