Takeuchi TB014 User Manual

142

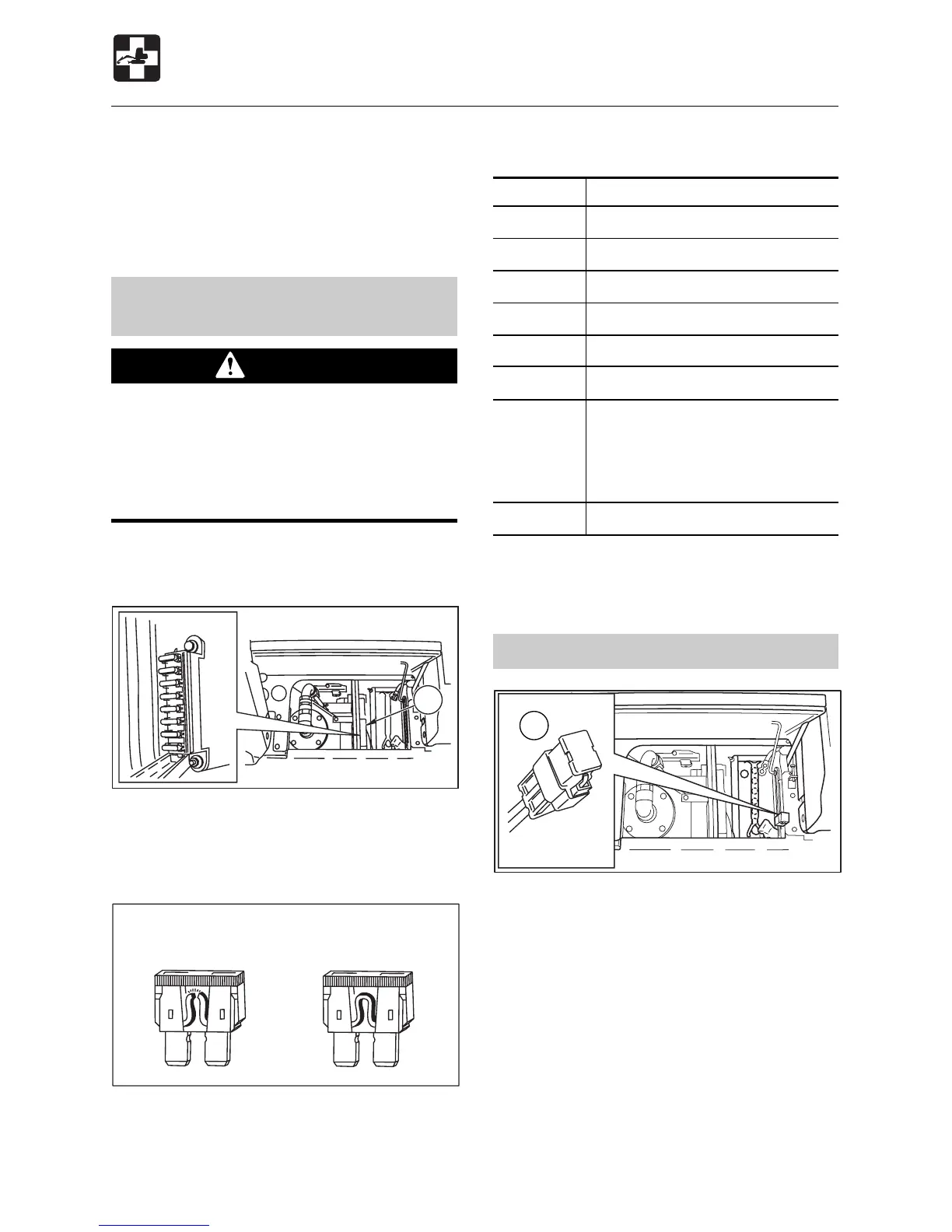

TROUBLESHOOTING
If a Fuse Blows
If a light does not turn on or the electric
system does not operate, a fuse may be
blown. Inspect the fuses.
Inspecting and Replenishing the
Fuse
WARNING
If the fuse blows as soon as it is replaced,
there is a problem with the electric
system. Continued use may lead to fire.
Consult a Takeuchi sales or service
outlet.
1. Turn the starter key to the OFF position
and stop the engine.
2. Open the maintenance cover.
3. Open the fuse box (1) and inspect for any
blown fuses.
4. If a fuse is blown, replace it with a fuse of
the same capacity.
Inspecting the Fusible Link
If the electric power is not switched on after
turning the starter switch to the ON position,
the cartridge type fusible link (1) might be
blown open. Open the maintenance cover
and inspect. If the fusible link is blown, please
contact a Takeuchi sales or service.
Supplement: A fusible link is a large piece
of fuse wiring which is mounted in a circuit
which carries a large electrical current. Link
a regular fuse, the fusible link protects the
electrical parts and wiring from damage due
to abnormally large currents.
C4B029
1
E4J007
NormalBlown
1
C4J004
Fuse Layout and Circuits Protected
Capacity Protected circuit
30A Stop solenoid
10A Lever lock
10A Second travel speed
20A Lights, Tail lamp
15A Heater, Radio
10A Feed pump, Instrument panel
25A External power socket,
Cigarette lighter,
Wiper (cab),
Travel alarm (option)
10A
Horn, Clock(radio), Interior light

Takeuchi TB014 Specifications

General

Engine	Yanmar 3TNV70
Overall Width	980 mm
Transport Width	980 mm
Bucket Capacity	0.04 m3
Max Digging Depth	2260 mm
