MAINTENANCE
Every 500 Hours
Replacing the Fuel Filter
WARNING
¡¡
¡¡
¡ Do not smoke or permit open flames
while handling fuel or working on the
fuel system.
¡¡
¡¡
¡ Stop the engine in a well-ventilated
place and allow it to cool down before
performing maintenance.
¡¡
¡¡
¡ Clean up spilled fuel immediately.
< TB014 >
< TB016 >

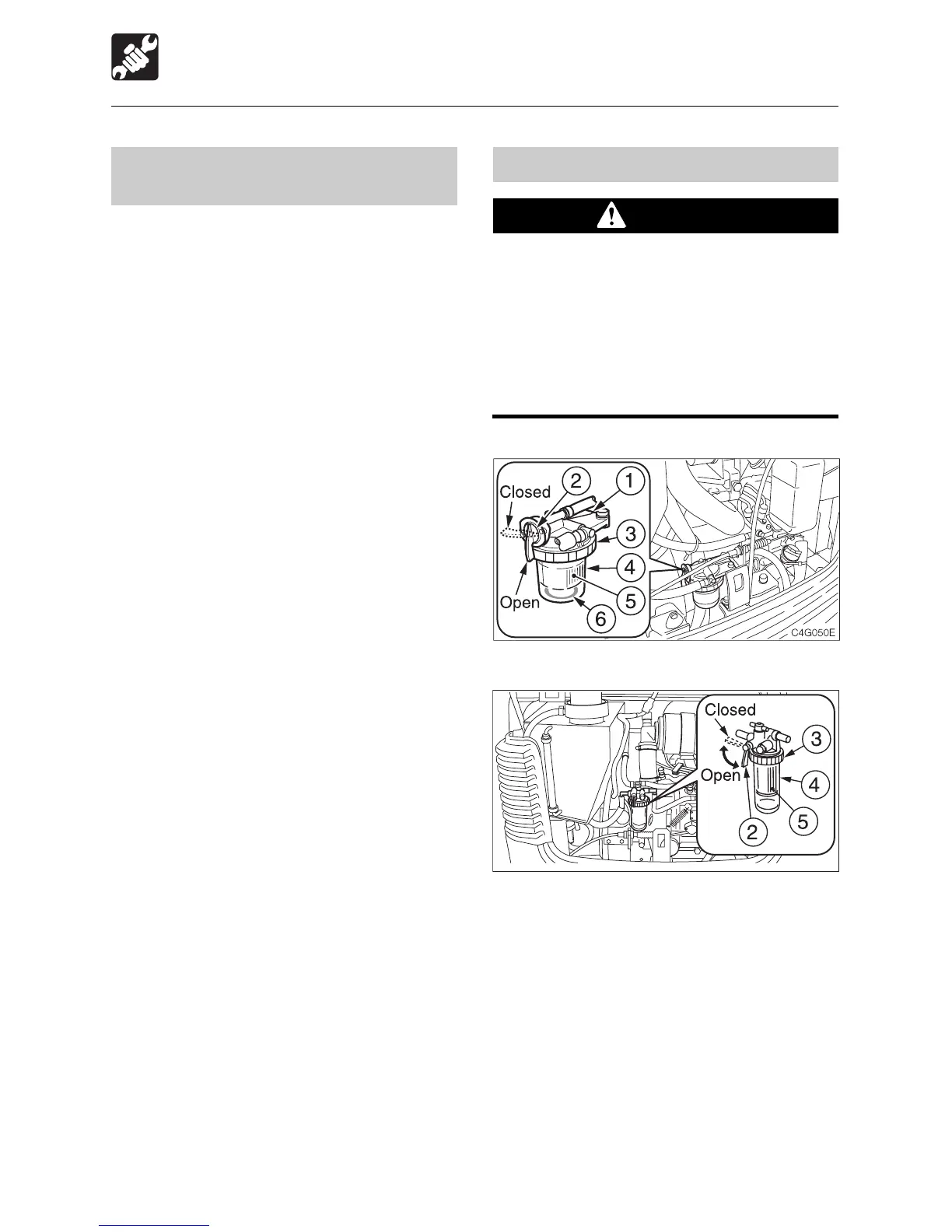

1. Open the engine hood.
2. Close the cock (2).
3. Loosen the ring (3), then remove the case
(4), element (5) and the indicator ring (6)
< TB014 >.
4. Clean the case (4).
5. Assemble the new element and the
indicator ring (6) < TB014 > in the case
(4), then tighten the ring (3).
6. Open the cock (2) and bleed the air.
Refer to page 141 “Bleeding the air from
the fuel system”.
Replacing the Hydraulic Oil
Return Filter
Refer to page 112 “Replacing the Hydraulic
Oil Return Filter”.
C4G023E

Takeuchi TB014 Specifications

General

Engine	Yanmar 3TNV70
Overall Width	980 mm
Transport Width	980 mm
Bucket Capacity	0.04 m3
Max Digging Depth	2260 mm
