CONTROLS
Instrument Panel
Warning Lamps
IMPORTANT: If a warning lamp flashes
and an alarm is sounded, stop all
operations immediately and inspect and
maintain the appropriate part. For the
TB014, the warning lamp lights but no
alarm is sounded.
Refer to page 143 “Troubleshooting”.

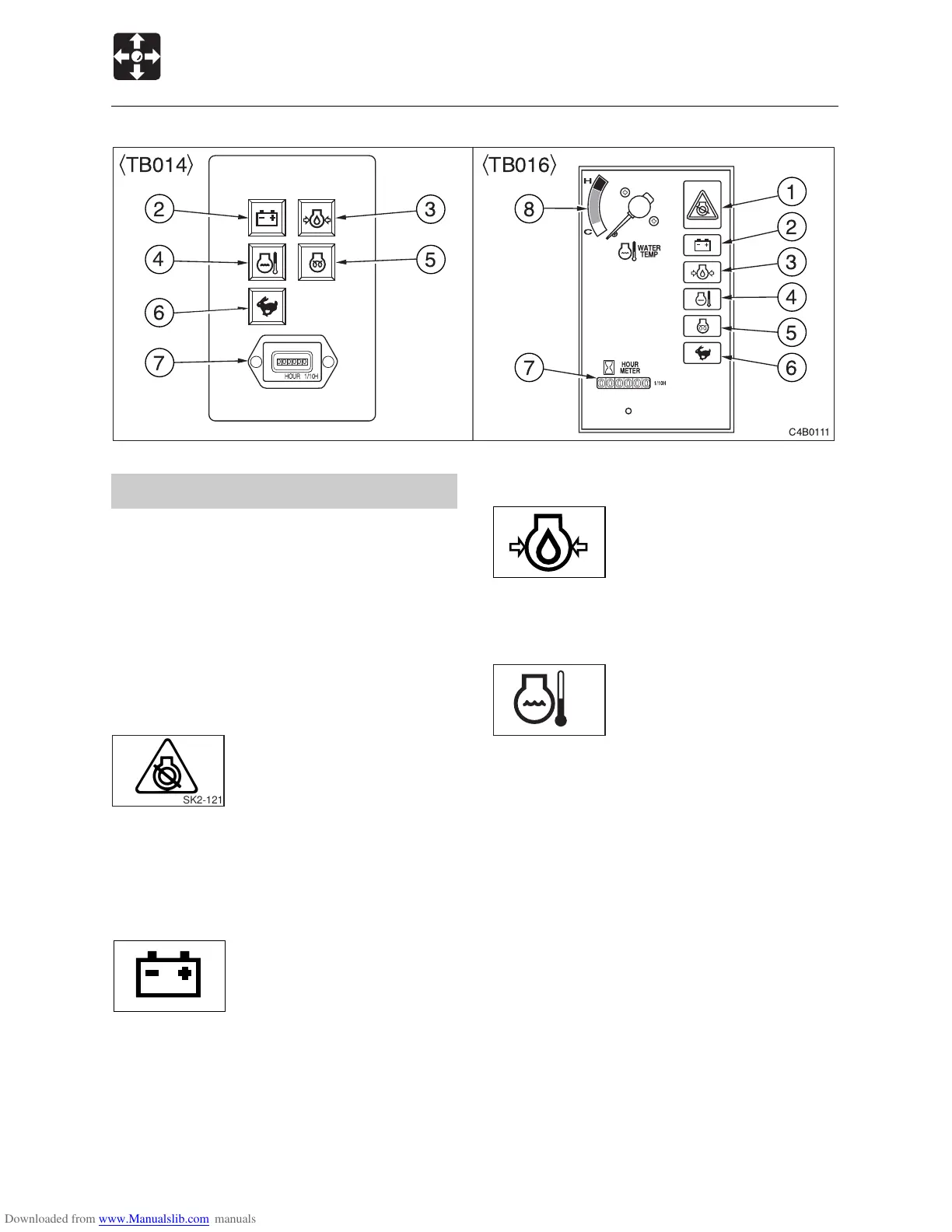

1. Engine Emergency Lamp (TB016)
This lamp flashes and an
alarm is sounded if the
engine oil pressure drops or
the coolant temperature
rises abnormally while the engine is running.
After approximately 5 seconds, the engine
stops automatically.
2. Battery Charge Warning Lamp
This lamp flashes or lights
and for the TB016 an alarm
is sounded if a problem
arises in the charging
system while the engine is running.
3. Engine Oil Pressure Warning Lamp
This lamp flashes or lights
and for the TB016 an alarm
is sounded if the lubricant oil
pressure drops abnormally
while the engine is running.
4. Coolant Temperature Warning Lamp
This lamp flashes or lights
and for the TB016 an alarm
is sounded if the engine
coolant temperature rises
abnormally while the engine is running.
