Takeuchi TB014 User Manual

46
CONTROLS
Meters
7. Hour Meter (TB014)
This displays the total
engine running time in
hours.
The rightmost digit indicates
tenths of hours (6 minutes).
Set the inspection and maintenance intervals
according to the time displayed on the hour
meter.
7. Hour Meter (TB016)
This displays the total
engine running time in
hours.
The rightmost digit indicates
tenths of hours (6 minutes).
Set the inspection and maintenance intervals
according to the time displayed on the hour
meter.
8. Water Temperature Gauge (TB016)
This indicates the
temperature of the engine
coolant.
The needle should be within
the green range during machine operation.
The red range indicates overheating.

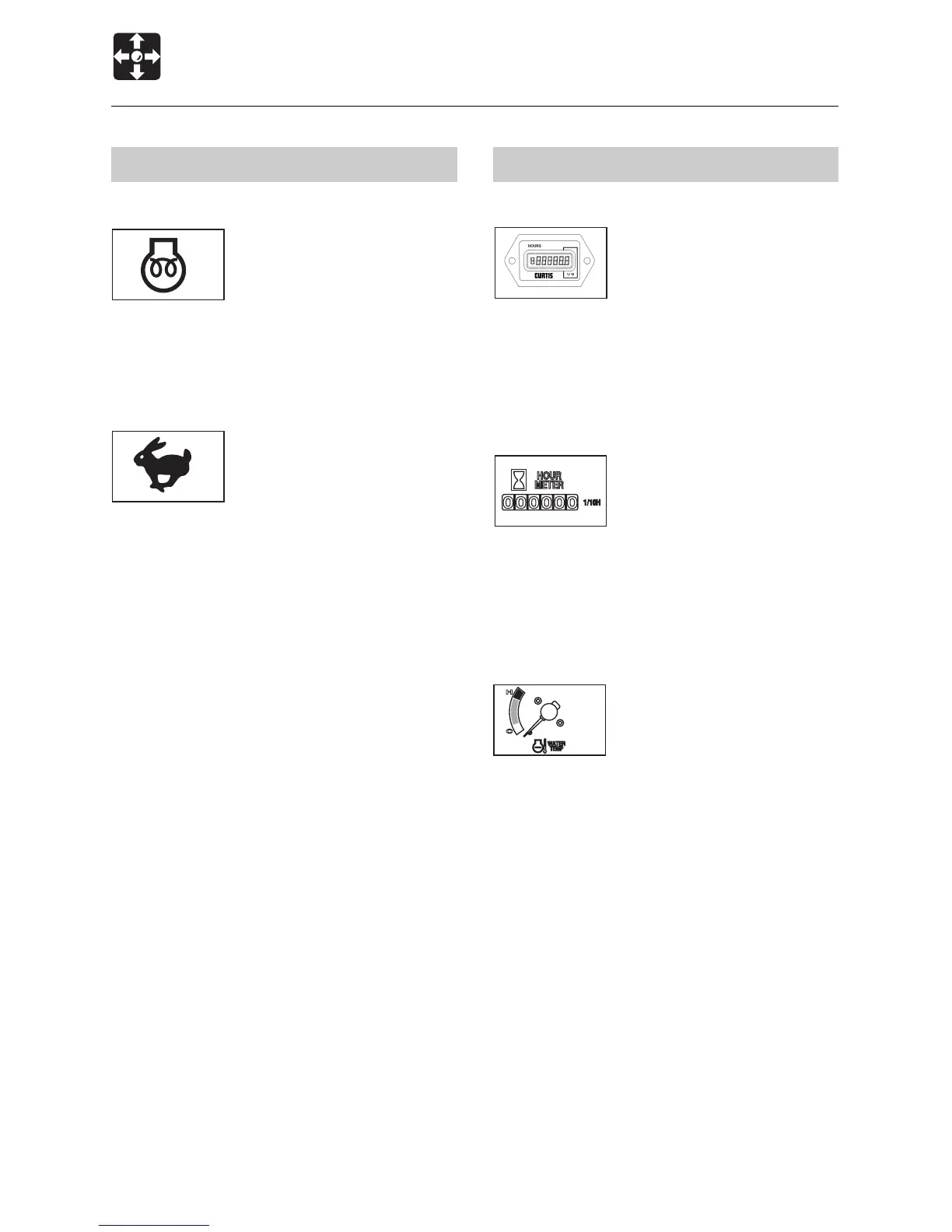

Instrument Panel
C4B015
C4B016
C4B017
Indicators
5. Glow Lamp
< TB014 >
This lamp lights while the
key is at the PREHEAT
position.
< TB016 >
This lamp turns off when engine preheating
is completed (5 seconds).
6. Travel Speed Lamp
This lamp lights when the
travel speed is set to 2nd
(high speed).
C4B013
C4B014

Takeuchi TB014 Specifications

General

Engine	Yanmar 3TNV70
Overall Width	980 mm
Transport Width	980 mm
Bucket Capacity	0.04 m3
Max Digging Depth	2260 mm
