Takeuchi TB014 User Manual

37

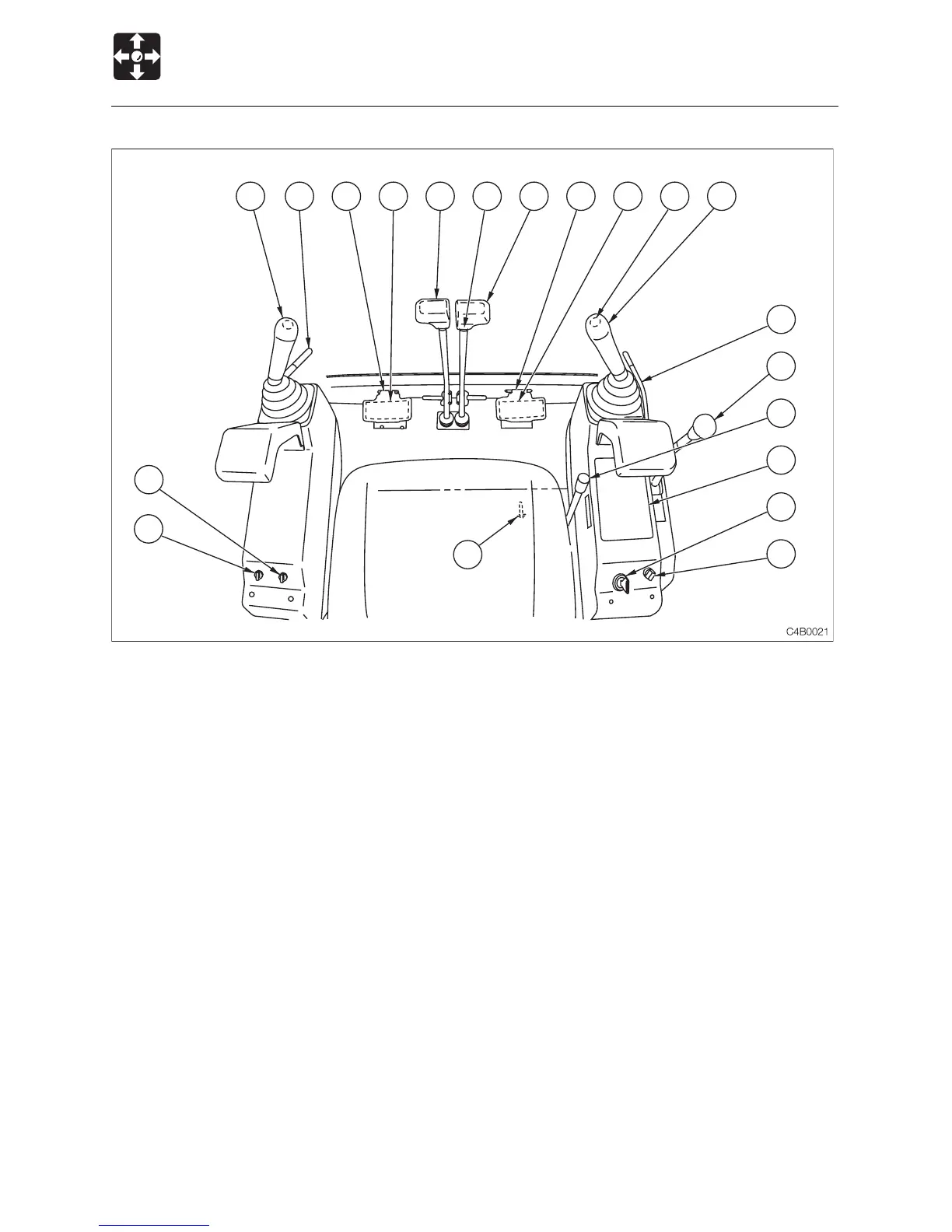

CONTROLS
1. Instrument panel
2. Starter switch
3. Light switch
4. Horn switch
5. Travel speed switch
6. Wiper switch (Cab)
7. Safety lock lever
8. Safety lock lever (Canopy)
9. Throttle lever
10. Left operating lever
11. Right operating lever
12. Pedal lock
13. Boom swing pedal
14. Travel lever
15. Auxiliary pedal
16. Blade lever
17. Selector lever
18. Heater fan switch (Cab)
Names of Components
10
8
16
17
9
1
2
3
7 12 15 14 5
6
14 12 13 4 11
18

Takeuchi TB014 Specifications

General

Engine	Yanmar 3TNV70
Overall Width	980 mm
Transport Width	980 mm
Bucket Capacity	0.04 m3
Max Digging Depth	2260 mm
