Takeuchi TB014 User Manual

40

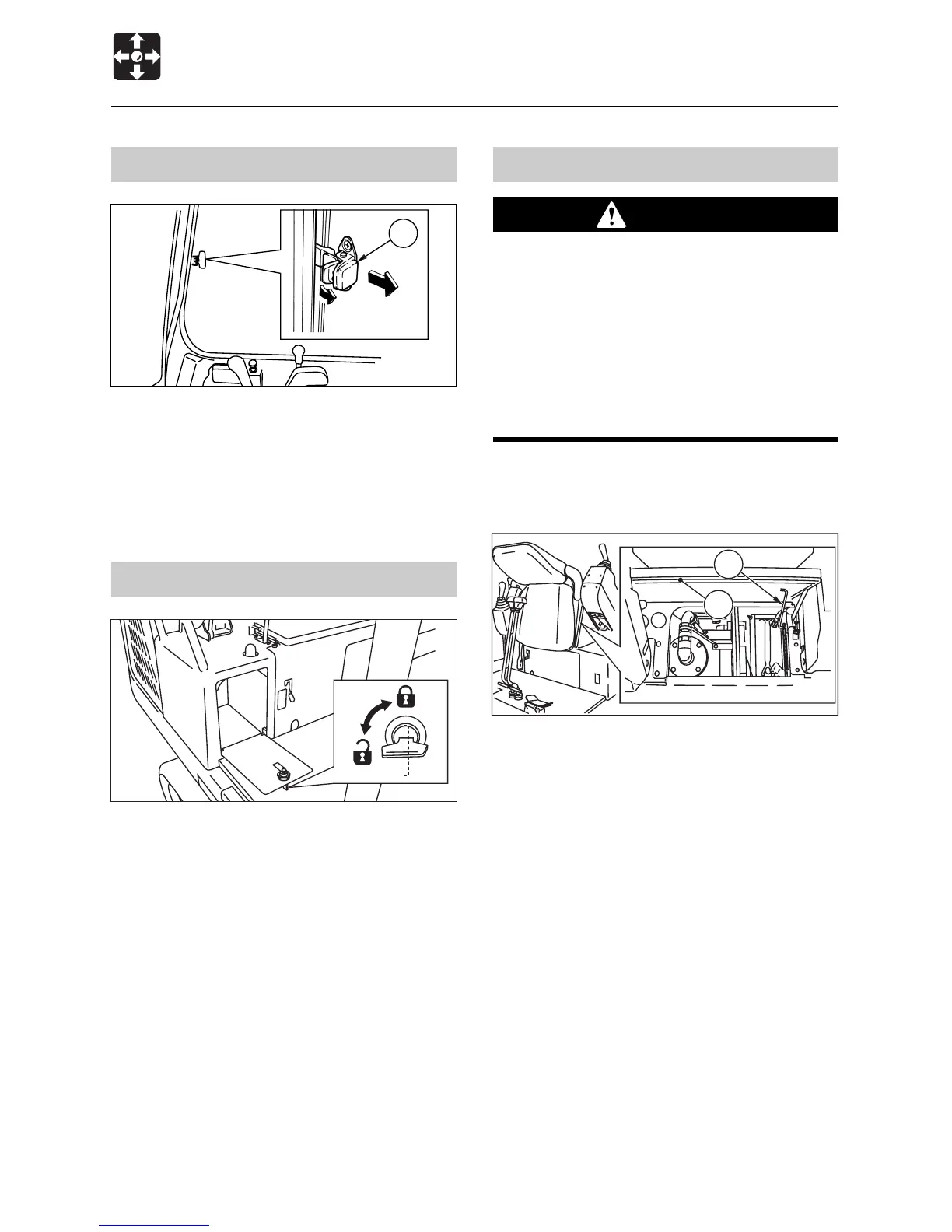

CONTROLS
Side Window (Cab)
1. Grasp the catch (7), unlock it and open
the side window.
2. To close the side window, close it until a
click is heard.
Storage Box
For models equipped with heaters, the heater
is mounted here, so this cannot be used as
a storage box.
1. Insert the starter key and turn it
counterclockwise to unlock the storage
box.
Maintenance Cover
WARNING
¡¡
¡¡
¡ Before opening the maintenance cover,
set the safety lock lever securely to the
locked position and stop the engine.
¡¡
¡¡
¡ When opening the maintenance cover,
open it firmly to the locked position.
¡¡
¡¡
¡ When closing the maintenance cover,
be careful not to get your hands or
other parts of your body caught.
Open this cover for inspection and
maintenance of the hydraulic system, fuse
system and battery.
Opening
1. Tilt the seat forward and open the
maintenance cover (1) forward until it
locks.
2. Check that the maintenance cover is
securely locked in place with the stay (2).
Closing
1. Holding the seat, lift the stay (2) to unlock
the maintenance cover.
2. Set the seat back in place and close the
cover.
Doors and Covers
1
2
C4B005
7
C4C007
C4B004
