Takeuchi TB014 User Manual

3

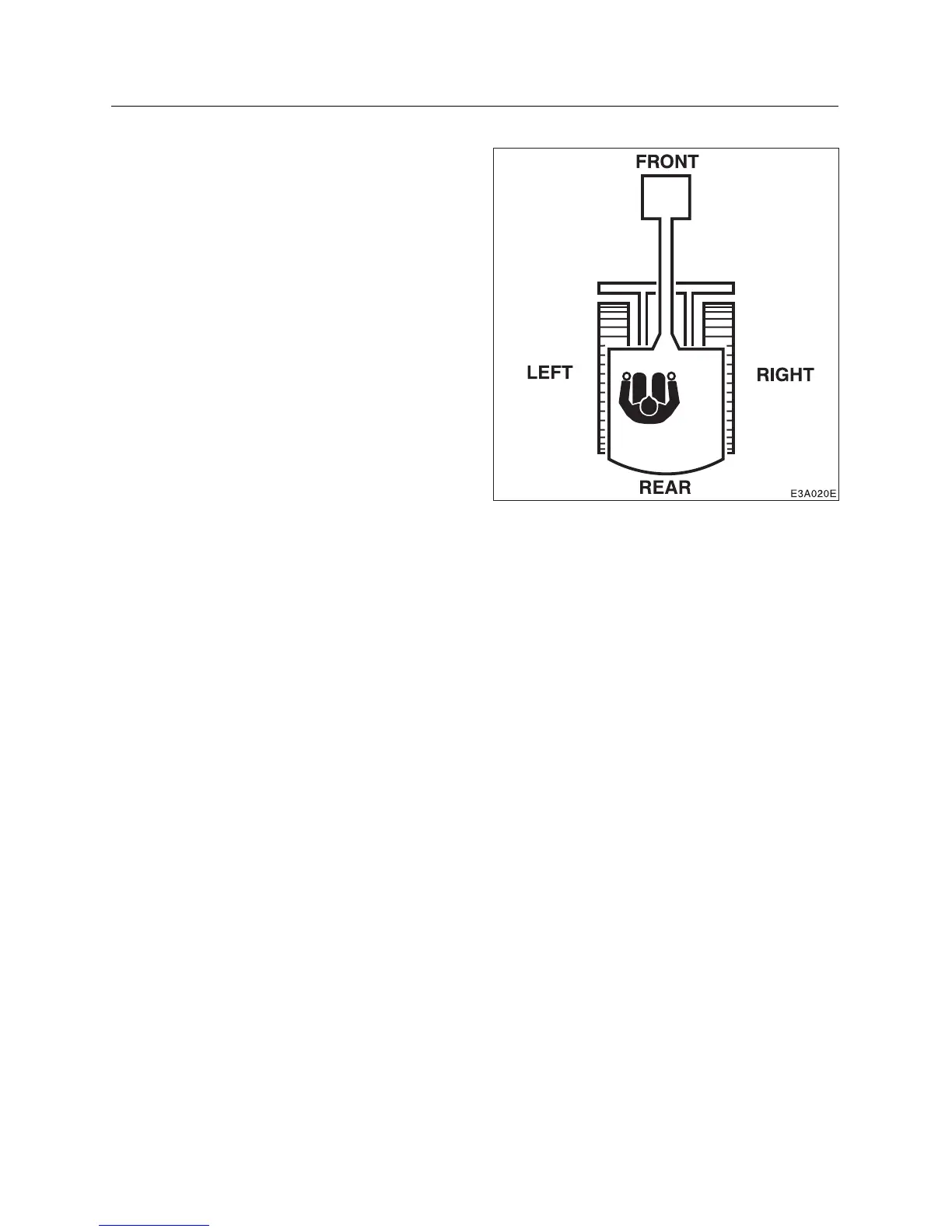

■ Front, rear, Ieft and right
This manual refers the front, rear, left and
right of the machine as seen when sitting in
the operator’s seat with the dozer blade
visible to the front.
■ Designated operations
Use this machine primarily for the following
operations:
¡ Excavating
¡ Digging ditches
¡ Digging side ditches
¡ Leveling
¡ Loading
MACHINE DESCRIPTlON
■ Features
¡Fast working speed and low-shock working equipment
¡Excellent stability thanks to a low center of gravity
¡The TB016 hydraulically adjustable crawler frame
■ Break-in period
When the machine is new, heed the instructions below when operating the machine for the
first 100 hours (as indicated on the hour meter).
Using a new machine roughly without breaking it in will lead to quicker deterioration of machine
performance and may shorten the machine’s service life.
¡ Warm up the engine and hydraulic oil sufficiently.
¡ Avoid heavy loads and rapid operations. Operate with a load of about 80% the maximum
load.
¡ Do not start up, accelerate, change directions, or stop abruptly unless necessary.

Takeuchi TB014 Specifications

General

Engine	Yanmar 3TNV70
Overall Width	980 mm
Transport Width	980 mm
Bucket Capacity	0.04 m3
Max Digging Depth	2260 mm
