Takeuchi TB014 User Manual

76
OPERATION
Machine Operation

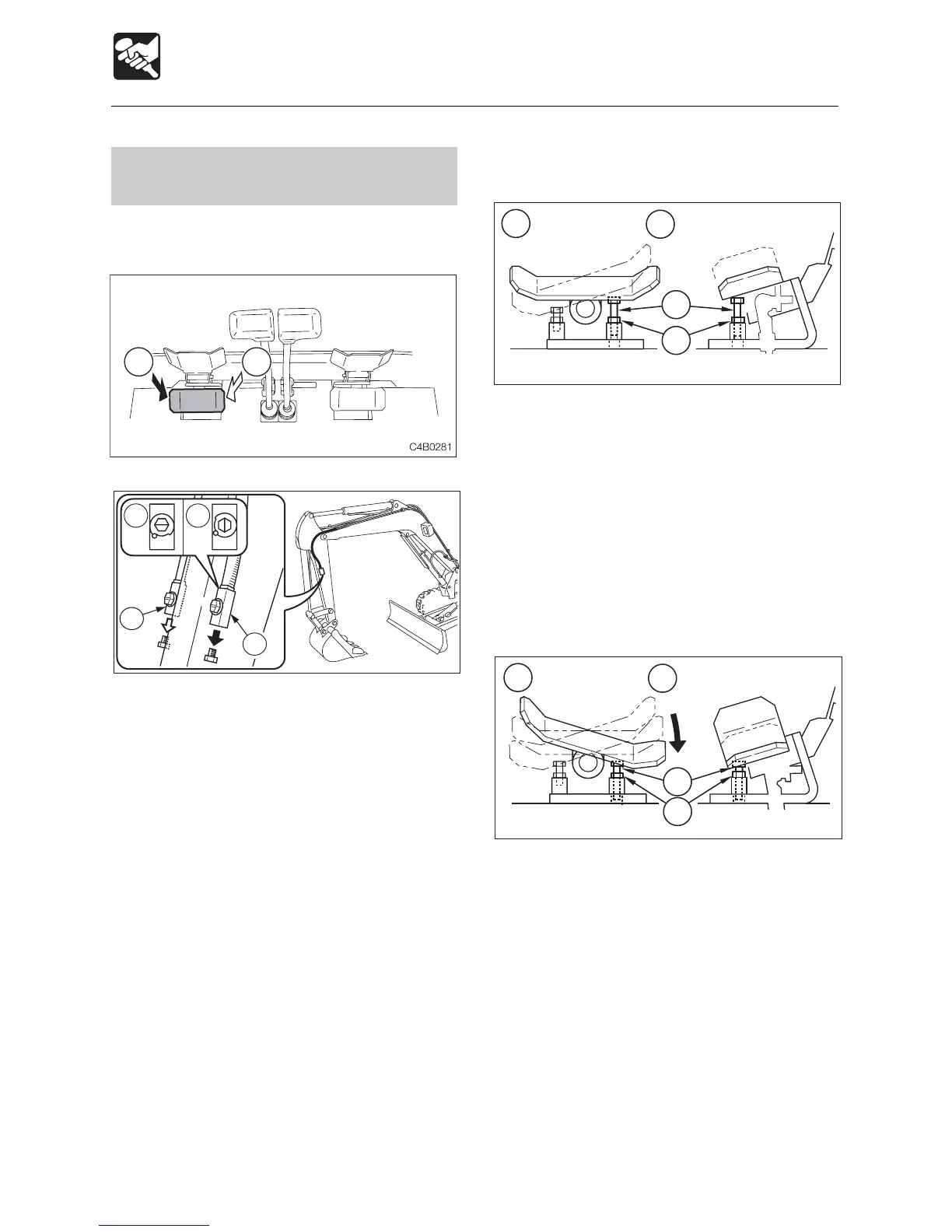

Operating the Auxiliary
Hydraulics
Use this to operate a breaker, crusher or
other attachment.
When the pedal is pressed, hydraulic oil is
delivered to the auxiliary hose’s ports (a) and
(b).
aTo deliver hydraulic oil to port (a):
Press the left side (A) of the pedal.
eTo deliver hydraulic oil to port (b):
Press the right side (B) of the pedal.
Refer to page 54 “Auxiliary Hydraulic Lines”.
Adjusting the Stroke of the Auxiliary
Pedal
When using a hydraulic breaker, adjust the
stroke so that the auxiliary pedal will not
pushed down to the side (B) when treaded
on unintentionally.
When using a reversible attachment, a
readjustment is required to enable the
auxiliary pedal operable at the side (B).
When using a hydraulic breaker
(1-way flow)
1. Make sure the auxiliary pedal is in the
neutral position.
2. Loosen the lock nut (1).
3. Screw out the adjusting bolt (2) until its
head touches the pedal.
4. Tighten the lock nut (1) to secure the
adjusting bolt (2).
When using a reversible attachment
(2-way flow)
1. Loosen the lock nut (1) and screw in the
adjusting bolt (2) completely.
2. Push down on the side (B) of the auxiliary
pedal and hold it at the stroke end.
3. Screw out the adjusting bolt (2) until its
head touches the pedal.
4. Tighten the lock nut (1) to secure the
adjusting bolt (2).
G4D0031
b
a
S
O
1
2
A
B
D5D026
D5D027
A
B
1
2
A B

Takeuchi TB014 Specifications

General

Engine	Yanmar 3TNV70
Overall Width	980 mm
Transport Width	980 mm
Bucket Capacity	0.04 m3
Max Digging Depth	2260 mm
