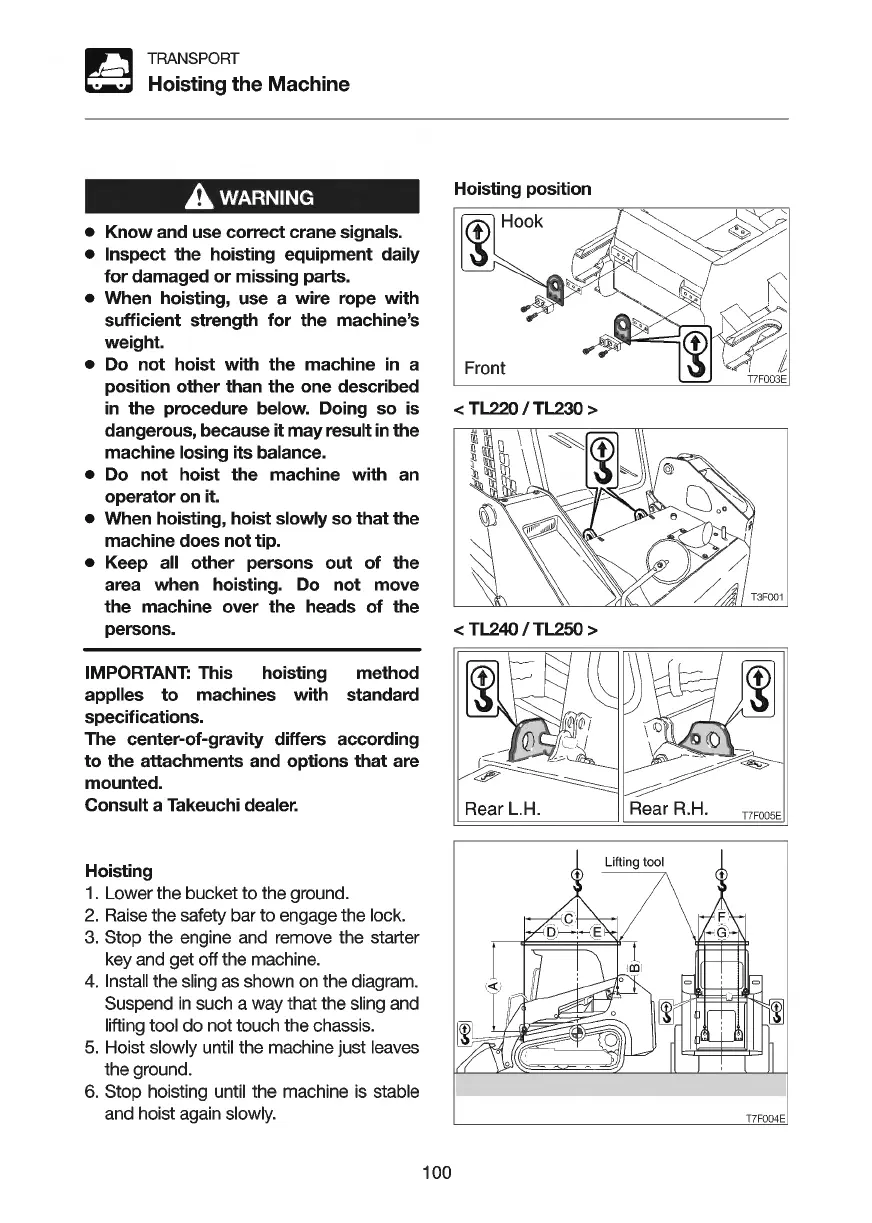

TRANSPORT
Hoisting the Machine
AwARNING
•
Know
and use correct crane signals.
• Inspect the hoisting equipment daily
for
damaged
or
missing parts.
• When hoisting, use a wire rope with
sufficient strength
for
the machine's
weight.
• Do
not
hoist with the machine in a
position other than the one described
in the procedure below. Doing so is
dangerous, because
it
may result in the
machine losing its balance.
• Do
not
hoist the machine with an
operator on it.
• When hoisting, hoist slowly so
that
the
machine does
not
tip.
• Keep all other persons
out
of
the
area when hoisting. Do
not
move
the machine over the heads
of
the
persons.
IMPORTANT: This hoisting method
applles
to
machines with standard
specifications.
The center-of-gravity differs according
to
the attachments and options
that
are
mounted.
Consult a Takeuchi dealer.
Hoisting
1. Lower the bucket
to
the ground.
2. Raise the safety bar
to
engage the lock.
3. Stop the engine and remove the starter
key and get off the machine.
4. Install the sling as shown on the diagram.
Suspend
in
such a way that the sling and
lifting tool
do
not touch the chassis.
5. Hoist slowly until the machine just leaves
the ground.
6. Stop hoisting until the machine is stable
and hoist again slowly.
Hoisting position
< TL240 I TL250 >
Rear L.H.
T7F005E
T7F004E
100
