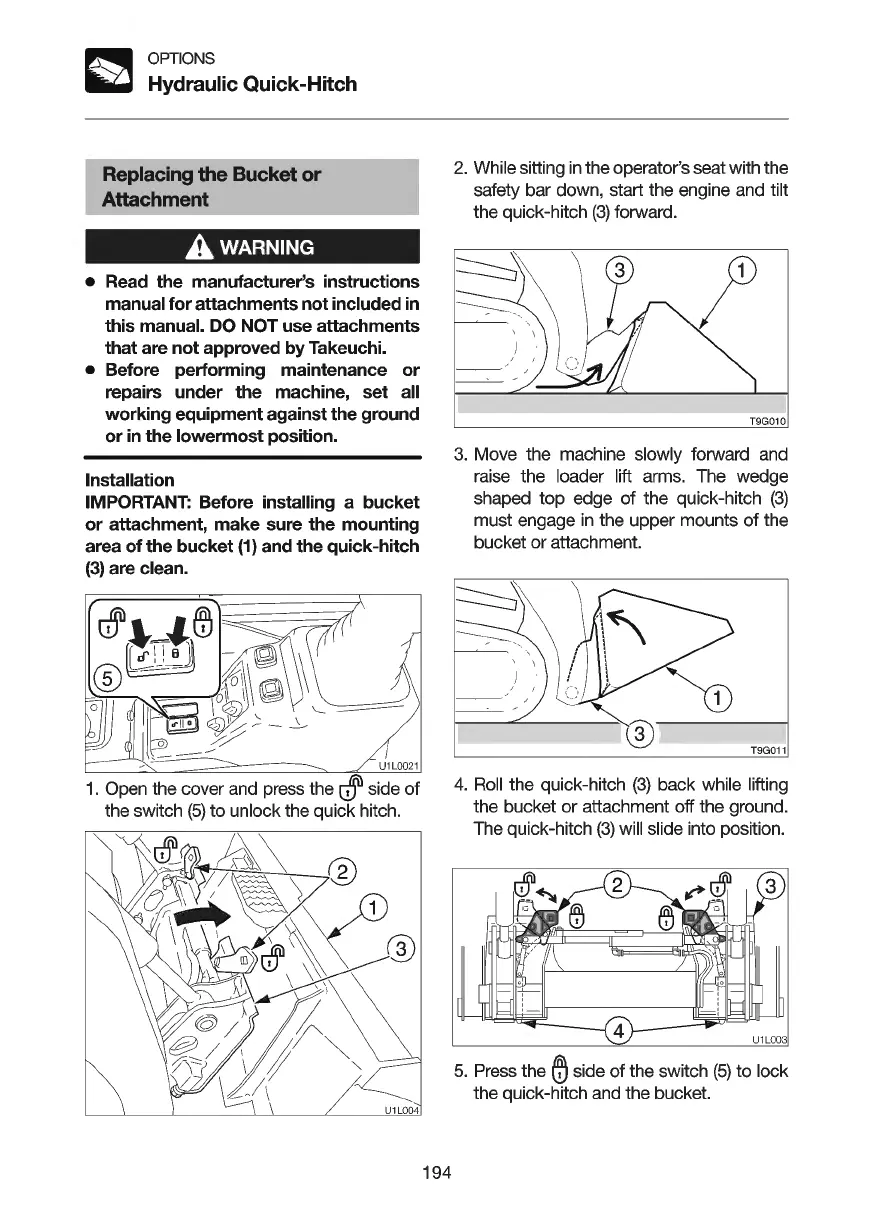

OPTIONS
Hydraulic Quick-Hitch
Replacing the Bucket or
Attachment
AwARNING
• Read the manufacturer's instructions
manual for attachments not included
in
this manual. DO NOT use attachments
that are not approved by Takeuchi.
• Before performing maintenance or
repairs under the machine, set
all
working equipment against the ground
or
in
the lowermost position.
Installation
IMPORTANT: Before installing a bucket
or attachment, make sure the mounting
area of the bucket
(1)
and the quick-hitch
(3)
are clean.
U1L0021
1 . Open the cover and press the
dJ
side
of
the switch
(5)
to unlock the quick hitch.
194
2.
While sitting
in
the operator's seat with the
safety bar down, start the engine and tilt
the quick-hitch
(3)
forward.
T9G010
3. Move the machine slowly forward and
raise the loader lift arms. The wedge
shaped top edge of the quick-hitch
(3)
must engage
in
the upper mounts
of
the
bucket or attachment.
T9G0
11
4.
Roll
the quick-hitch (
3)
back while lifting
the bucket or attachment off the ground.
The quick-hitch
(3)
will slide into position.
5. Press the
efJ
side of the switch
(5)
to lock
the quick-hitch and the bucket.
To Next Page
