Takeuchi TL220 User Manual

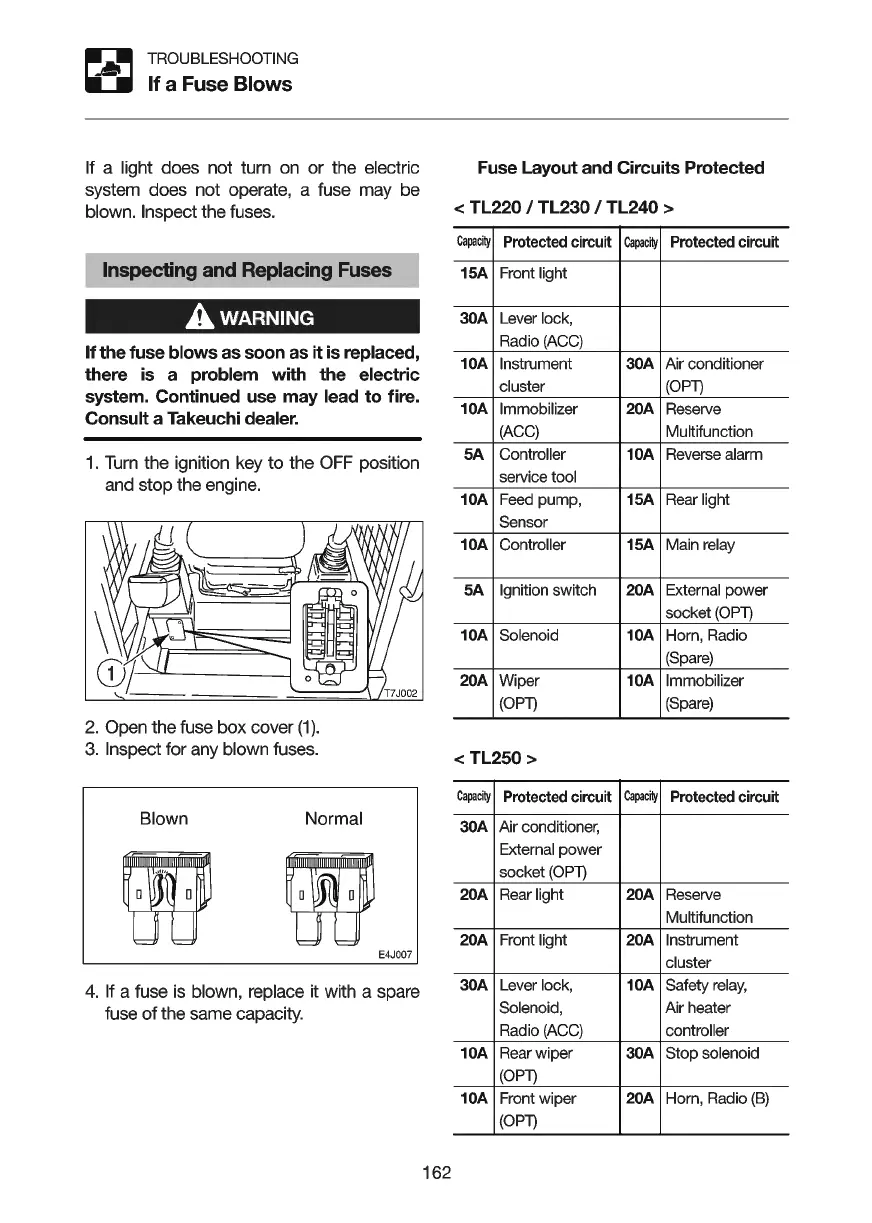

TROUBLESHOOTING
If a Fuse Blows
If a light does not turn on or the electric
system does not operate, a fuse may be
blown. Inspect the fuses.
Inspecting and Replacing Fuses
AwARNING
If the fuse blows as soon as it is replaced,
there is a problem with the electric
system. Continued use may lead
to fire.
Consult a Takeuchi dealer.
1. Turn the ignition key to the OFF position
and stop the engine.
2. Open the fuse box cover (1).
3. Inspect for any blown fuses.
Blown Normal
~
,
D D
E4J007
4. If a fuse is blown, replace it with a spare
fuse
of the same capacity.
162
Fuse Layout and Circuits Protected
< TL220 I TL230 I TL240 >
Capacity
Protected circuit
Capacity
Protected circuit
1SA Front light
30A Lever lock,
Radio(ACC)
10A Instrument 30A Air conditioner
cluster (OPl)
10A Immobilizer 20A Reserve
(ACC)
Multifunction
SA Controller 10A Reverse alarm
service tool
10A Feed pump, 1SA Rear light
Sensor
10A Controller 1SA Main relay
SA Ignition switch 20A External power
socket
(OPl)
10A Solenoid 10A Horn, Radio
(Spare)
20A Wiper 10A Immobilizer
(OPl) (Spare)
< TL250 >
Capacity
Protected circuit
Capacity
Protected circuit
30A Air conditioner,
External power
socket
(OPl)
20A Rear light 20A Reserve
Multifunction
20A Front light 20A Instrument
cluster
30A Lever lock, 10A Safety relay,
Solenoid,
Air heater
Radio(ACC)
controller
10A Rear wiper 30A Stop solenoid
(OPl)
10A Front wiper 20A Horn, Radio (B)
(OPl)
