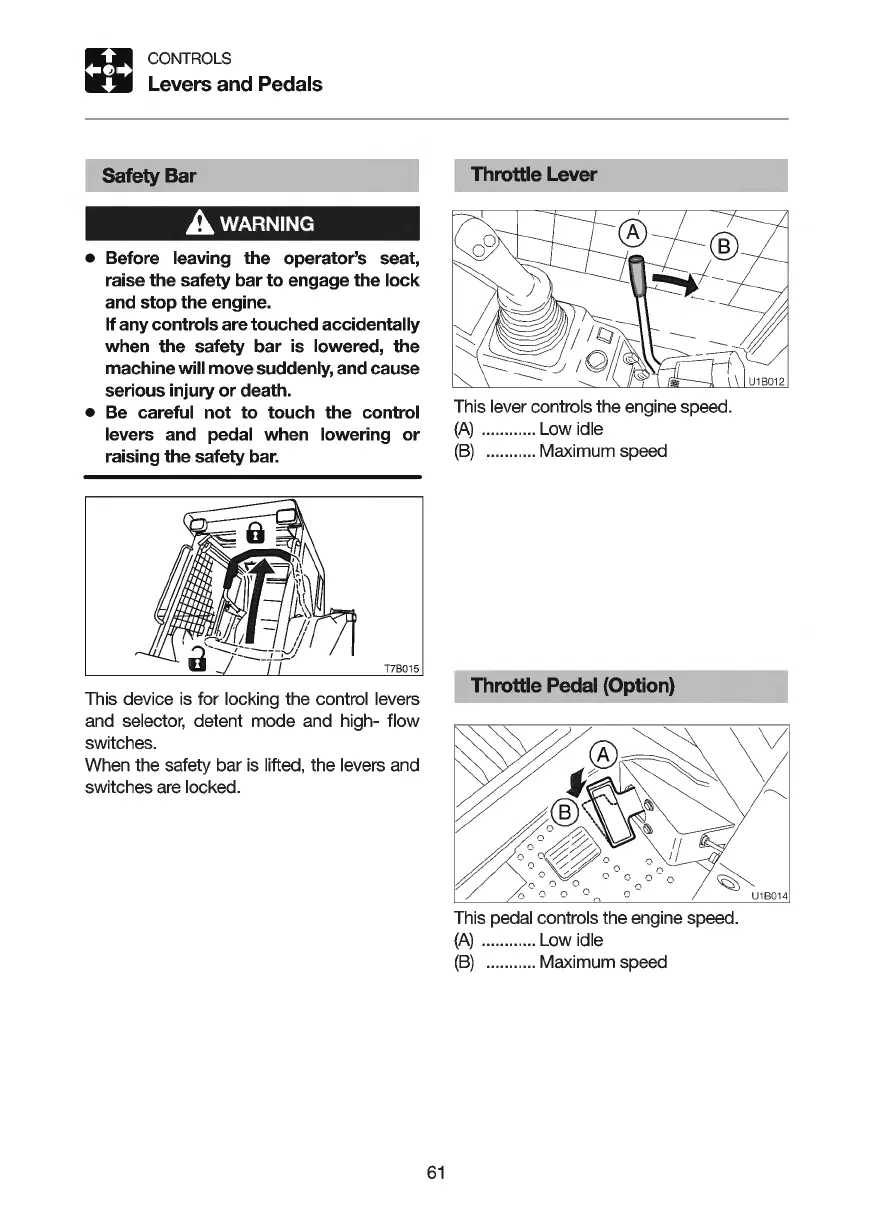

CONTROLS

Levers

and

Pedals

Safety Bar

WARNING

• Before leaving

the

operator's seat,

raise

the

safety

bar

engage

the

lock

and

stop

the engine.

any controls are

touched

accidentally

when

the

safety

bar

is lowered,

the

machine will move suddenly, and cause

serious injury

death.

• Be careful

not

touch

the

control

levers and pedal when lowering

raising

the

safety bar.

T7B015

This device

for locking the control levers

and selector, detent mode and high- flow

switches.

When the safety bar is lifted, the levers and

switches are locked.

Throttle Lever

This lever controls the engine speed.

(A)

............ Low idle

(B)

...

..... Maximum speed

Throttle Pedal (Option)

This pedal controls the engine speed.

(A)

....

...

..... Low idle

(B)

...

. Maximum speed
