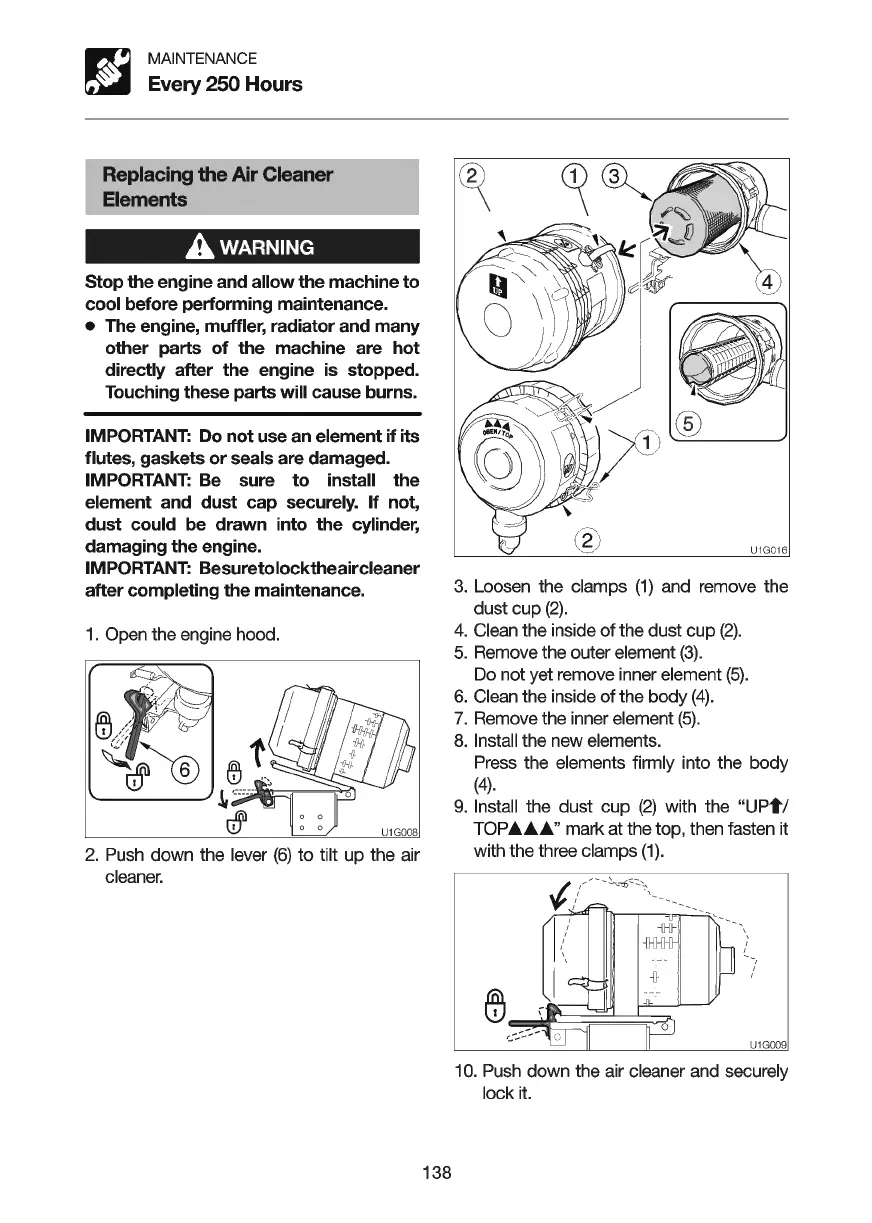

MAINTENANCE
Every 250
Hours
Replacing
the
Air
Cleaner
Elements
AwARNING
Stop the engine and allow the machine
to
cool before performing maintenance.
• The engine, muffler, radiator and many
other parts
of
the machine are
hot
directly after the engine is stopped.
Touching these parts will cause burns.
IMPORTANT: Do
not
use an element
if
its
flutes, gaskets
or
seals are damaged.
IMPORTANT: Be sure
to
install the
element and
dust
cap securely.
If
not,
dust
could be drawn into the cylinder,
damaging the engine.
IMPORTANT: Besuretolocktheaircleaner
after completing the maintenance.
1. Open the engine hood.
2.
Push down the lever
(6)
to tilt up the air
cleaner.
138
3. Loosen the clamps
(1)
and remove the
dust cup
(2)
.
4.
Clean the inside of the dust cup
(2).
5.
Remove the outer element
(3).
Do not yet remove inner element
(5).
6. Clean the inside of the body
(4)
.
7. Remove the inner element
(5)
.
8. Install the new elements.
Press the elements firmly into the body
(4)
.
9.
Install the dust cup
(2)
with the "
UPt
/
TOP.A..A..A.
" mark at the
top
, then fasten it
with the three clamps
(1)
.
'
'
'
-,
'
'
U1G009
10. Push down the air cleaner and securely
lock it.
