CONTROLS
Seat and
Seat
Belt

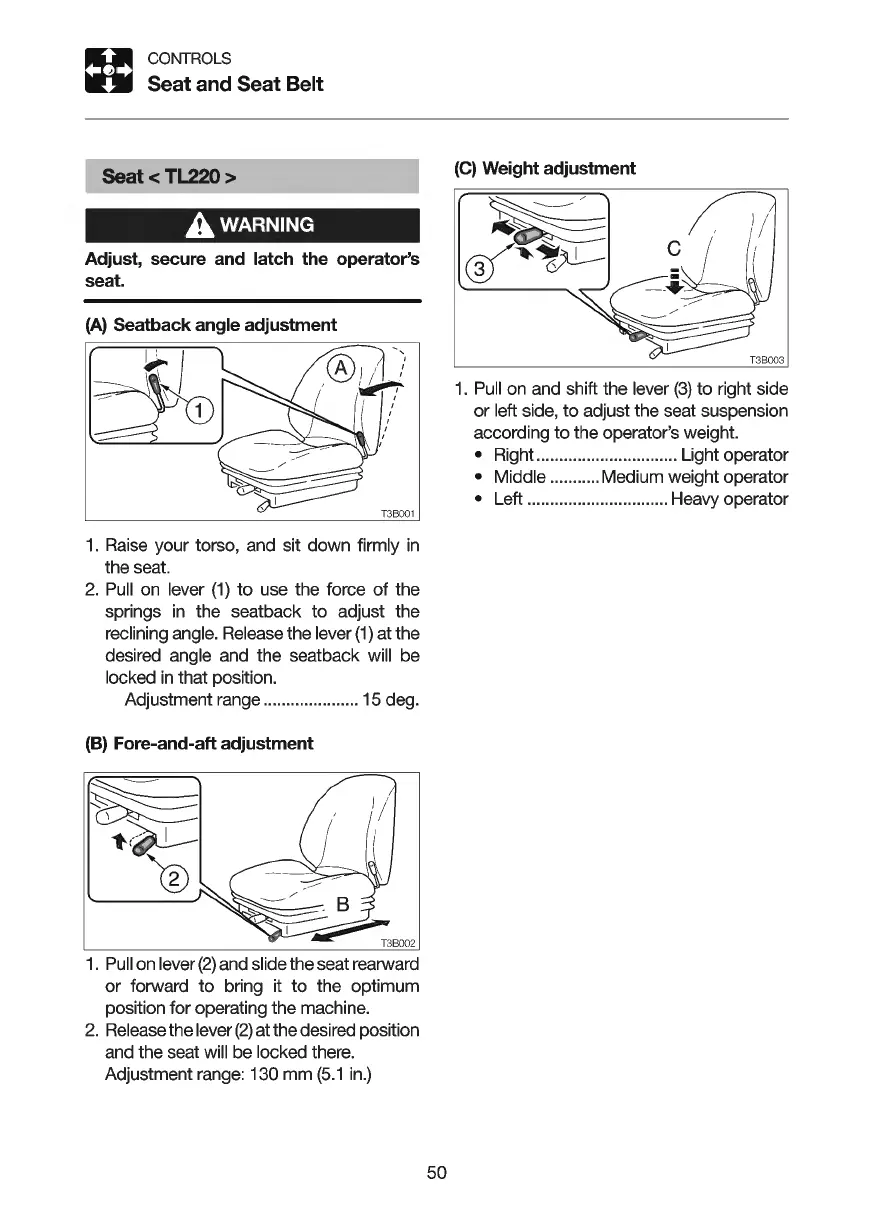

Seat < TL220 >
AwARNING
Adjust, secure and latch the operator's
seat.
(A)
Seatback angle adjustment
1.
Raise your torso, and sit down firmly
in
the seat.
2.
Pull
on
lever
(1)
to use the force
of
the
springs
in
the seatback to adjust the
reclining angle. Release the lever
(1)
at the
desired angle and the seatback will be
locked
in
that position.
Adjustment range ......
...
..
...
...
.... 15 deg.
(B)
Fore-and-aft adjustment
1.
Pull
on lever
(2)
and slide the seat rearward
or forward to bring it to the optimum
position for operating the machine.
2.
Release the lever
(2)
atthe
desired position
and the seat will be locked there.
Adjustment range: 130 mm
(5
.1
in
.)
50
(C)
Weight adjustment
1 .
Pull
on and shift the lever
(3)
to right side
or left side, to adjust the seat suspension
according to the operator's weight.
• Right... ..
.....
...
...
...........
....
Light operator
• Middle ........... Medium weight operator
• Left ............................... Heavy operator
To Next Page
