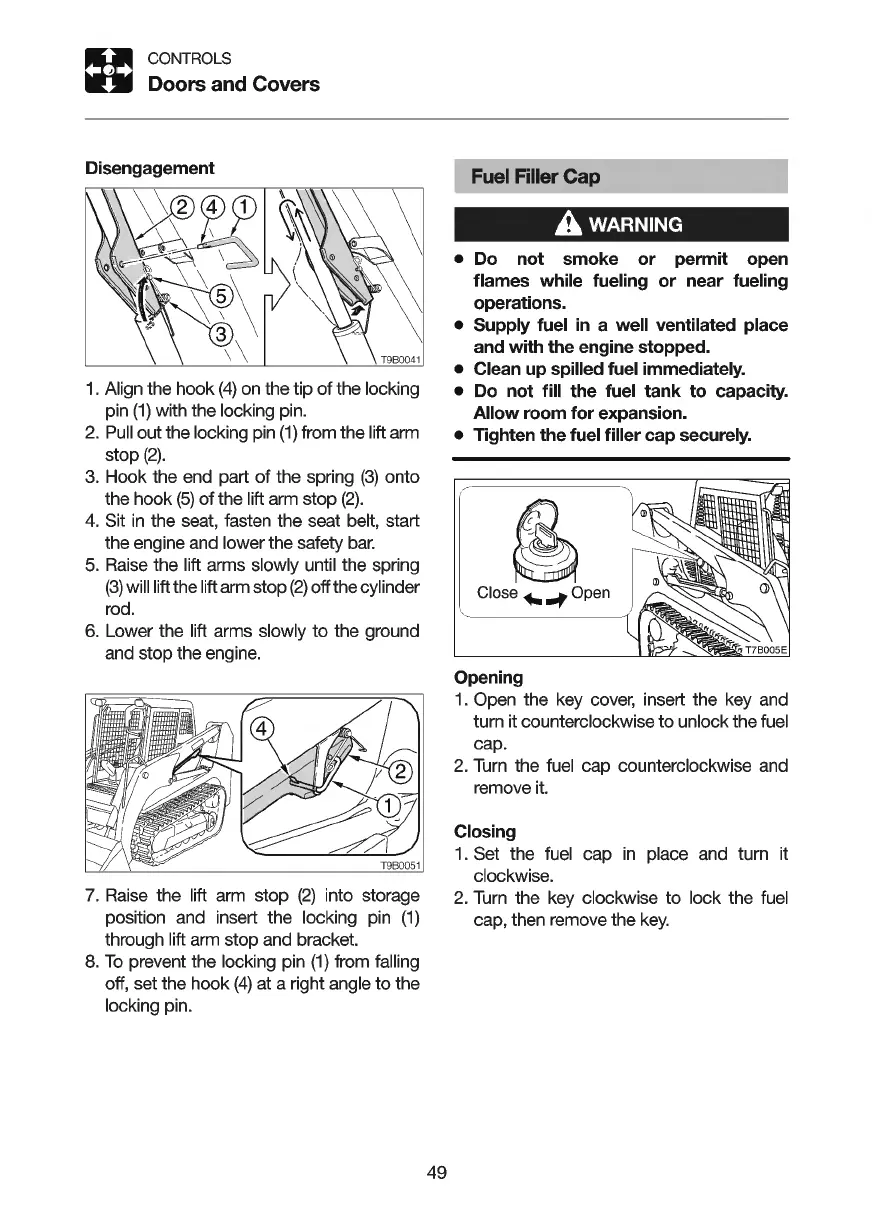

CONTROLS
Doors
and
Covers
Disengagement
1.
Align the hook
(4)
on the tip
of
the locking
pin
(1)
with the locking pin.
2.
Pull
out the locking pin
(1)
from the lift arm
stop
(2).
3. Hook the end part
of
the spring
(3)
onto
the hook
(5)
of
the lift arm stop
(2)
.
4.
Sit
in
the seat, fasten the seat belt, start
the engine and lower the safety
bar.
5.
Raise the lift arms slowly until the spring
(3)
will lift the lift arm stop
(2)
off the cylinder
rod.
6. Lower the lift arms slowly to the ground
and stop the engine.
7.
Raise the lift arm stop
(2)
into storage
position and insert the locking pin
(1)
through lift arm stop and bracket.
8.
To
prevent the locking pin
(1)
from falling
off, set the hook
(4)
at a right angle to the
locking pin.
49
Fuel Filler
Cap
AwARNING
•
Do
not smoke or permit open
flames while fueling or near fueling
operations.
• Supply fuel
in
a well ventilated place
and with the engine stopped.
• Clean up spilled fuel immediately.
• Do not
fill
the fuel tank to capacity.
Allow room for expansion.
• Tighten the fuel filler cap securely.
~
Close
~
-t
Open
Opening
1.
Open the key cove
r,
insert the key and
turn it counterclockwise to unlock the fuel
cap.
2.
Turn
the fuel cap counterclockwise and
remove
it.
Closing
1 . Set the fuel cap
in
place and turn it
clockwise.
2.
Turn
the key clockwise to lock the fuel
cap, then remove the
key.
