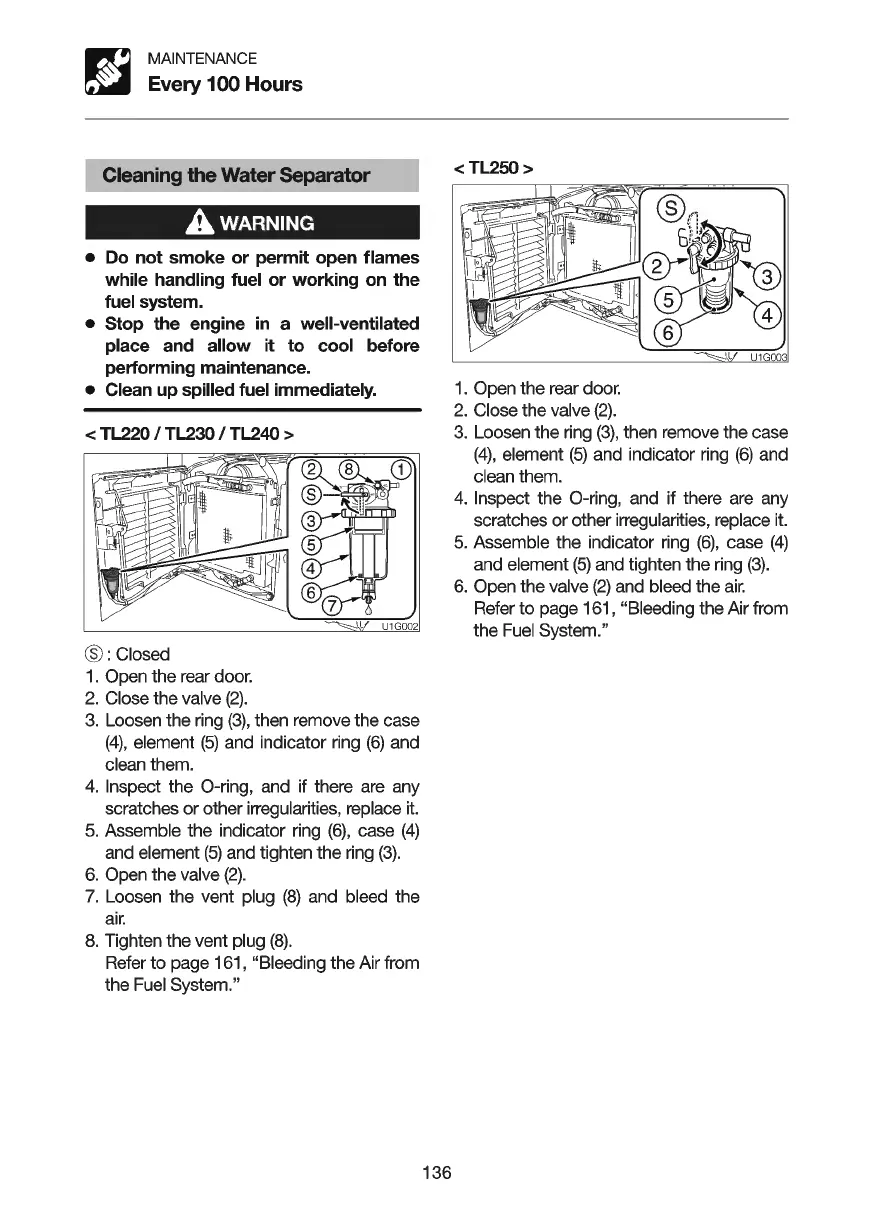

Takeuchi TL220 User Manual

MAINTENANCE
Every 100 Hours
Cleaning the Water Separator
AwARNING
• Do not smoke or permit open flames
while handling fuel or working
on the
fuel system.
• Stop the engine
in a well-ventilated
place and allow
it to cool before
performing maintenance.
• Clean
up spilled fuel immediately.
< TL220 I TL230 I TL240 >
®: Closed
1 . Open the rear door.
2. Close the valve
(2).
3. Loosen the ring (3) , then remove the case
(4) , element (5) and indicator ring (6) and
clean them.
4. Inspect the 0-ring, and if there are any
scratches
or other irregularities, replace it.
5. Assemble the indicator ring (6), case (4)
and element (5) and tighten the ring (3) .
6. Open the valve (2) .
7. Loosen the vent plug (8) and bleed the
air.
8. Tighten the vent plug (8) .
Refer
to page 161, "Bleeding the Air from
the Fuel System."
136
<TL250>
1 . Open the rear door.
2. Close the valve (2).
3. Loosen the ring (3), then remove the case
(4) , element (5) and indicator ring (6) and
clean them.
4. Inspect the 0-ring, and if there are any
scratches
or other irregularities, replace it.
5. Assemble the indicator ring (6), case (4)
and element (5) and tighten the ring (3).
6. Open the valve (2) and bleed the air.
Refer
to page 161, "Bleeding the Air from
the Fuel System."
