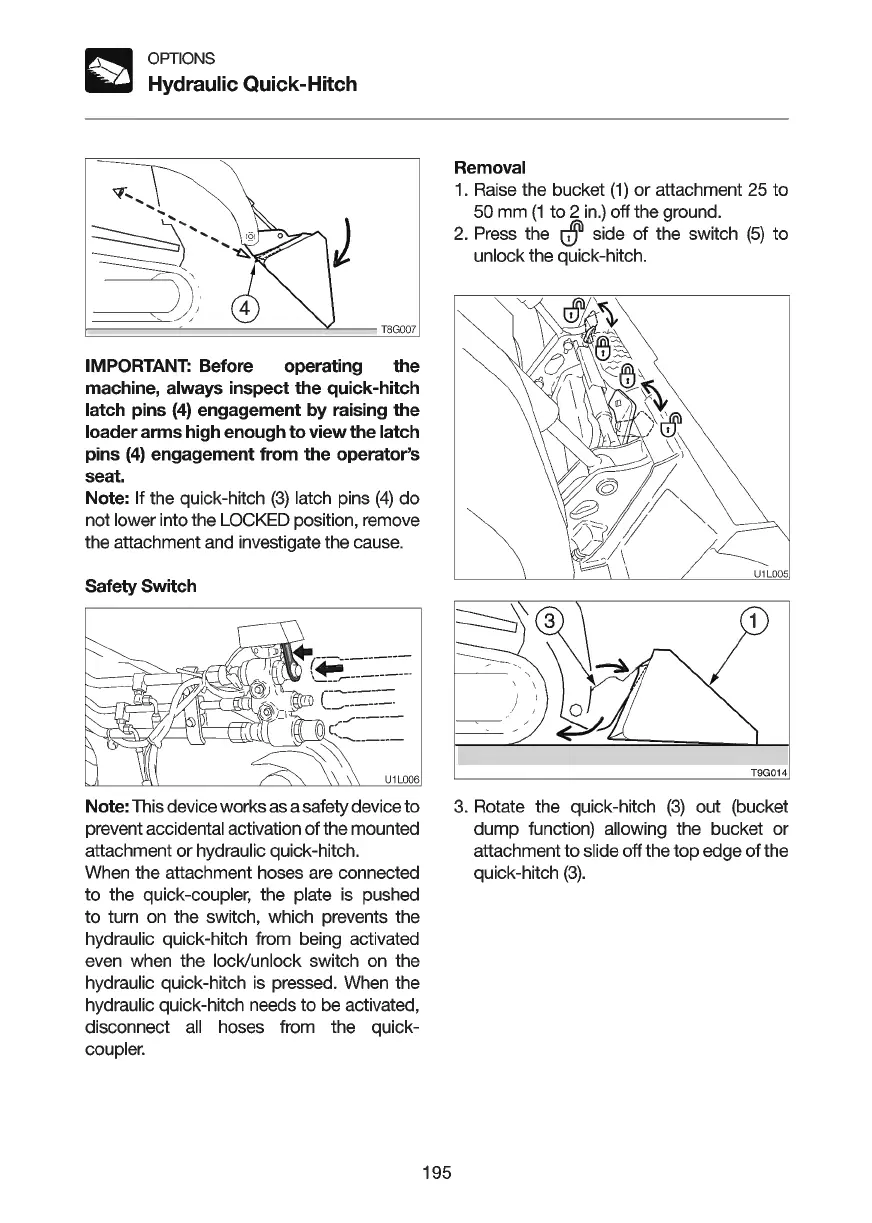

OPTIONS
Hydraulic Quick-Hitch
"('
....
~
--,,
@
~
O
J
~\
/
--~,~~/~/
©
1
----~-----~~-T8GOQ
7
IMPORTANT: Before operating the
machine, always inspect the quick-hitch
latch pins
(4)
engagement by raising the
loader arms high enough to view the latch
pins
(4)
engagement from the operator's
seat.
Note:
If the quick-hitch
(3)
latch pins
(4)
do
not lower into the LOCKED position, remove
the attachment and investigate the cause.
Safety Switch
Note:
This device works as a safety device to
prevent accidental activation of the mounted
attachment or hydraulic quick-hitch.
When the attachment hoses
are
connected
to the quick-coupler, the plate
is
pushed
to turn on the switch, which prevents the
hydraulic quick-hitch from being activated
even when the lock/unlock switch on the
hydraulic quick-hitch
is
pressed. When the
hydraulic quick-hitch needs to be activated,
disconnect
all
hoses from the quick-
coupler.
195
Removal
1.
Raise
the bucket
(1)
or attachment 25 to
50 mm
(1
to 2
in.)
off the ground.
2.
Press the
dJ
side of the switch
(5)
to
unlock the quick-hitch.
l
T9G014
3.
Rotate the quick-hitch
(3)
out (bucket
dump function) allowing the bucket or
attachment to slide off the top edge
of
the
quick-hitch
(3)
.
To Next Page
