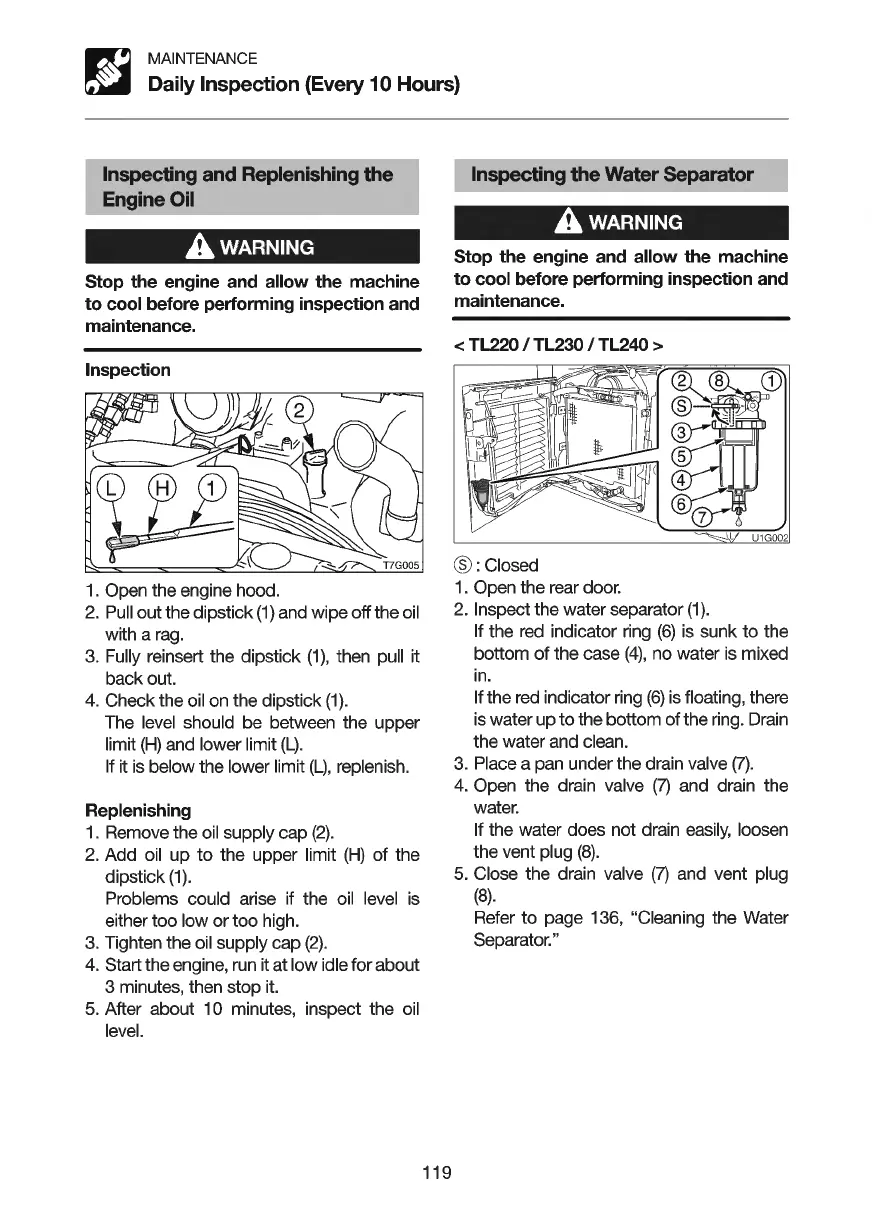

MAINTENANCE
Daily Inspection (Every
10
Hours)
Inspecting and Replenishing the
Engine Oil
AwARNING
Stop the engine and allow the machine
to cool before performing inspection and
maintenance.
Inspection
1.
Open the engine hood.
2.
Pull
out the dipstick
(1)
and wipe off the
oil
with a
rag
.
3. Fully reinsert the dipstick
(1
),
then pull it
back out.
4.
Check the oil on the dipstick
(1)
.
The level should be between the upper
limit
(H)
and lower limit
(L).
If it
is
below the lower limit
(L)
, replenish.
Replenishing
1.
Remove the oil supply cap
(2)
.
2.
Add oil up to the upper limit
(H)
of the
dipstick
(1)
.
Problems could arise if the oil level is
either too low or too high.
3.
Tighten the oil supply cap
(2)
.
4.
Start the engine,
run
it at low idle for about
3 minutes, then stop
it.
5.
After about 10 minutes, inspect the
oil
level.
119
Inspecting the Water Separator
AwARNING
Stop the engine and allow the machine
to cool before performing inspection and
maintenance.
< TL220 I TL230 I TL240 >
® : Closed
1 . Open the rear door.
2. Inspect the water separator
(1)
.
If the
red
indicator ring
(6)
is sunk to the
bottom
of
the case
(4),
no water is mixed
in
.
If the
red
indicator ring
(6)
is floating, there
is
water up to the bottom of the ring. Drain
the water and clean.
3.
Place a pan under the drain valve
(7).
4.
Open the drain valve
(7)
and drain the
water.
If the water does not drain easily, loosen
the vent plug
(8)
.
5.
Close the drain valve
(7)
and vent plug
(8).
Refer to page 136, "Cleaning the Water
Separator."
