OPTIONS
Air
Conditioner

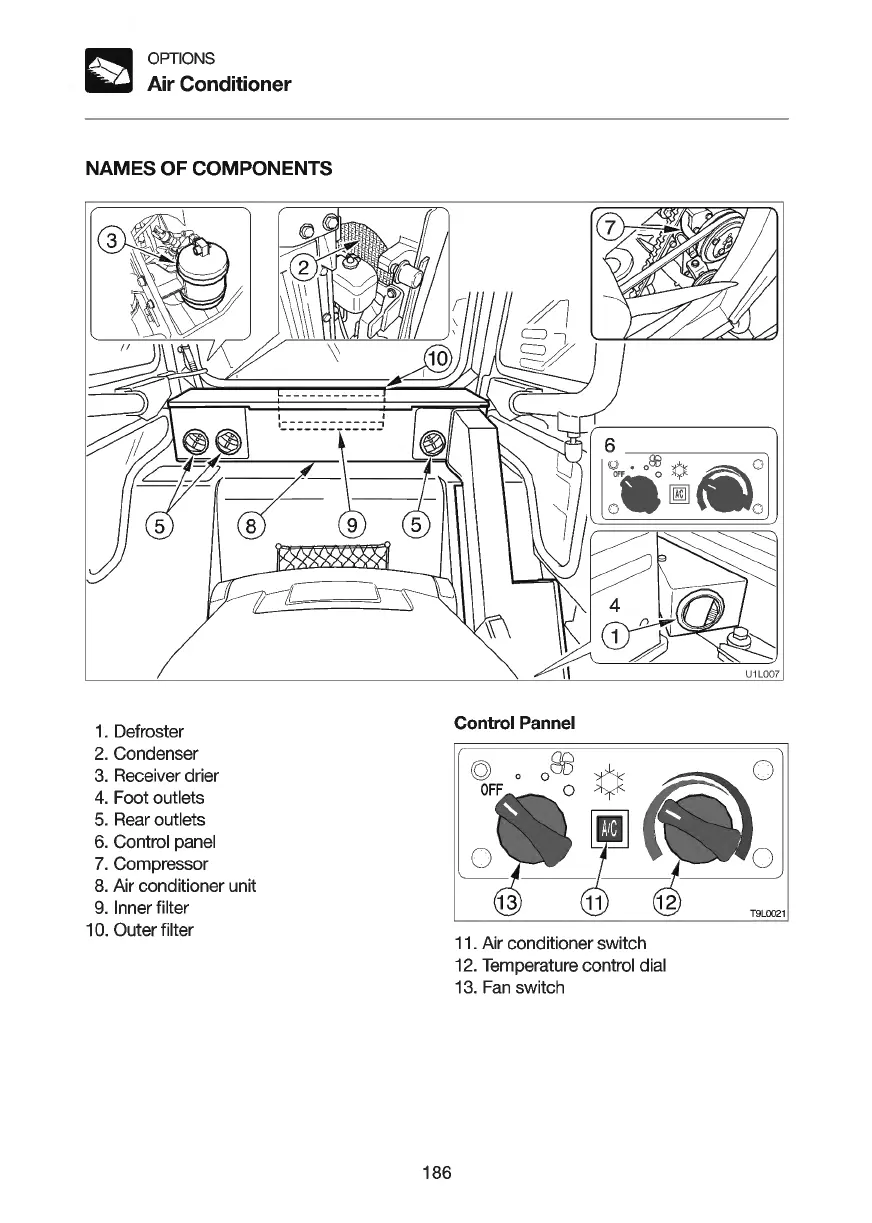

NAMES
OF
COMPONENTS
1
.
Defroster
2
.
Condenser
3.
Receiver
drier
4.
Foot
outlets
5.
Rear
outlets
6.
Control
panel
?
.
Compressor
8.
Air
conditioner
unit
9.
Inner
filter
1
o.
Outer
filter
186
Control
Pannel
11.
Air
conditioner
switch
12
.
Temperature
control
dial
13.
Fan
switch
187
189
Table of Contents
Table of Contents
7
Introduction
4
Machine Description
5
Table of Contents
7
Safety
9
Controls
41
Names of Components
42
Doors and Covers
44
Seat and Seat Belt
52
Instrument Panel
56
Switches
58
Levers and Pedals
63
Accessories
65
~Operation
75
Operation
75
Before Starting Operation
76
Starting and Stopping the Engine
77
Machine Operation
80
Operating Procedures
88
Parking the Machine
96
Operating in Cold Weather
97
Using Rubbertracks
98
~Transport
101
Transport
101
Hoisting the Machine
102
Loading and Unloading
104
Securing the Machine
105
Cautions on Transporting
106
Maintenance
107
General
108
Service Data
110
Important Parts
115
Maintenance Chart
116
Walk-Around Inspection
118
Daily Inspection (Every 10 Hours)
120
After First 50 Hours (New Machines Only)
126
Every 50 Hours
132
Every 100 Hours
138
After First 250 Hours (New Machines Only)
139
Every 250 Hours
140
Every 500 Hours
142
Every 1000 Hours
146
Every 1500 Hours
150
Every 2000 Hours
151
Every 3000 Hours
151
When Required
152
Long-Term Storage
157
Troubleshooting
159
Symptoms that Are Not Malfunctions
160
If the Engine Overheats
161
If the Battery Goes Dead
162
After the Fuel Runs out
163
If a Fuse Blows
164
If a Warning Lamp Flashes
166
Other Symptoms
168
To Lower the Lift Arms
170
Towing
171
Specifications
173
~Options
183
Options
183
General Precautions
184
Seat {With Switch)
186
Air Conditioner
187
Hydraulic Quick-Hitch
196
Quick-Couplers
198
4-Port Quick-Coupler <TL240/TL250
200
Optional Equipment Mass
201
Options
202
TL250 High Ambient Cooling Package
202
Index
