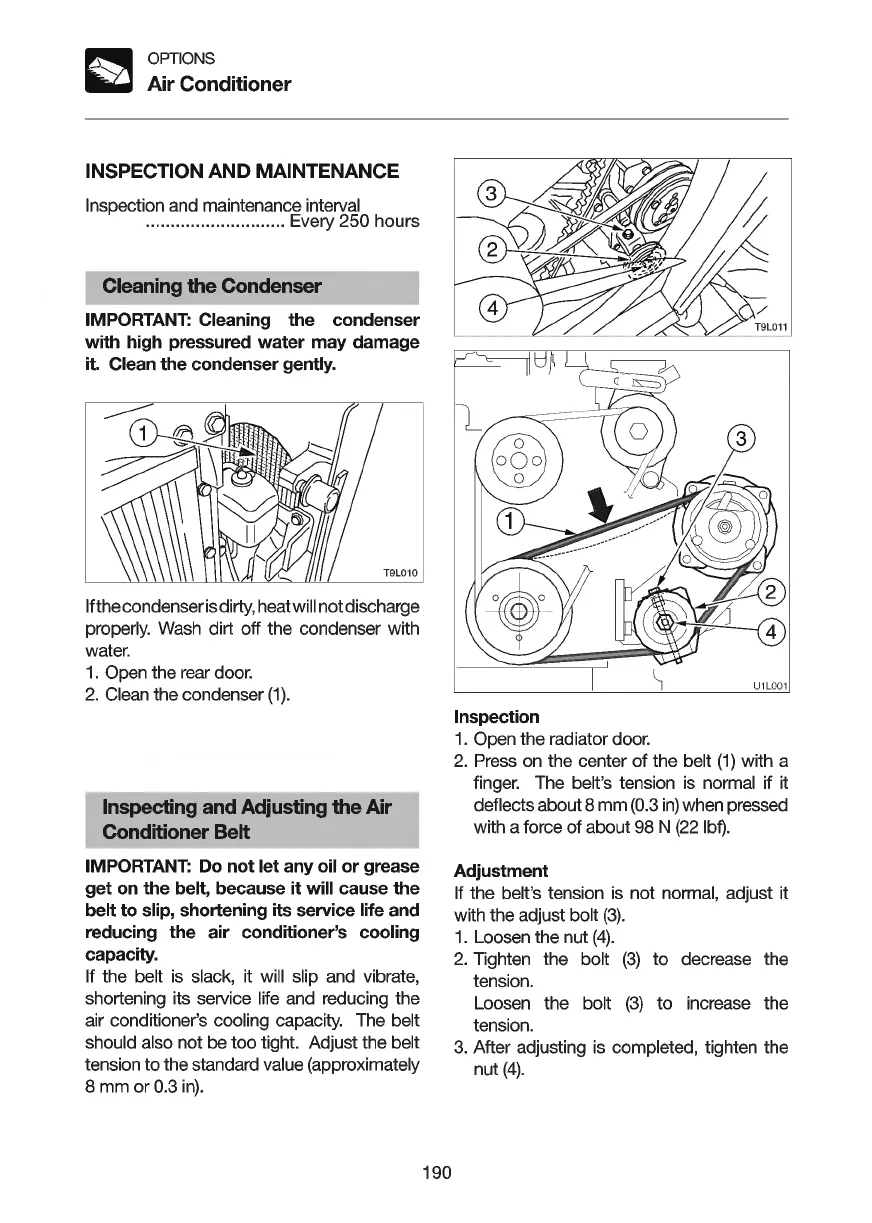

OPTIONS
Air Conditioner
INSPECTION AND MAINTENANCE
Inspection and maintenance interval
............................ Every 250 hours
Cleaning the Condenser
IMPORTANT: Cleaning the condenser
with high pressured water may damage
it.
Clean the condenser gently.
If the condenser
is
dirty, heat will not discharge
properly. Wash dirt off the condenser with
water.
1 . Open the rear door.
2.
Clean the condenser
(1).
Inspecting and Adjusting the Air
Conditioner Belt
IMPORTANT: Do not let any
oil
or grease
get
on
the belt, because it will cause the
belt to
slip,
shortening its service life and
reducing the air conditioner's cooling
capacity.
If the belt
is
slack, it will slip and vibrate,
shortening its service life and reducing the
air conditioner's cooling capacity. The belt
should also not be too tight. Adjust the belt
tension
to
the standard value (approximately
8 mm
or
0.3
in).
190
Inspection
1.
Open the radiator door.
2.
Press on the center
of
the belt
(1)
with a
finger. The belt's tension
is
normal if it
deflects about
8
mm
(0
.3
in)
when pressed
with a force
of
about 98 N
(22
lbf).
Adjustment
If the belt's tension is not normal, adjust it
with the adjust bolt
(3).
1.
Loosen the nut
(4).
2.
Tighten the bolt
(3)
to
decrease the
tension.
Loosen the bolt
(3)
to
increase the
tension.
3. After adjusting
is
completed, tighten the
nut
(4).
