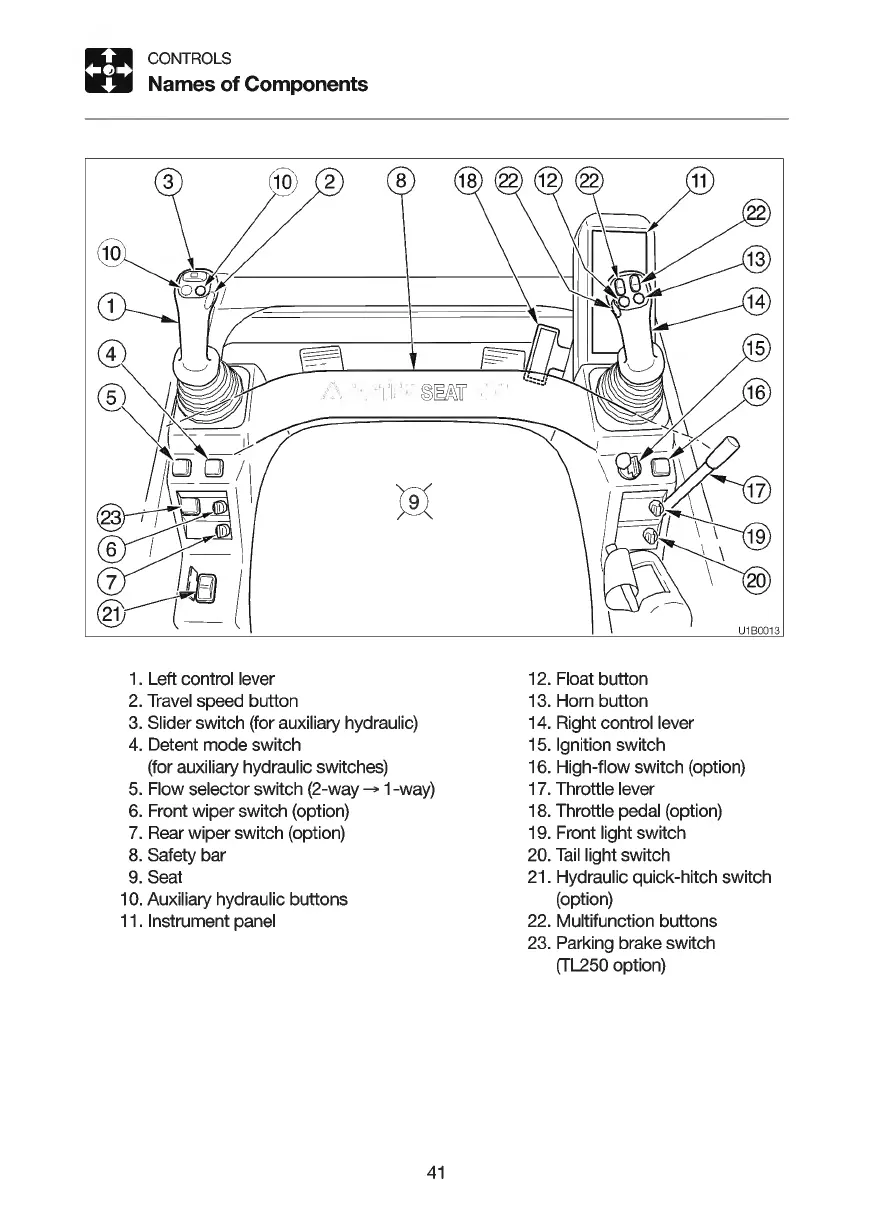

CONTROLS
Names of Components
1 . Left control lever
2.
Travel speed button
3. Slider switch (for auxiliary hydraulic)
4.
Detent mode switch
(for auxiliary hydraulic switches)
5.
Flow selector switch
(2-way-+
1-way)
6.
Front wiper switch (option)
7. Rear wiper switch (option)
8.
Safety bar
9.
Seat
10. Auxiliary hydraulic buttons
11. Instrument panel
41
12. Float button
13. Horn button
14. Right control lever
15. Ignition switch
16. High-flow switch (option)
17. Throttle lever
18. Throttle pedal (option)
19. Front light switch
20.
Tail
light switch
21. Hydraulic quick-hitch switch
(option)
22. Multifunction buttons
23. Parking brake switch
(fl250
option)
