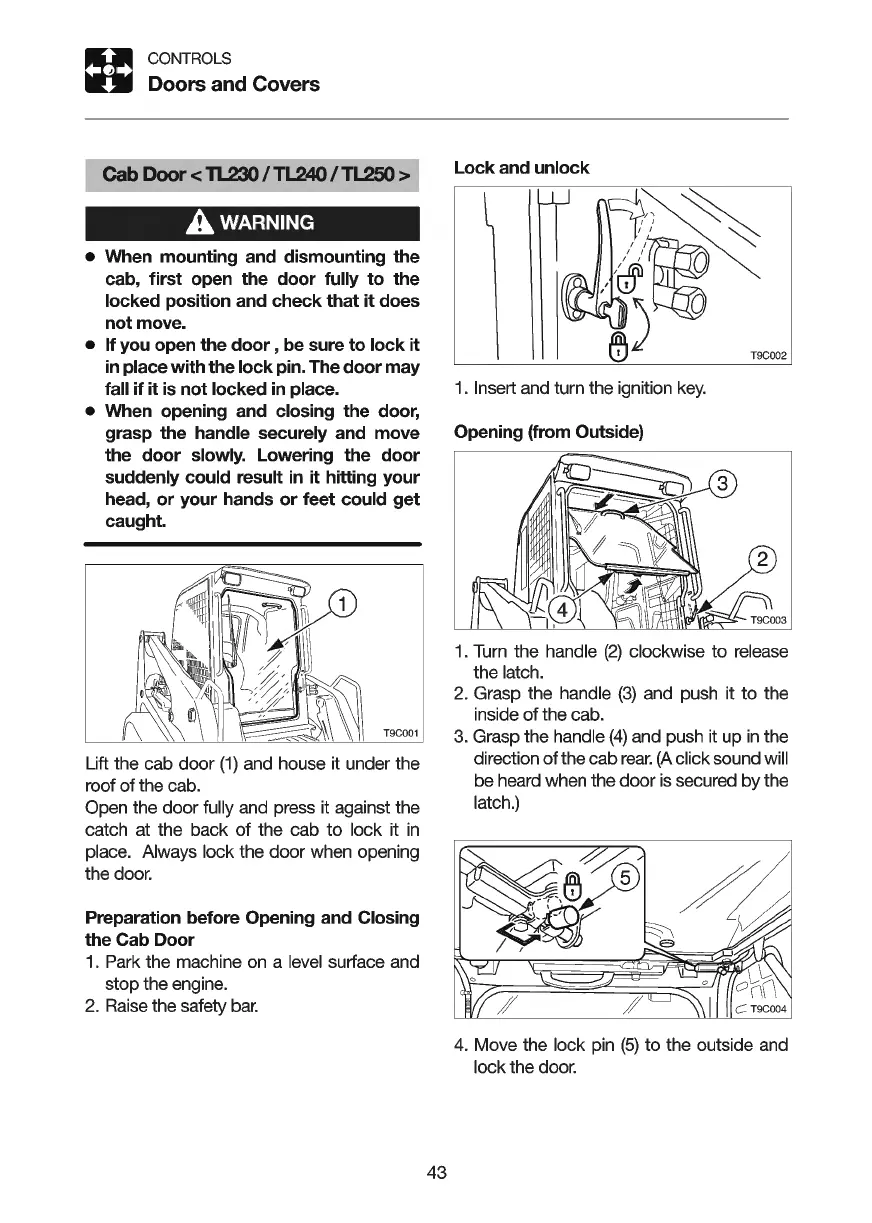

CONTROLS
Doors and Covers
Cab Door<
TL.230
I TL240 I TL250 >
AwARNING
• When mounting and dismounting the
cab, first open the door fully to the
locked position and check that it does
not move.
• If you open the door , be sure to lock it
in
place with the lock pin. The door may
fall if it
is
not locked
in
place.
• When opening and closing the door,
grasp the handle securely and move
the door slowly. Lowering the door
suddenly could result
in
it hitting your
head, or your hands or feet could get
caught.
T9C001
Lift the cab door
(1)
and house it under the
roof
of
the cab.
Open the door fully and press it against the
catch at the back
of
the cab to lock it
in
place. Always lock the door when opening
the door.
Preparation before Opening and Closing
the Cab Door
1. Park the machine
on
a level surface and
stop the engine.
2.
Raise the safety
bar.
43
Lock and unlock
FY,
:
~
I/
~~
, , a
, ,
/Cff
(f)
Q
T9C002
1.
Insert and turn the ignition
key.
Opening (from Outside)
1.
Turn
the handle
(2)
clockwise to release
the latch.
2.
Grasp the handle
(3)
and push
it
to the
inside
of
the cab.
3.
Grasp the handle
(4)
and push it up
in
the
direction
of
the cab
rear.
(A
click sound will
be heard when the door
is
secured by the
latch.)
4. Move the lock pin
(5)
to the outside and
lock the door.
To Next Page
