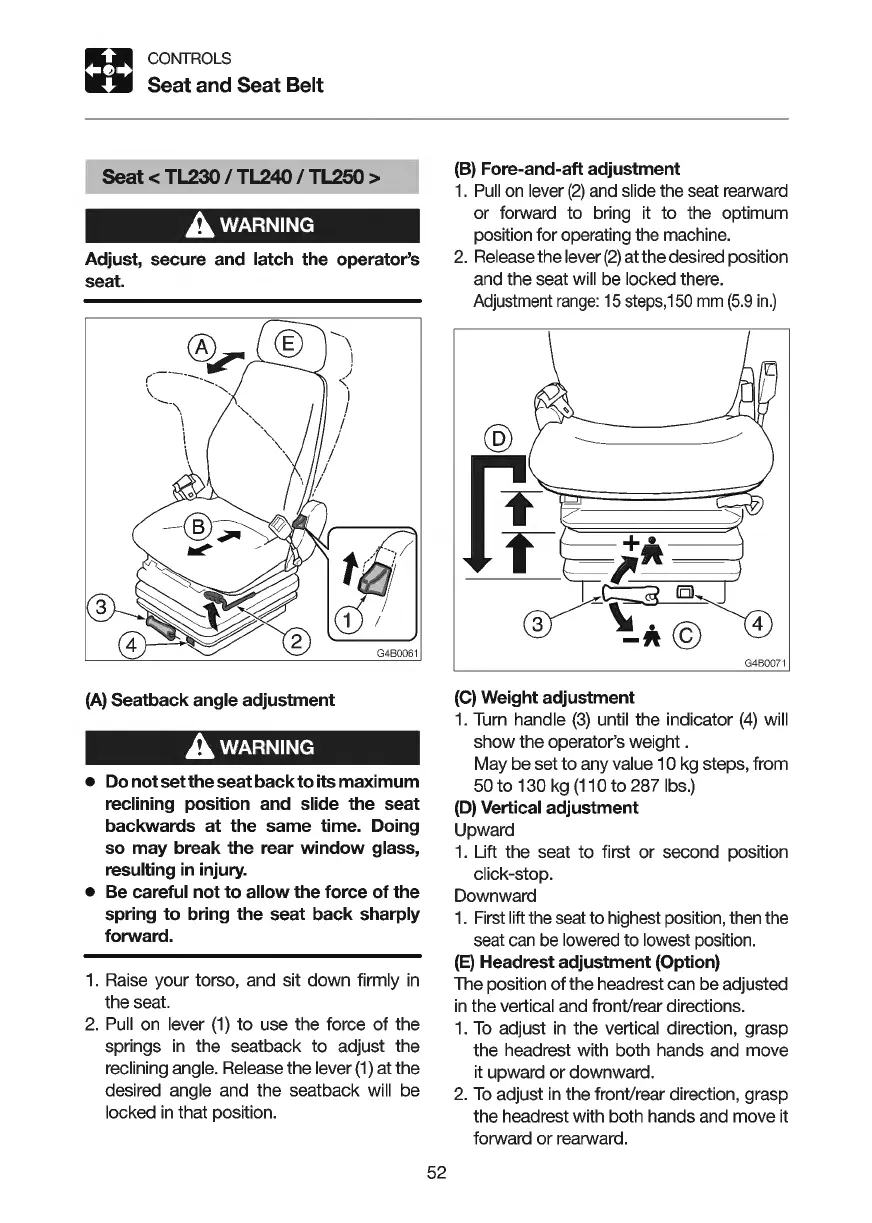

CONTROLS
Seat
and
Seat
Belt
Seat
< TL230 I TL240 I TL250 >
AwARNING
Adjust, secure and latch the operator's
seat.
(A)
Seatback angle adjustment
AwARNING
• Do not setthe seat back to its maximum
reclining position and slide the seat
backwards
at
the same time. Doing
so may break the rear window glass,
resulting
in
injury.
• Be careful not to allow the force of the
spring to bring the seat back sharply
forward.
1.
Raise your torso, and sit
down
firmly
in
the seat.
2.
Pull on lever
(1)
to
use the force
of
the
springs
in
the seatback
to
adjust the
reclining angle. Release the lever
(1)
at the
desired angle and the seatback will be
locked
in
that position.
52
(B)
Fore-and-aft adjustment
1.
Pull
on lever
(2)
and slide the seat rearward
or forward to bring it to the optimum
position for operating the machine.
2.
Release the lever
(2)
atthe
desired position
and the seat will be locked there.
Adjustment
range:
15
steps,
150
mm
(5.9
in.)
G4B0071
(C)
Weight adjustment
1.
Turn handle
(3)
until the indicator
(4)
will
show the operator's weight .
May be set
to
any value 1 0 kg steps, from
50 to 130 kg
(11
O
to
287 lbs.)
(D)
Vertical adjustment
Upward
1.
Lift the seat
to
first
or
second position
click-stop.
Downward
1. First lift the seat to highest position, then the
seat can be lowered to lowest position.
(E)
Headrest adjustment (Option)
The position
of
the headrest can be adjusted
in
the vertical and front/rear directions.
1.
To
adjust
in
the vertical direction, grasp
the headrest with both hands and move
it upward or downward.
2.
To
adjust
in
the front/rear direction, grasp
the headrest with both hands and move it
forward
or
rearward.
