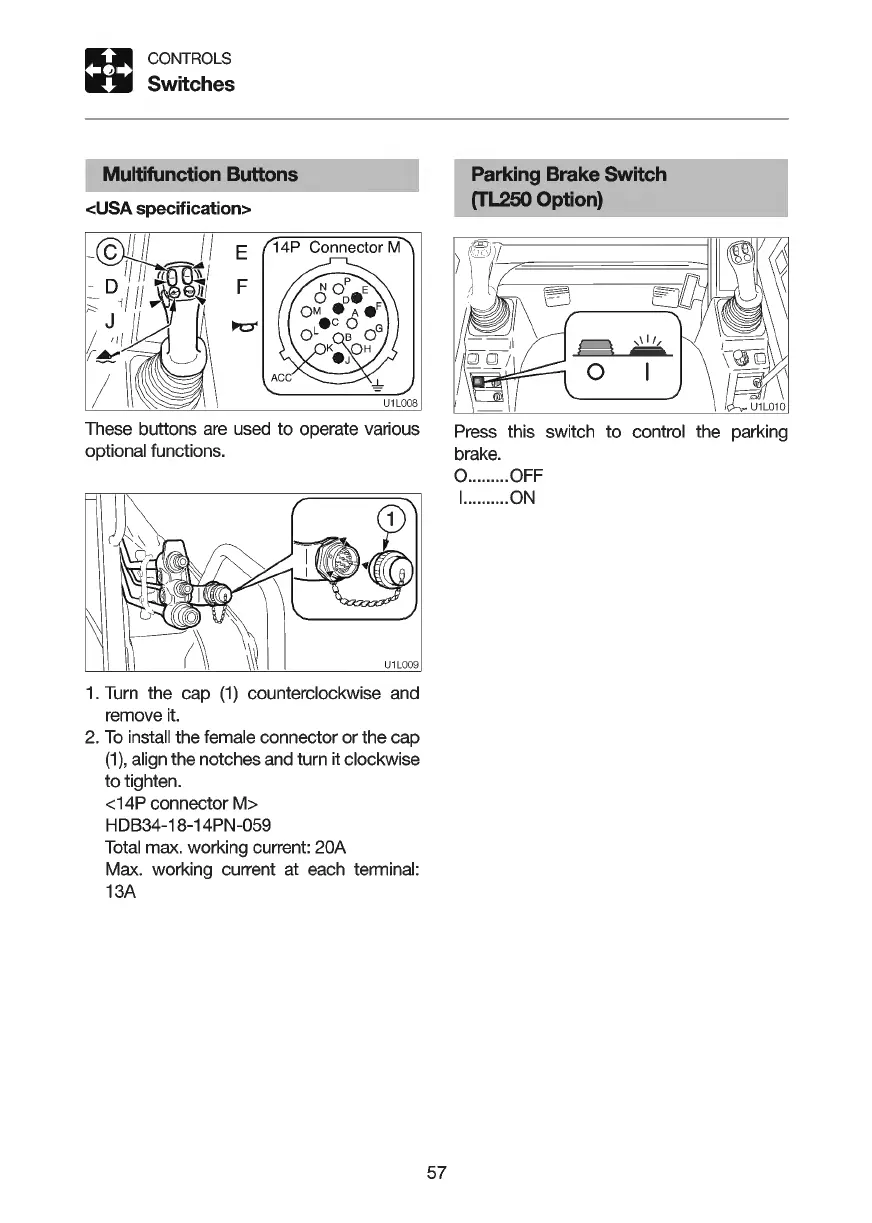

CONTROLS
Switches
Multifunction Buttons
<USA specification>
14P Connector M
These buttons are used
to
operate various
optional functions.
1.
Turn the cap
(1)
counterclockwise and
remove
it.
2.
To
install the female connector
or
the cap
(1
), align the notches and turn it clockwise
to
tighten.
<14P connector M>
HDB34-18-14PN-059
Total max. working current: 20A
Max. working current at each terminal:
13A
57
Parking Brake Switch
(TL250 Option)
Press this switch
to
control the parking
brake.
O
..
...
..
.. OFF
l.
.
........
ON
