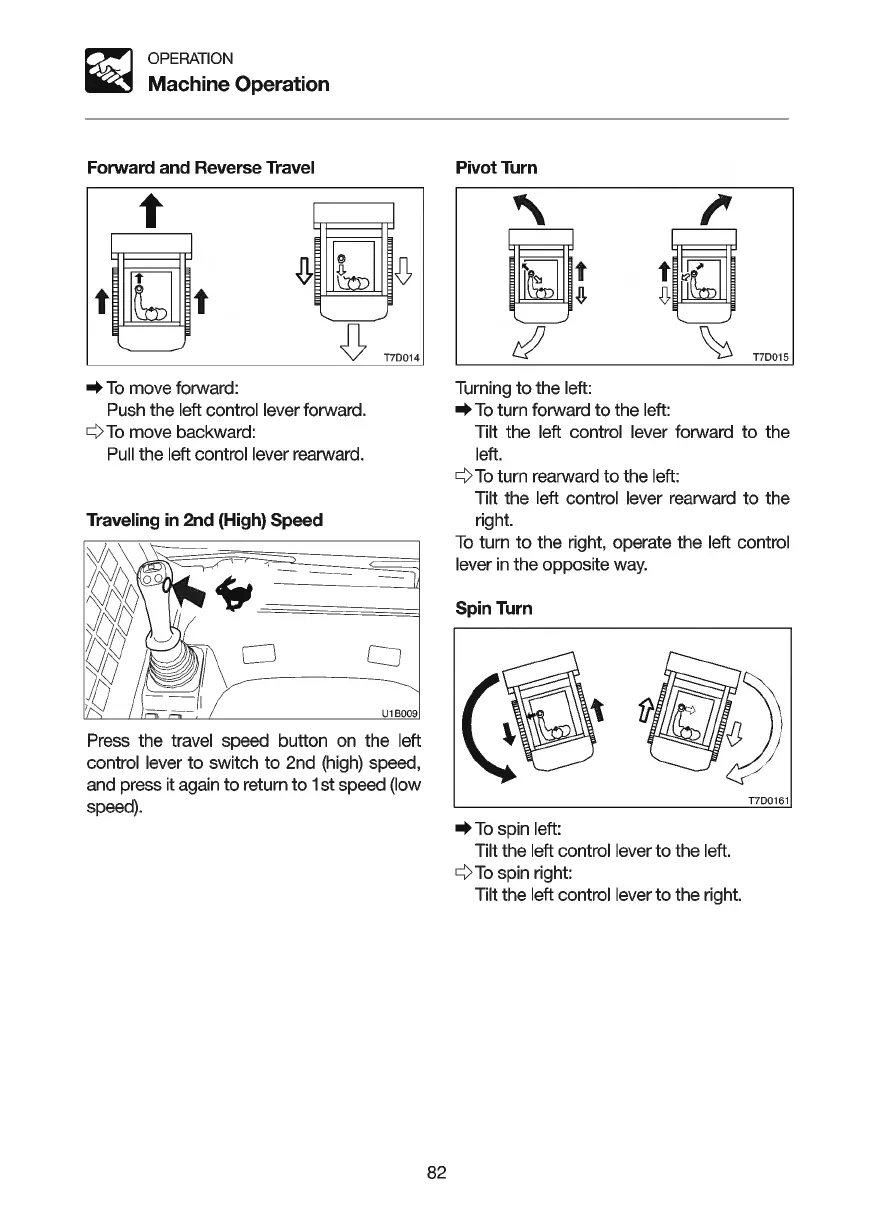

OPERATION
Machine Operation
Forward and Reverse Travel
~~~
0 T7D014
-+To move forward:
Push the left control lever forward.
¢
To
move backward:
Pull
the left control lever rearward.
Traveling
in
2nd (High) Speed
U1B009
Press the travel speed button on the left
control lever to switch to 2nd
(high)
speed,
and press it again to return to 1st speed (low
speed).
82
Pivot Turn
'\
I'
~!
!~
JJ
~
T7D015
Turning to the left:
-+To turn forward to the left:
Tilt the left control lever forward to the
left.
¢
To
turn rearward to the left:
Tilt the left control lever rearward to the
right.
To
turn to the right, operate the left control
lever
in
the opposite
way.
Spin Turn
-+To spin left:
Tilt the left control lever to the left.
¢
To
spin right:
Tilt the left control lever to the right.
T7D0161
