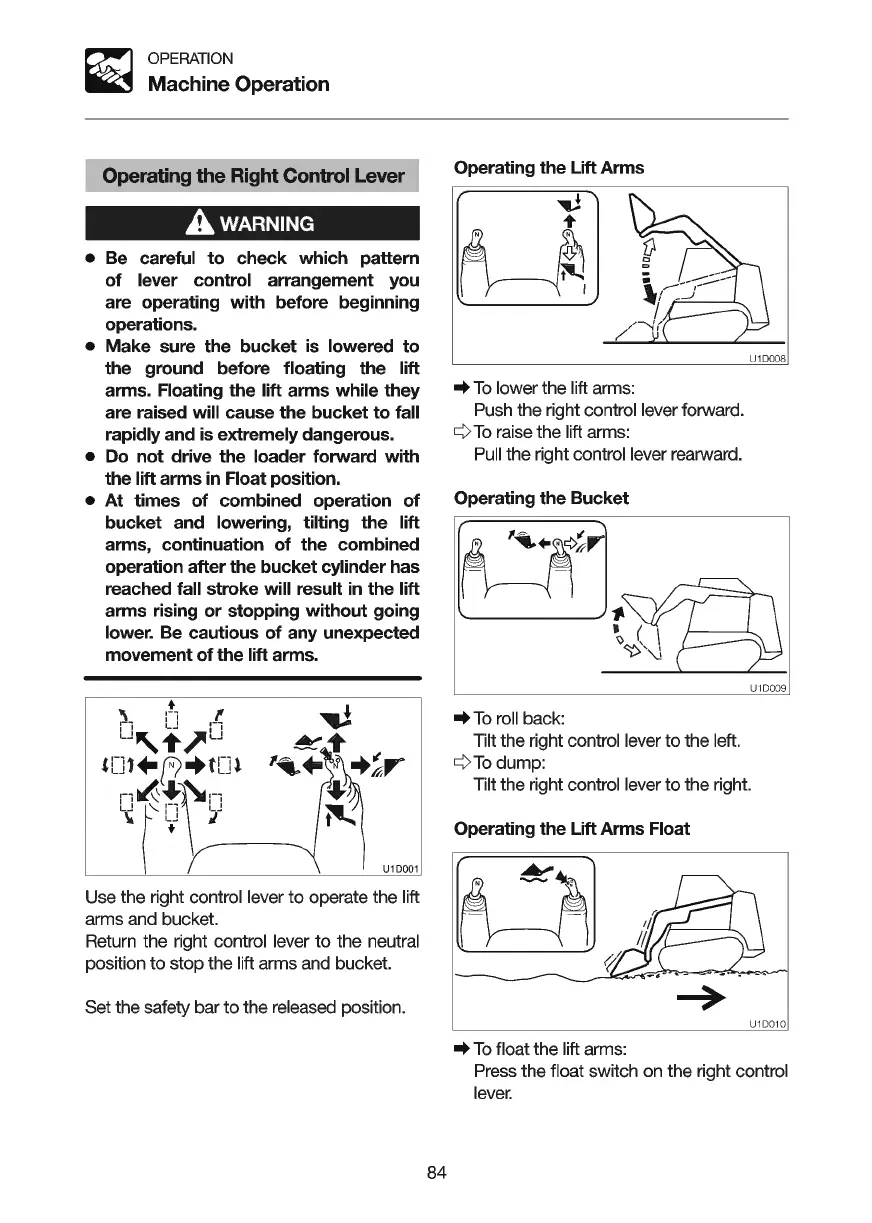

OPERATION
Machine
Operation
Operating the Right Control Lever
AwARNING
• Be careful
to
check
which
pattern
of
lever control arrangement you
are operating
with
before beginning
operations.
• Make sure the
bucket
is lowered
to
the
ground before floating the lift
arms. Floating
the
lift arms while
they
are raised will cause
the
bucket
to
fall
rapidly and is extremely dangerous.
• Do
not
drive the loader forward
with
the
lift arms in Float position.
•
At
times
of
combined operation
of
bucket
and lowering, tilting
the
lift
arms, continuation
of
the
combined
operation after the
bucket
cylinder has
reached fall stroke will result in the lift
arms rising
or
stopping
without
going
lower. Be cautious
of
any unexpected
movement
of
the
lift arms.
Use the right control lever
to
operate the lift
arms and bucket.
Return the right control lever to the neutral
position
to
stop the lift arms and bucket.
Set the safety bar
to
the released position.
84
Operating the Lift Arms
-+To
lower the lift arms:
Push the right control lever forward.
¢
To
raise the lift arms:
Pull the right control lever rearward.
Operating the
Bucket
-+To
roll
back:
Tilt the right control lever
to
the left.
¢
To
dump
:
U1D009
Tilt the right control lever
to
the right.
Operating the Lift Arms Float
U10010
-+To
float the lift arms:
Press the float switch on the right control
lever.
