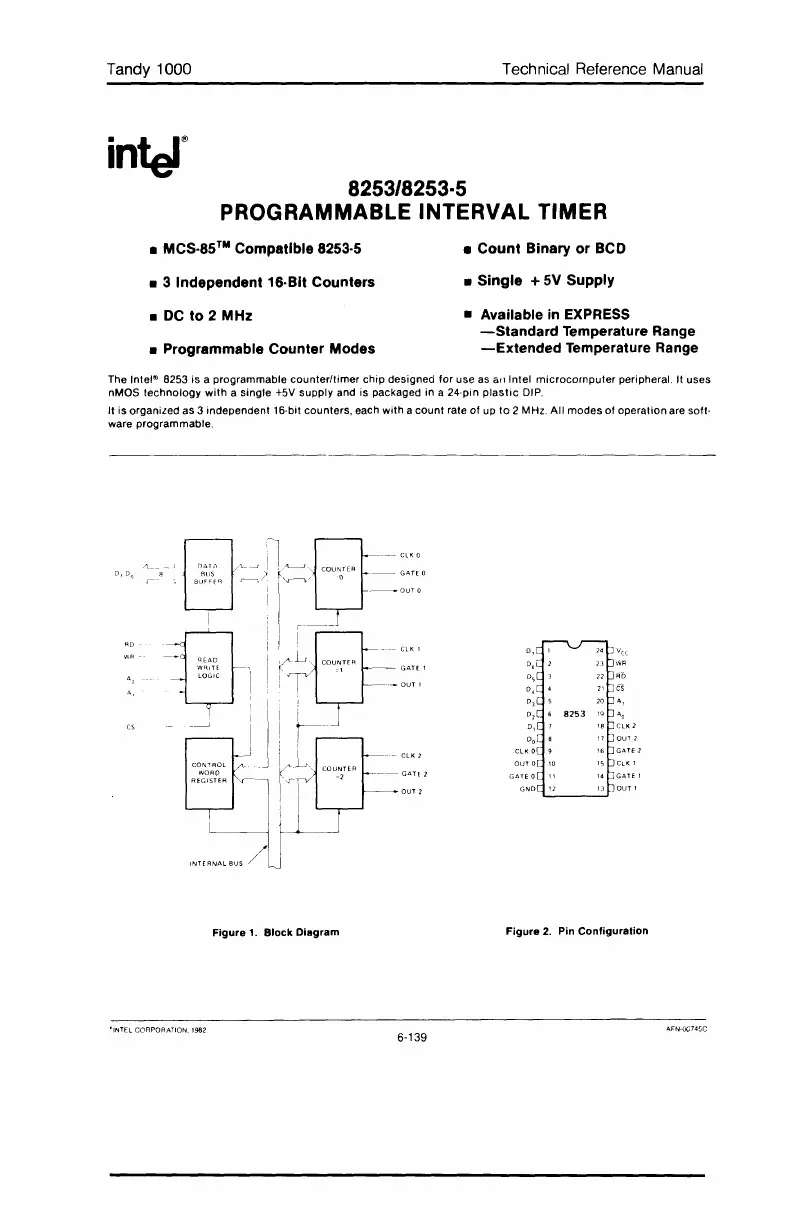

Tandy 1000
Technical Reference Manual
8253/8253·5
PROGRAMMABLE
INTERVAL
TIMER
•
MCS·85™
Compatible 8253·5
• 3 Independent 16·Blt Counters
•
DC
to 2 MHz
• Programmable Counter Modes
• Count Binary or
BCD
• Single + 5V Supply
• Available
in
EXPRESS
-Standard
Temperature Range
-Extended
Temperature Range
The Intel'" 8253 is a
programmable
counter/timer
chip
designed
for
use as all
Intel
microcomputer
peripheral. It uses
nMOS
technology
with
a
single
+5V
supply
and is packaged in a 24-pin
plastic
DIP.
It
is organized as 3
independent
16-bit
counters,
each
with
a
count
rate
of
up
to
2 MHz.
All
modes
of
operation
are soft-
ware
programmable.
Figure
1.
Block Diagram
Figure
2.
Pin Configuration
"INTEL CORPORATION, 1982
6-139
A,FN-OC74~C
