Tandy 1000
Technical Reference Manual

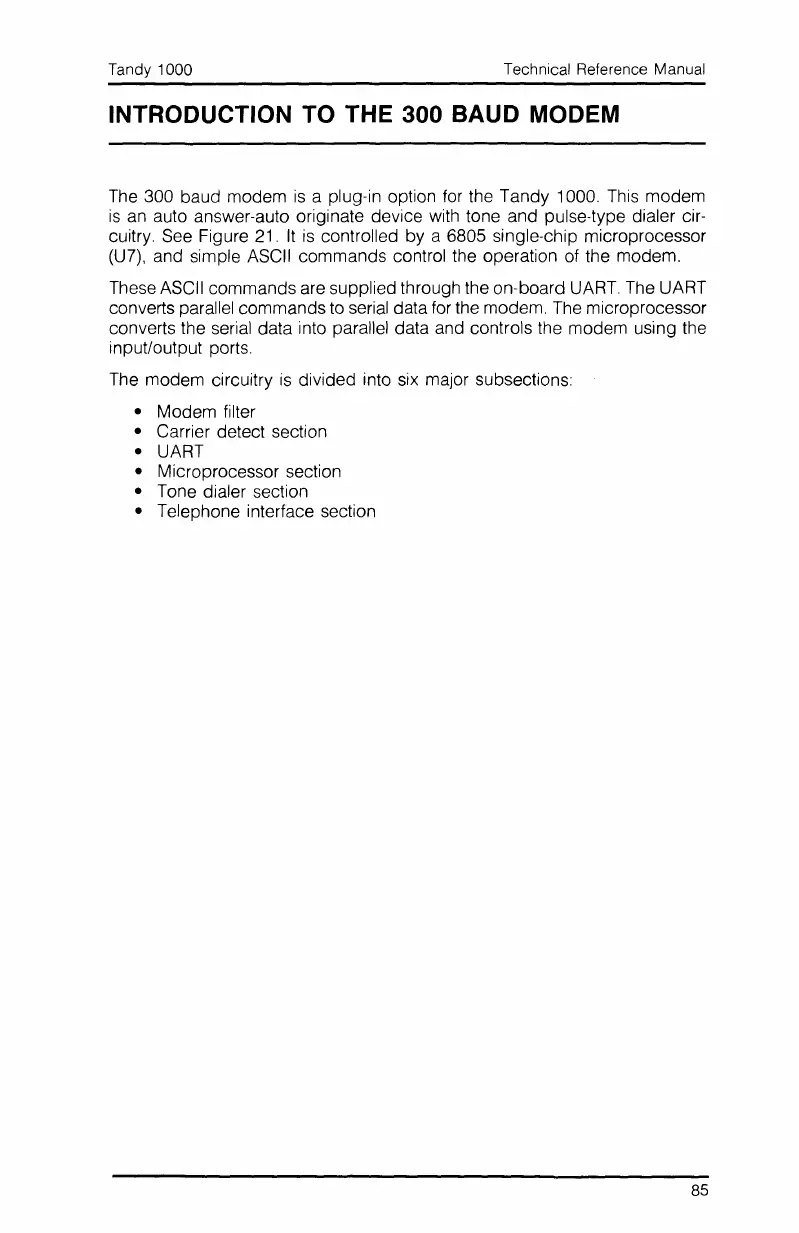

INTRODUCTION TO THE 300 BAUD MODEM
The
300 baud modem
is
a plug-in option for the Tandy 1000.
This
modem
is
an
auto answer-auto originate device with tone and pulse-type dialer cir-
cuitry. See Figure 21.
It
is
controlled by a 6805 single-chip microprocessor
(U7), and simple ASCII commands control the operation
of
the modem.
These
ASCII
commands are supplied through the on-board
UART.
The
UART
converts parallel commands to serial data for the modem. The microprocessor
converts the serial data into parallel data and controls the modem using the
input/output ports.
The
modem circuitry
is
divided into
six
major subsections:
• Modem filter
• Carrier detect section
• UART
• Microprocessor section
• Tone dialer section
• Telephone interface section
