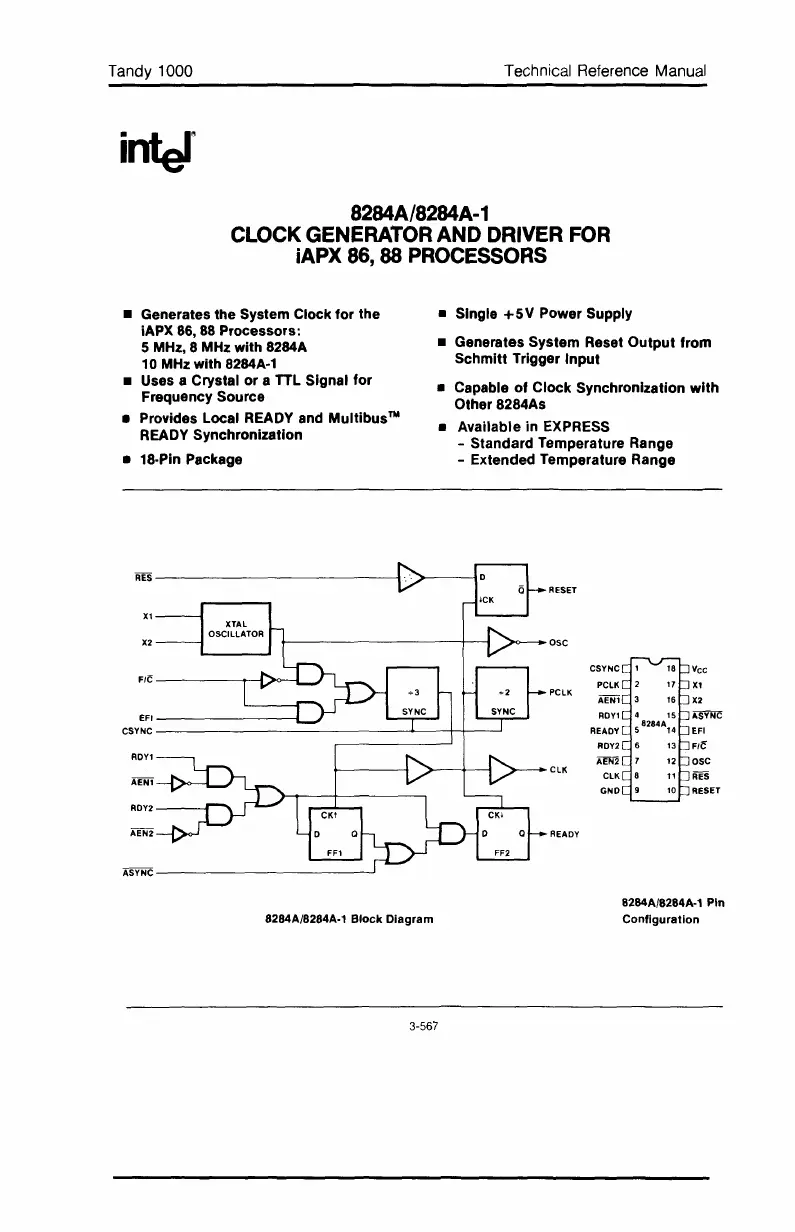

Tandy 1000
Technical Reference Manual
8284A/8284A-1
CLOCK GENERATOR
AND
DRIVER FOR
iAPX 86, 88 PROCESSORS
• Generates the System Clock
for
the
iAPX
86,
88
Processors:
5
MHz,
8 MHz with 8284A
10
MHz with
8284A·1
• Uses a Crystal
or
a TTL Signal
for
Frequency Source
• Provides Local READY and
Multibus
TM
READY Synchronization
• 18·Pin Package
• Single +5V Power Supply
• Generates System Reset
Output
from
Schmitt Trigger Input
• Capable
of
Clock Synchronization
with
Other 8284As
• Available in EXPRESS
- Standard Temperature Range
- Extended Temperature Range
RESET
OSC
CSYNC 1
PClK
AENl
RDYl
READY
RDY2
6
AEN2
ClK
GND
READY
elK
PClK
ASYNC--------------.J
RDYl
Xl
RES---------------\
X2
EFI
----------1----1
CSYNC
4-_-+-+-----'
8284A/8284A-1
Block
Diagram
8284A/8284A-1 Pin
Configuration
3-567
