Tandy 1000 Technical Reference Manual

Tandy 1000

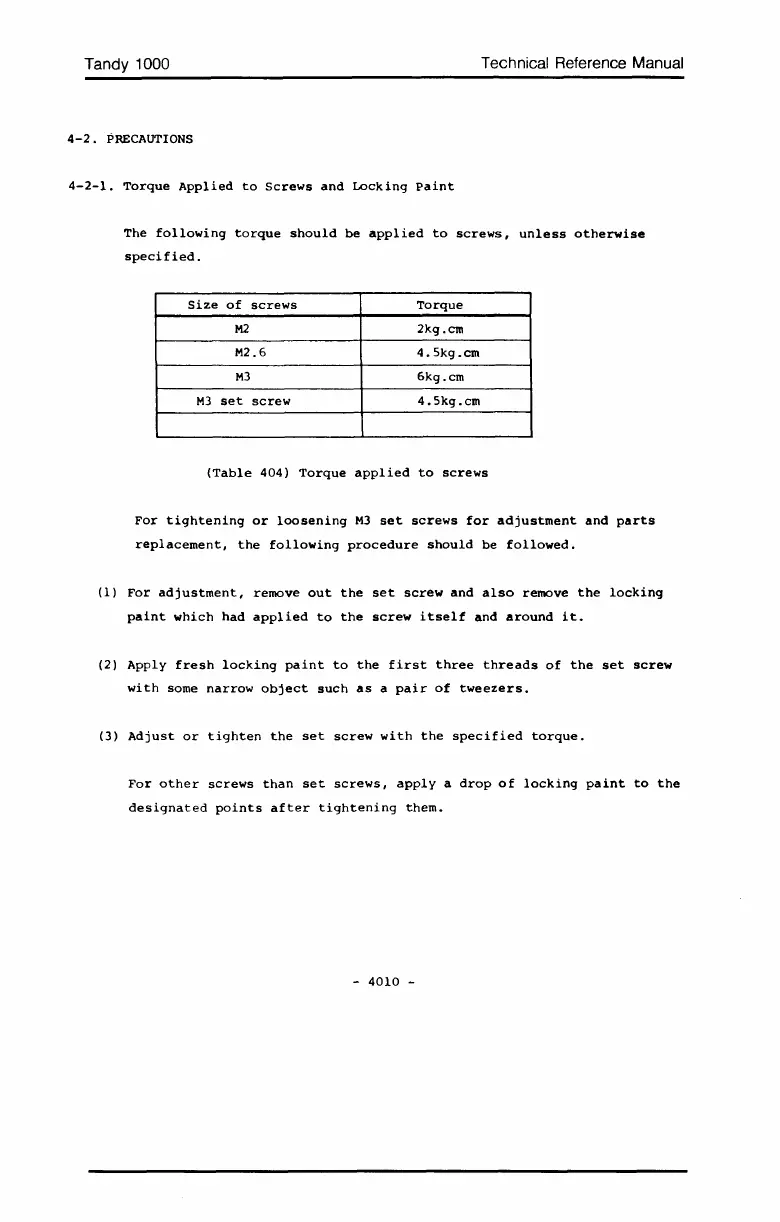

4-2. PRECAUTIONS
4-2-1. Torque Applied to Screws and Locking Paint
Technical Reference Manual
The following torque should be applied to screws, unless otherwise
specified.
Size
of screws Torque
M2 2kg.cm
M2.6
4.5kg.cm
M3 6kg.cm
M3
set screw 4.5kg.cm
(Table 404) Torque applied to screws
For tightening or loosening M3 set screws for adjustment and parts
replacement, the following procedure should be followed.
(1) For adjustment, remove out the set screw and also remove the locking
paint which had applied to the screw itself and around it.
(2) Apply fresh locking paint to the first three threads of the set screw
with some narrow object such as a pair of tweezers.
(3) Adjust or tighten the set screw with the specified torque.
For other screws than set screws, apply a drop of locking paint to the
designated points after tightening them.
- 4010 -

Tandy 1000 Specifications

General

Processor	Intel 8088
Processor Speed	4.77 MHz
RAM	128 KB (expandable to 640 KB)
Operating System	MS-DOS 2.11
Manufacturer	Tandy Corporation
Release Year	1984
Storage	Single or double 5.25" floppy disk drive (360 KB), optional hard drive
Sound	Tandy 3-voice sound
Ports	Parallel, Serial
Graphics	CGA (Color Graphics Adapter)
Graphics Modes	320x200, 640x200
