Tandy 1000
4-2-2.
Handling
of
connectors
(1)
Types
of
connectors
Technical Reference Manual
The
following
connectors
are
used
for
the
FDD.
(a)
Jl:
Interface
connector
(b)
J2:
Power
connector
(c)
J4:
Track
00
connector
(d)
J5:
Front
OPT
connector
(e)
J6:
Stepping
motor
connector
(
f)
J7:
Spindle
motor
(DO
motor
Ass'y)
connector
(g)
J9:
Head
connector
J7
>-+111----
J2
I_---Jl
J5

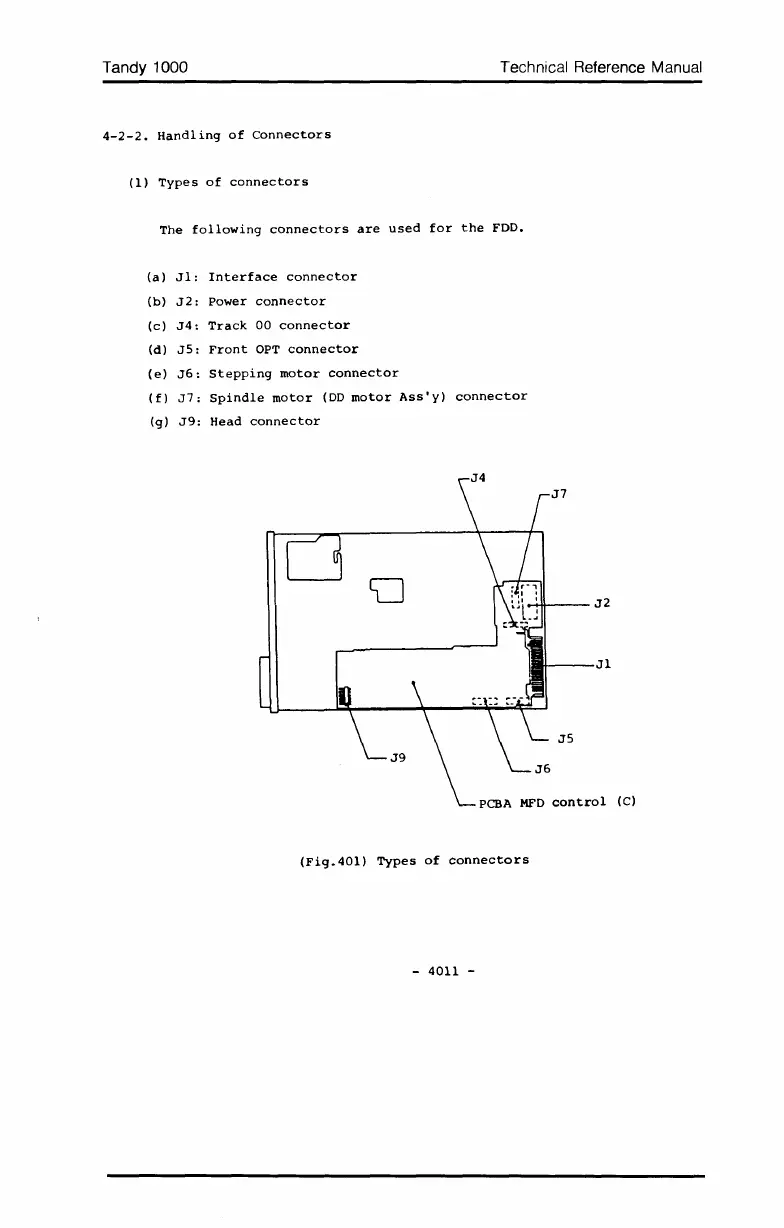

(Fig.40l)
Types
of
connectors
-
4011
-
(C)
