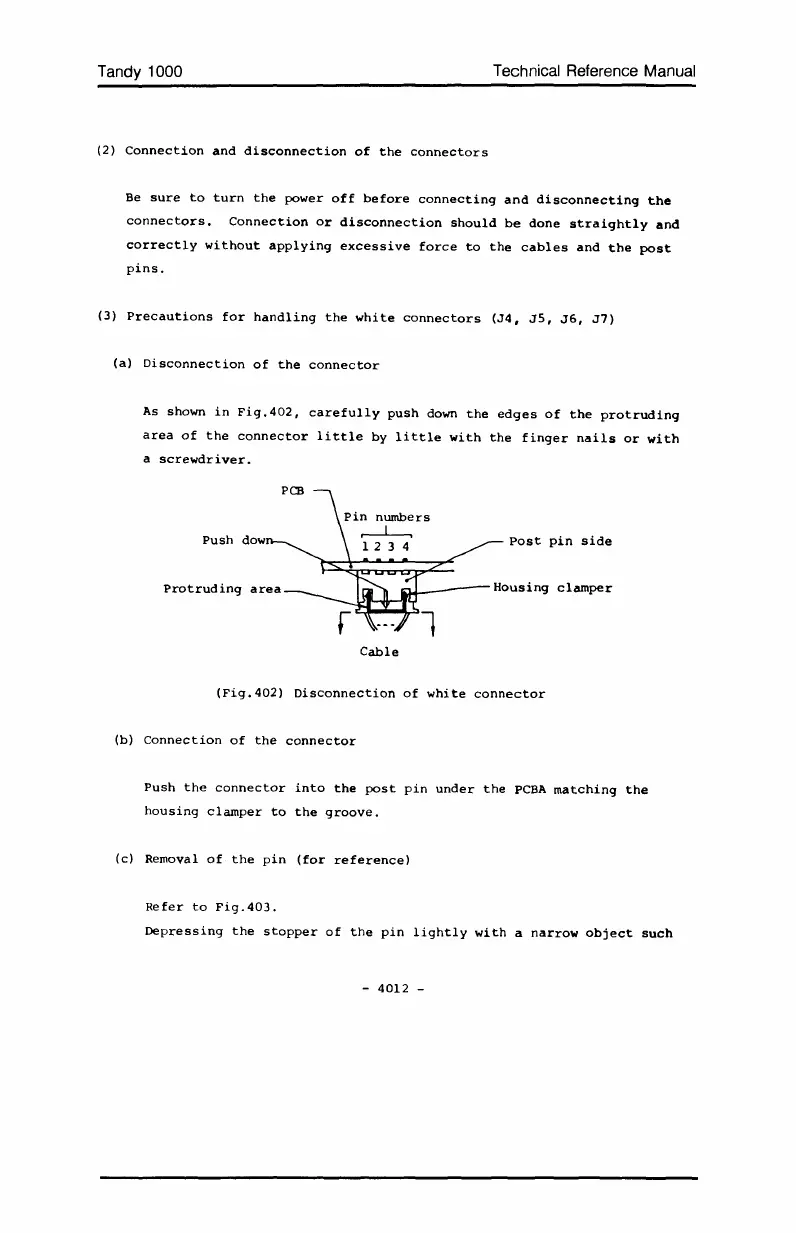

Tandy 1000
(2)
Connection
and
disconnection
of
the
connectors
Technical Reference Manual
Be
sure
to
turn
the
power
off
before
connecting
and
disconnecting
the
connectors.
Connection
or
disconnection
should
be
done
straightly
and
correctly
without
applying
excessive
force
to
the
cables
and
the
post
pins.
(3)
Precautions
for
handling
the
white
connectors
(J4,
JS,
J6,
J7)
(a)
Disconnection
of
the
connector
As
shown
in
Fig.402,
carefully
push
down
the
edges
of
the
protruding
area
of
the
connector
little
by
little
with
the
finger
nails
or
with
a
screwdriver.
Post
pin
side
Housing
clamper
Cable
(Fig.402)
Disconnection
of
white
connector
(b)
Connection
of
the
connector
Push
the
connector
into
the
post
pin
under
the
PCBA
matching
the
housing
clamper
to
the
groove.
(c)
Removal
of
the
pin
(for
reference)
Refer
to
Fig.403.
Depressing
the
stopper
of
the
pin
lightly
with
a
narrow
object
such
-
4012
-
