Tandy 1000 Technical Reference Manual

Tandy 1000
Technical Reference Manual
as a pair of tweezers, pull the cable in the direction indicated by
the arrow.
Clamp securely ~Strpper (push)
Cable I []
--
~ Contact area
Housing clamper

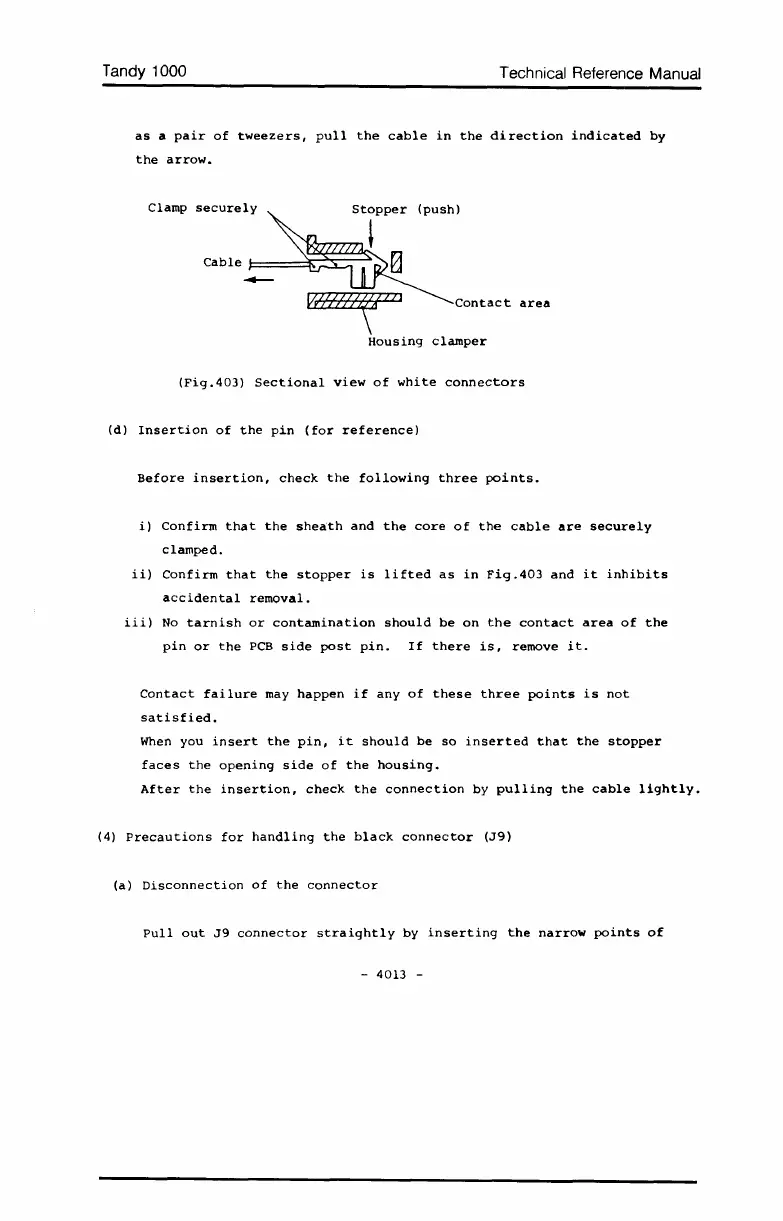

(Fig.403) Sectional view of white connectors
(d) Insertion of the pin (for reference)
Before insertion, check the following three points.
i) Confirm that the sheath and the core of the cable are securely
clamped.
ii) Confirm that the stopper is lifted as in Fig.403 and it inhibits
accidental removal.
iii) No tarnish or contamination should be on the contact area of the
pin or the PCB side post pin. If there is, remove it.
Contact failure may happen if any of these three points is not
satisfied.
When you insert the pin, it should be so inserted that the stopper
faces the opening side of the housing.
After the insertion, check the connection by pulling the cable lightly.
(4) Precautions for handling the black connector (J9)
(a) Disconnection of the connector
Pullout J9 connector straightly by inserting the narrow points of
- 4013 -

Tandy 1000 Specifications

General

Processor	Intel 8088
Processor Speed	4.77 MHz
RAM	128 KB (expandable to 640 KB)
Operating System	MS-DOS 2.11
Manufacturer	Tandy Corporation
Release Year	1984
Storage	Single or double 5.25" floppy disk drive (360 KB), optional hard drive
Sound	Tandy 3-voice sound
Ports	Parallel, Serial
Graphics	CGA (Color Graphics Adapter)
Graphics Modes	320x200, 640x200
