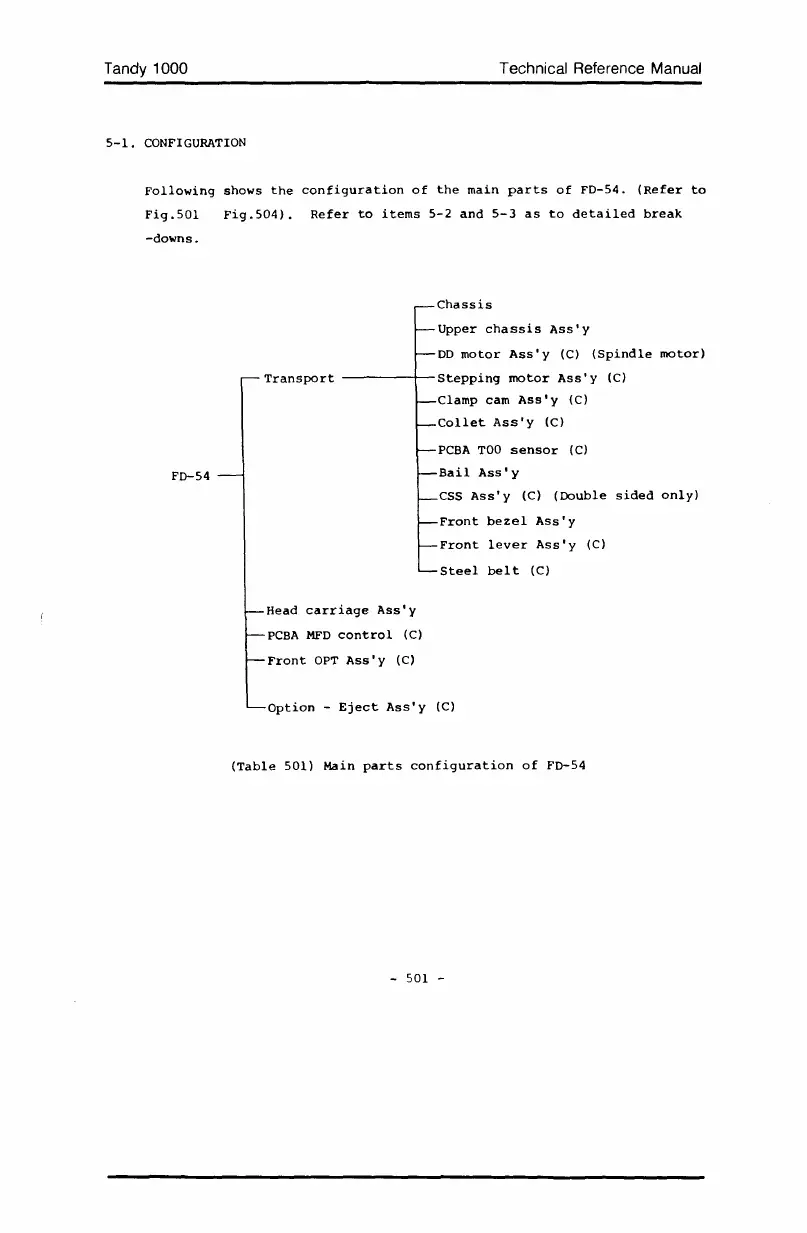

5-1. CONFIGURATION
Technical Reference Manual
Following shows the configuration of the main parts of FO-54. (Refer to
Fig.50l Fig.504). Refer to items 5-2 and 5-3 as to detailed break
-downs.
FD-54
Chassis
Upper chassis ASs'y
DO motor Ass'y (C) (Spindle motor)
Transport -----+--Stepping motor ASs'y (C)
Clamp cam Ass'y (C)
Collet Ass'y (C)
PCBA TOO sensor (C)
Bail Ass' y
CSS
Ass'y (C) (Double sided only)
Front bezel Ass'y
Front lever Ass'y (C)
Steel belt (C)
Head carriage ASs'y
PCB A MFD control (C)
Front OPT Ass'y (C)
Option - Eject Ass'y (C)
(Table 501) Main parts configuration of FO-54
- 501 -

Tandy 1000 Specifications

General

Processor	Intel 8088
Processor Speed	4.77 MHz
RAM	128 KB (expandable to 640 KB)
Operating System	MS-DOS 2.11
Manufacturer	Tandy Corporation
Release Year	1984
Storage	Single or double 5.25" floppy disk drive (360 KB), optional hard drive
Sound	Tandy 3-voice sound
Ports	Parallel, Serial
Graphics	CGA (Color Graphics Adapter)
Graphics Modes	320x200, 640x200
