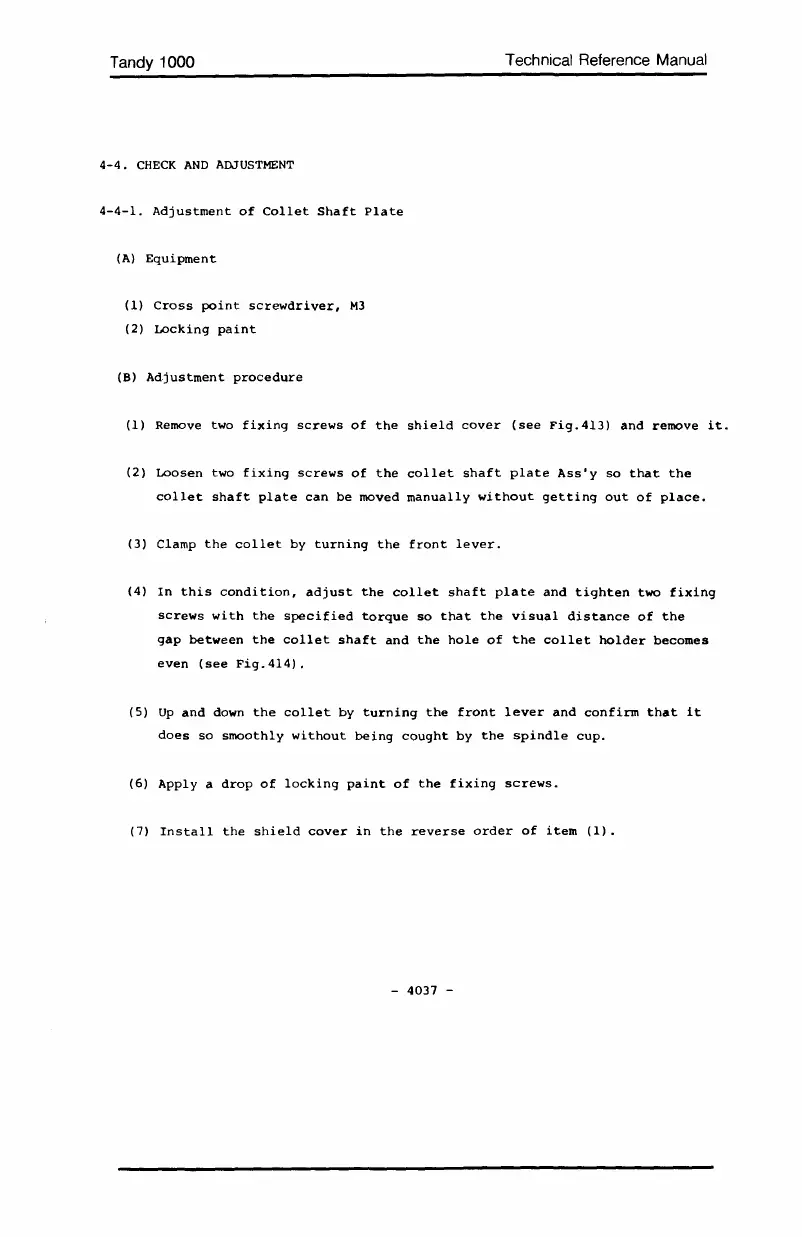

Tandy 1000

4-4.

CHECK

AND

ADJUSTMENT

4-4-1.

Adjustment

of

Collet

Shaft

Plate

(A)

Equipment

(1)

Cross

point

screwdriver,

M3

(2)

Locking

paint

(B)

Adjustment

procedure

Technical Reference Manual

(1) Remove two

fixing

screws

of

the

shield

cover

(see

Fig.413)

and

remove

it.

(2)

Loosen

two

fixing

screws

of

the

collet

shaft

plate

Ass'y

so

that

the

collet

shaft

plate

can

be

moved

manually

without

getting

out

of

place.

(3) Clamp

the

collet

by

turning

the

front

lever.

(4)

In

this

condition,

adjust

the

collet

shaft

plate

and

tighten

two

fixing

screws

with

the

specified

torque

so

that

the

visual

distance

of

the

gap

between

the

collet

shaft

and

the

hole

of

the

collet

holder

becomes

even

(see

Fig.4l4).

(5)

Up

and

down

the

collet

by

turning

the

front

lever

and

confirm

that

it

does

so

smoothly

without

being

cought

by

the

spindle

cup.

(6)

Apply

a

drop

of

locking

paint

of

the

fixing

screws.

(7)

Install

the

shield

cover

in

the

reverse

order

of

item

(1).

- 4037 -
