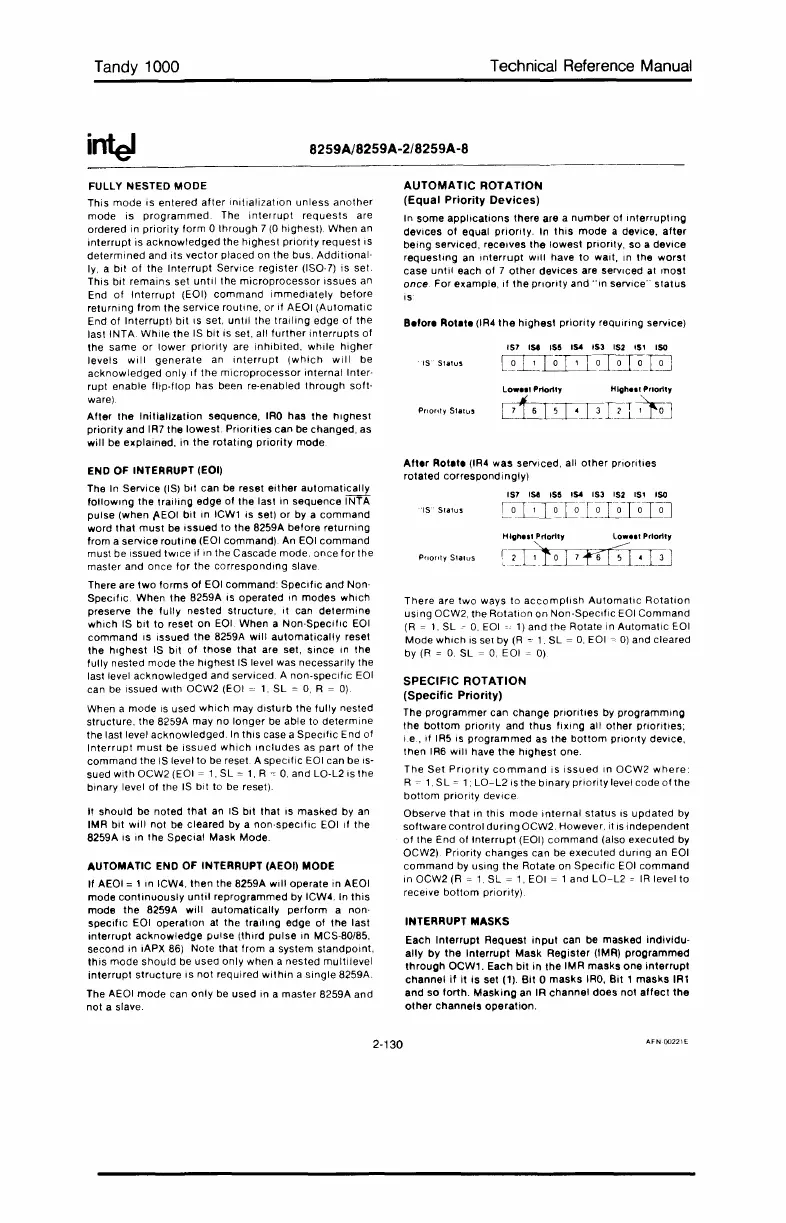

Tandy 1000
Technical Reference Manual
intel
8259A/8259A-2/8259A-8
B.lor.
Rotlt.
(IA4
the
highest
priority
requrrmg service)
AUTOMATIC
ROTATION
(Equal
Priority
Devices)
In
some
applications
there are a
number
01
Interrupting
devices
01
equal priorrty. In
this
mode
a device,
after
being
serviced, rece,ves
the
lowest
priorrty, so a
device
requestmg
an
Interrupt
Will have
to
walt,
In
the
worst
case
until
each
01
7
other
devices
are serviced at
most
once For example, If
the
priority
and
"In
service"
status
IS
FULLY NESTED
MODE
This
mode
is
entered
after
initialization
unless
another
mode
is
programmed.
The
interrupt
requests
are
ordered in
priority
form 0
through
7
(0
highest)
When an
interrupt
is
acknowledged
the
highest
priorrty
request
is
determined
and
its
vector
placed
on the bus.
Additional·
Iy, a
bit
of
the
Interrupt
Service
register
(ISO-7)
is
set
This
bit
remains
set
until
the
microprocessor
issues
an
End
of
Interrupt
(EOI)
command
immediately
before
returning
from the
service
routme, or if AEOI
(Automatic
End
of
Interrupt)
bit
IS
set,
until
the
trailing
edge
of
the
last INTA.
While
the
IS
bit
is set, all
further
interrupts
of
the
same
or
lower
priority
are
inhibited,
while
higher
levels
will
generate
an
interrupt
(which
will
be
acknowledged
only"
the
microprocessor
internal
Inter-
rupt
enable
flip-flop
has been re-enabled
through
soft-
ware)
After
the
Initialization
sequence,
lAO
has
the
hlgnest
priority
and IA7
the
lowest
Priorities
can be changed, as
will
be
explained,
in
the
rotating
priority
mode
IS'·
SlaluS
Priority
Sla1U5
'S7
lSI
IS5
I~
IS3
IS2
lSI
ISO
COE'E.ElOTiIYT~J
Low
••
' Pnority
HIQh."
Priority
LihL~l_~Elir~
High
••
, Prtortty
Low.,'
Prlorily
Lz_l~~f!J1l~_IiJ
'IS"
Sialus
PriorIty
SlaluS
Aft.r Rotlt.
(IA4
was
serviced, all
other
prrorrtles
rotated
correspondingly)
IS7
lSI
'S5
,~
IS3
IS2
lSI
ISO
[01.-'.T~[aI~D.I~
INTERRUPT
MASKS
Each
Interrupt
Aequest
input
can be masked
individu-
ally
by
the
Interrupt
Mask
Aegister
(IMA)
programmed
through
OeW1.
Each
bit
in
the
IMA
masks
one
interrupt
channel
if
it
is
set (1).
Bit
0
masks
lAO.
Bit
1
masks
IA1
and
so
forth.
Masking
an
IA
channel
does
not
affect
the
other
channels
operation.
There
are
two
ways
to
accomplish
Automatic
Rotation
using
OCW2, the
Rotation
on
Non-SpecifiC
EOI
Command
(R
~
1,
SL.
0,
EOI
-
1)
and
the
Rotate in
Automatic
EOI
Mode
which
is set by
(R
=
1.
SL
~
0,
EOI =
0)
and cleared
by
(R
=
0,
SL
~
0,
EOI =
0)
SPECIFIC
ROTATION
(Specific
Priority)
The
programmer
can change prrorrtles by
programmmg
the
bottom
priorrty and
thus
fixmg
all
other
prrorrtles;
i.e,
If IA5 is
programmed
as the
bottom
prrorrty deVice,
then IA6
will
have
the
highest
one.
The
Set
Pflority
command
is
issued
In OCW2
where:
R
~
1,
SL
=
1:
LO-L2
is the
binary
priority
level code
olthe
bottom
priorrty deVice
Observe
that
In
this
mode
internal
status
IS
updated
by
software
control
during
OCW2. However, it
is
independent
of
the End of
Interrupt
(EOI)
command
(also executed by
OCW2).
Priority
changes
can be
executed
durrng an
EOI
command
by uSing
the
Rotate on
Specific
EOI
command
in OCW2
(R
=
1,
SL
~
1,
EOI
~
1 and
LO-L2
=
IR
level
to
receive
bottom
priority)
END
OF
INTERRUPT (EOI)
The
In
Service (IS)
bit
can be reset
either
automatically
follOWing
the
trailing
edge
of
the
last in
sequence
INTA
pulse
(when AEOI
bit
In ICW1
is
set) or by a
command
word that
must
be
issued
to
the
8259A
before
returning
from a
service
routine
(EOI command). An EOI
command
must be Issued tWice if
In
the Cascade mode,
once
for
the
master and once for
the
corresponding
slave
There are
two
forms
of
EOI
command:
Specific
and Non-
Specific
When
the
8259A
IS
operated
In
modes
which
preserve
the
fUlly
nested
structure,
it
can
determine
which
IS
bit
to
reset
on
EOI
When a
Non-Specific
EOI
command
IS
issued
the
8259A
will
automatically
reset
the
highest
IS
bit
of
those
that
are set,
since
In
the
fUlly nested mode
the
highest
IS
level was necessarily the
last level
acknowledged
and serviced. A
non-specific
EOI
can be issued With OCW2 (EOI
~
1,
SL =
0,
R
~
0)
When a
mode
IS
used
which
may
disturb
the
fully
nested
structure,
the
8259A may
no
longer
be able to
determine
the
last level
acknowledged.
In
thiS case a
Specific
End of
Interrupt
must
be
issued
which
Includes
as
part
of
the
command
the
IS
level
to
be
reset
A
specific
EOI can be
IS-
sued
with
OCW2 (EOI
~
1,
SL =
1,
R =
O.
and LO-L2 is
the
binary level of the
IS
bit
to be reset)
It
should
be
noted
that
an IS
bit
that
IS
masked
by an
IMA
bit
will
not be cleared by a non-speCifiC EOI
II
the
8259A is
In
the
Special
Mask
Mode
AUTOMATIC END OF INTERRUPT (AEOI) MODE
If AEOI = 1
In
ICW4,
then
the 8259A Will
operate
in AEOI
mode
continuously
until
reprogrammed
by ICW4. In
this
mode
the
8259A
will
automatically
perform
a non-
specific
EOI
operation
at
the
trailing
edge of
the
last
interrupt
acknowledge
pulse
(third
pulse
In
MCS-80i85,
second
in iAPX 86) Note that
from
a system
standpoint,
this
mode
should
be used
only
when a
nested
multilevel
interrupt
structure
is
not
required
within
a
single
8259A.
The AEOI
mode
can
only
be used in a
master
8259A and
not a slave
2-130
